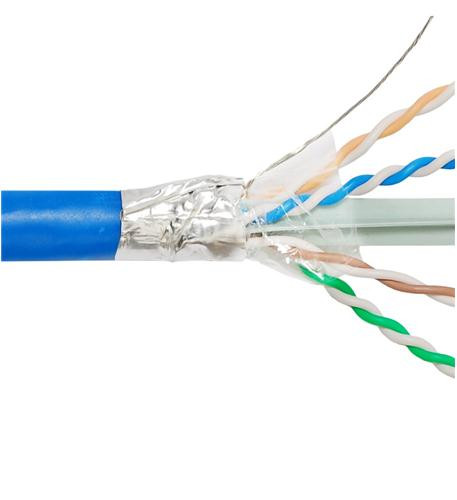

ICC Cat.6a FTP Cable ICCABP6FBL

This item is brand-new, factory sealed.

ICC CAT 6A 10Gig FTP shielded cable provides transmission performance beyond 650MHz and Alien Crosstalk (AXT) requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Performance Limited Warranty when installed by ICC Certified Elite installers (conditions apply).

Feature

INDUSTRY STANDARDS

? ETL Verified to TIA-568-C.2
? UL Type CMR for non-plenum
? UL Type CMP for plenum
? FT4
? UL 444

APPLICATIONS

? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 622Mbps ATM
? Conductor: Solid Bare Copper
? Insulation: FEP
? Jacket: Flame Retardant PVC
? Mylar shielding for EMI (electro magnetic interference) protection
? Drain Wire for grounding to CAT 6A FTP Shielded connector (IC1078S6A0)<
? Cable spine separator X
? Component: 4 twisted pair
? Outer Dia.(in): 0.34"
? Sequential footage marking for easy usage tracking.
? Packaged on a reel (Size: 17.3W X 13.0H
? Weight: 50.2 LBS
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
