ICC

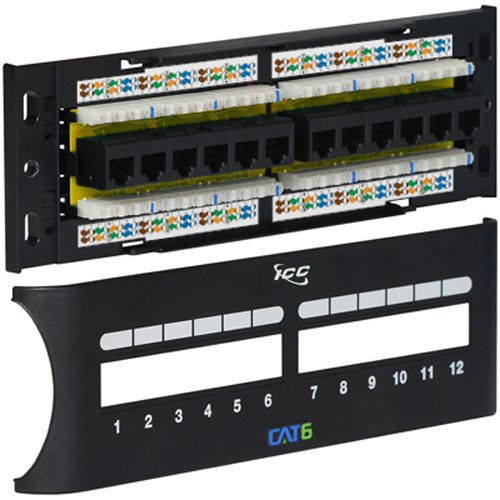

ICC CAT6 Zero-U Front Access Patch Panel with 12 Ports (icmpp12f6e)

(No reviews yet) Write a Review
SKU:
18247013
MPN:
icmpp12f6e
Availability:
Out of stock
Stock Update:
01/23/2026 07:53:52 PM PST

Out of stock

Stock Update:
01/23/2026 07:53:52 PM PST

Description

This item is brand-new, factory sealed.

  • Wall mounted CAT 6 component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth
  • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
  • Exceeds TIA-568-C.2 Category 6 connecting hardware requirements
  • Two-piece design; patch panel with removable cover
  • Front access 110-Type IDC terminations
  • Designed to mount on walls and distribution racks
  • Tested to exceed TIA-568 performance standards
  • Jacks have 50 micro-inch gold plated contacts
  • Engineered to provide 110 IDC termination reducing installation time
  • Used with standard CAT 6 patch cords, 110 punch down tool, and network distribution racks
  • Includes installation instructions

    Package Contents:
    • CAT6 Zero-U Front Access Patch Panel with 12 Ports
    • 4 x 6" Cable Tie
    • 2 x 12-24 x 3/4" Pan Head, Pilot Point Machine Screw
    • 1 Sheet, Installation Instructions

    Features

    Package Contents:
    • CAT6 Zero-U Front Access Patch Panel with 12 Ports
    • 4 x 6" Cable Tie
    • 2 x 12-24 x 3/4" Pan Head, Pilot Point Machine Screw
    • 1 Sheet, Installation Instructions



    Certifications & Standards:
    • ANSI/TIA-568-C
    • TIA-568A
    • TIA-568B
    • UL 94V-0



    TAA Compliant:
    Yes



    Additional Information:

    Material:

    Jack Housing: High Impact, Flame Retardant Plastic, UL 94V-0
    Spring Wire: Phosphor Bronze
    110 Connector: Phosphor Bronze Alloy with 100 microinch Alloy
    Gold Rating: 50 micro inch gold over 100 micro inches of nickel
    Surface Finish: Black Powder Coat

    Mechanical:

    Force: 100 grams min/contact
    Temperature Range: -40 degrees C to 70 degrees C
    Plug Retention Jack: 50N (11 lbs SQ)
    IDC Wire Gauge: 22-24 AWG

    Electrical:

    Current Rating: 1.5 AMP DC
    Contact Resistance: 2.5 milliohms max




    Country of Origin:
    Taiwan



    Specs

    Physical Characteristics
    Product Material
    • Gold
    • Phosphor Bronze
    • ABS Plastic
    Form Factor
    • Wall Mountable
    • Rack-mountable
    Product ColorBlack Powder Coat
    Compatible Rack Unit1U
    Warranty
    Limited Warranty3 Year
    Interfaces/Ports
    Total Number of Ports12
    Number of Network (RJ-45) Ports12
    General Information
    Brand NameICC
    Manufacturer Website Addresshttp://www.icc.com
    Marketing InformationICC's 12-Port Category 5e Front Access Patch Panels are designed to be wall and rack mountable. These patch panels exceed TIA-568-C.2 performance standards. Also, the low profile space saving design is ideal for smaller installations with front access to RJ-45 ports and 110-Type connectors that allows quick moves, adds, and changes (MACs).
    Features
    Wall mounted CAT6 component rated patch panel.
    Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
    Enhanced crosstalk cancellation reduces return loss (AXT).
    Exceeds TIA-568-C.2 Category 6 connecting hardware requirements.
    Engineered to provide 110 IDC termination reducing installation time.
    Used with CAT6 patch cords, 110 punch down tool, and distribution racks.
    Includes installation instructions.
    Product TypeNetwork Patch Panel
    Product NameCAT6 Zero-U Front Access Patch Panel with 12 Ports
    ManufacturerICC
    Manufacturer Part NumberICMPP12F6E
    Product ModelICMPP12F6E
