ICC

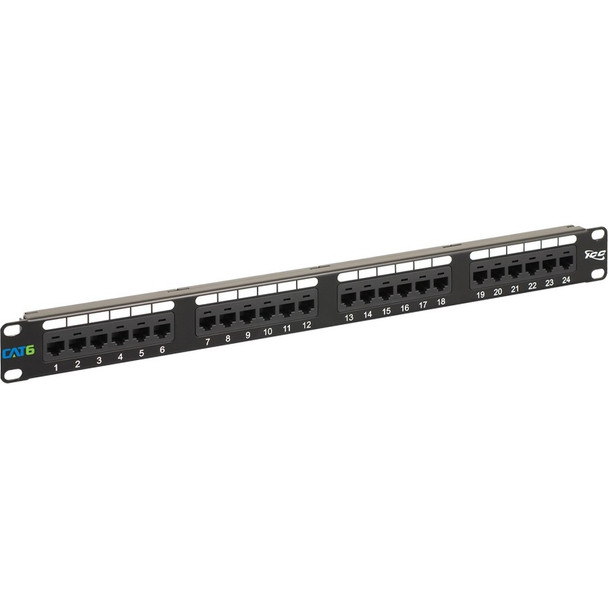

ICC CAT6 Patch Panel with 24 Ports and 1 RMS in 6-Pack (icmpp2460v)
(No reviews yet)
Write a Review
- SKU:
- 18125131
- MPN:
- icmpp2460v
- Availability:
- Usually ships in 1-2 business days. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/24/2025 05:09:31 PM PST
- Stock Update:
- 12/24/2025 05:09:31 PM PST
Description
This item is brand-new, factory sealed.
The Category 6 (CAT6) 24-port, 1 RMS patch panel exceeds TIA's Category 6 performance standards. This horizontal patch panel is designed with rear 110 IDC's for quick and easy punch-down termination. It also comes integrated with a universal label for either 568-A or B wiring. Package includes #12 rack screws.
Features
- Rack-mounted CAT 6 component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
- Enhanced crosstalk cancellation reduces return loss (AXT).
- Exceeds ANSI/TIA-568 Category 6 connecting hardware requirements.
- Engineered to provide 110 IDC termination reducing installation time.
- Includes both TIA-568A and TIA-568B color wiring diagrams.
- Backwards compatible with all lower rated category components.
- Fits standard 19" rack mount width.
- 1 rack mount space (RMS).
- UL listed.
Package Contents:
- CAT6 Patch Panel with 24 Ports and 1 RMS in 6-Pack
- 24 x Mounting Screws
- 1 x Installation Instructions
Features
Package Contents:
Taiwan
- CAT6 Patch Panel with 24 Ports and 1 RMS in 6-Pack
- 24 x Mounting Screws
- 1 x Installation Instructions
Certifications & Standards:
- ANSI/TIA-568
- TIA-568A
- TIA-568B
- UL 94V-0
Additional Information:
Mechanical:
- Force: 100 grams min/contact
- Temperature Range: -40 degrees C to 70 degrees C
- Plug Retention Jack: 50N (11 lbs SQ)
- IDC Wire Gauge: 22-24 AWG
Electrical:
- Current Rating: 1.5 AMP DC
- Contact Resistance: 2.5 milliohms max
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Material |
|
| Form Factor | Rack-mountable |
| Compatible Rack Width | 19" |
| Product Color | Black Powder Coat |
| Compatible Rack Unit | 1U |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Total Number of Ports | 24 |
| Number of Network (RJ-45) Ports | 24 |
| General Information | |
| Brand Name | ICC |
| Manufacturer Website Address | http://www.icc.com |
| Marketing Information | The Category 6 (CAT6) 24-port, 1 RMS patch panel exceeds TIA's Category 6 performance standards. This horizontal patch panel is designed with rear 110 IDC's for quick and easy punch-down termination. It also comes integrated with a universal label for either 568-A or B wiring. Package includes #12 rack screws. Features Rack-mounted CAT 6 component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth. Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port. Enhanced crosstalk cancellation reduces return loss (AXT). Exceeds ANSI/TIA-568 Category 6 connecting hardware requirements. Engineered to provide 110 IDC termination reducing installation time. Includes both TIA-568A and TIA-568B color wiring diagrams. Backwards compatible with all lower rated category components. Fits standard 19" rack mount width. 1 rack mount space (RMS). UL listed. |
| Product Type | Network Patch Panel |
| Product Name | CAT6 Patch Panel with 24 Ports and 1 RMS in 6-Pack |
| Manufacturer | ICC |
| Manufacturer Part Number | ICMPP2460V |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
ICC CAT6 Patch Panel with 24 Ports and 1 RMS in 6-Pack (icmpp2460v)
$488.26
