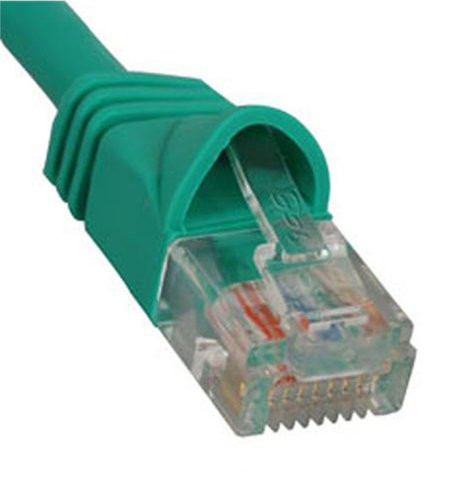

ICC Ultra Slim Cat.5e Patch Cable - 7 ft Category 5e Network Cable for Network Device - (ICPCSJ07GN)
(No reviews yet)
Write a Review
- SKU:
- 18125154
- MPN:
- icpcsj07gn
- Availability:
- Out of stock
- Stock Update:
- 12/20/2022 08:58:04 AM PST
- Stock Update:
- 12/20/2022 08:58:04 AM PST
Description
This item is brand-new, factory sealed.
Overview
ICC's CAT 5e unshielded twisted pair (UTP) patch cords exceed all performance requirements up to 350 MHz, ETL verified to ANSI/TIA-568-C.2 and is UL listed.
These patch cords are made from ultra slim, low profile snag-free boots for high density applications. They are available in a variety of colors to easily differentiate connection types and with the most popular stock lengths.
- 100 % Factory Tested , 50 Micro Inch Gold plated contacts
- Ultra Slim Low Profile boots for high density applications, no width wasted on boot.
- Backwards compatible to all lower rated category components.
- Constructed with (Ultra Flexible, Snag Free Molded Strain relief)
- Stranded bare 24 AWG copper wire (No substandard tinned copper materials used)
- Safety: UL listed with 94V-0 rated plugs, CSA, CMG, FT4 Flame rated
- Available in 8 colors (Blue, Black, Green, Gray, Orange, Red, White, Yellow)
- Available in 7 lengths (1, 3, 5, 7, 10, 14, 25 ft)
Features
Certifications & Standards:
Yes
China
- UL
- cUL
- ANSI/TIA/EIA-568B.2
- CSA
- CMG
- FT4 Flame rated
Environmentally Friendly:
Yes
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material |
|
| Insulation Material | High-density Polyethylene (HDPE) |
| Connector Color | Clear |
| Product Color | Green |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Insulation Color | Natural |
| Contact Material |
|
| Material Details | Bare Copper - Wire<br />Polycarbonate - Housing<br />Polycarbonate - Boot |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | ICC |
| Manufacturer Website Address | http://www.icc.com |
| Marketing Information | Overview ICC's CAT 5e unshielded twisted pair (UTP) patch cords exceed all performance requirements up to 350 MHz, ETL verified to ANSI/TIA-568-C.2 and is UL listed. These patch cords are made from ultra slim, low profile snag-free boots for high density applications. They are available in a variety of colors to easily differentiate connection types and with the most popular stock lengths. 100 % Factory Tested , 50 Micro Inch Gold plated contacts Ultra Slim Low Profile boots for high density applications, no width wasted on boot. Backwards compatible to all lower rated category components. Constructed with (Ultra Flexible, Snag Free Molded Strain relief) Stranded bare 24 AWG copper wire (No substandard tinned copper materials used) Safety: UL listed with 94V-0 rated plugs, CSA, CMG, FT4 Flame rated Available in 8 colors (Blue, Black, Green, Gray, Orange, Red, White, Yellow) Available in 7 lengths (1, 3, 5, 7, 10, 14, 25 ft) |
| Product Type | Network Cable |
| Product Name | Ultra Slim Cat.5e Patch Cable |
| Manufacturer | ICC |
| Manufacturer Part Number | ICPCSJ07GN |
| Product Model | ICPCSJ07GN |
| Product Line | Ultra Slim |
| Packaged Quantity | 1 Piece |
| Technical Information | |
| Cable Type | Category 5e |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Shielding | No |
| Device Supported | Network Device |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Contact Plating | Gold |
| Cable Length | 7 ft |
| Conductor | Copper |
| Jacket Type |
|
| Features |
|
| Cable Characteristic | Patch Cable |
| American Wire Gauge | 24 AWG |
| Boot Type | Snagless |
