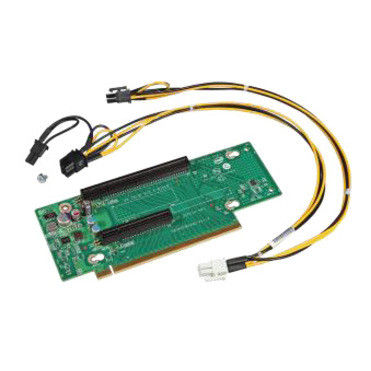

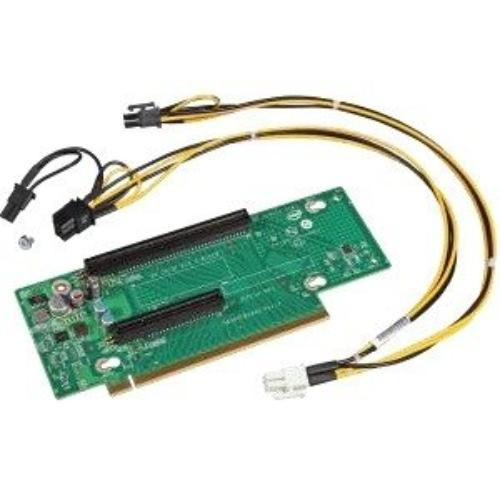

Intel 2u Riser Spare A2ul16riser2 [2 Slot] - 1 X Pci Express 3.0 X16, 1 X Pci Express 3.0 X8 (a2ul16riser2)

This item is brand-new, factory sealed.

• 2U dual-slot PCIe Riser card for the Intel Server Board S2600WT and S2600WF families. See product description for full compatibility list
• Riser Slots #1 & #2 Riser card option
• PCIe Gen 3 1x16 electrical with 1x16 mechanical; bottom connector is PCIe Gen 3 1x8 electrical with 1x8 mechanical connector; middle location is empty

• Brand Name: Intel
• Series: A2UL16RISER2
• Item model number: A2UL16RISER2
• Item Weight: 4 ounces
• Product Dimensions: 7.3 x 3 x 0.6 inches
• Item Dimensions L x W x H: 7.3 x 3 x 0.6 inches

2U dual slot riser card for the Intel Server Board S2600WT and S2600WF families (top connector - PCIe Gen 3 1x16 electrical with 1x16 mechanical; bottom connector is PCIe Gen 3 1x8 electrical with 1x8 mechanical connector; middle location is empty); Compatible with the following 2U Intel Server Systems: R2208WF0ZS, R2208WFTZS, R2224WFTZS, R2308WFTZS, R2312WF0NP, R2312WFTZS, R2208WTTYSR, R2208WT2YSR, R2208WTTYC1R, R2308WTTYSR, R2312WTTYSR, R2224WTTYSR, R2208WT2YS, R2208WTTYC1, R2208WTTYS, R2224WTTYS, R2308WTTYS, R2312WTTYS Compatible with the following 2U Intel Server Chassis: R2000WFXXX, R2312WTXXX, R2000WTXXX.
