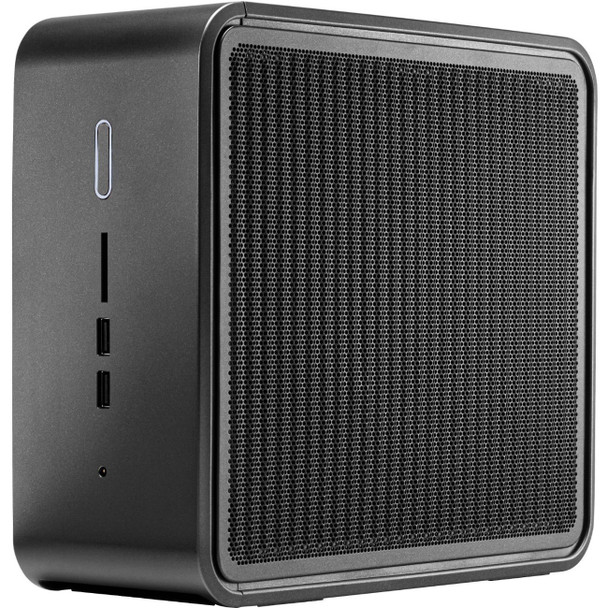

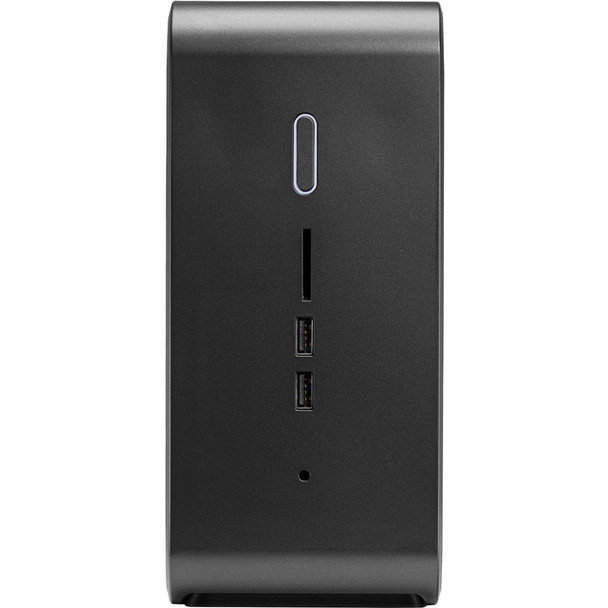

Intel NUC 9 Pro NUC9V7QNX Workstation - Intel Core i7 Hexa-core [6 Core] i7-9850H 9th Gen 2.60 GHz DDR4 SDRAM RAM - Mini PC (240746)
(No reviews yet)
Write a Review
- SKU:
- 18015116
- MPN:
- 240746
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
Intel NUC KIT BKNUC9V7QNX1 NUC9V7QNX1 i7-9850H M.2 with US cord RetailEssentialsProduct Collection
Intel NUC Kit with 9th Generation Intel Core Processors
Code Name
Products formerly Quartz Canyon
Supported Operating Systems
Windows 10, 64-bit, Linux
Board Number
NUC9V7QNB
Board Form Factor
PCIe
Internal Drive Form Factor
M.2 SSD
Number of Internal Drives Supported
3
Board Chipset
Mobile Intel CM246 Chipset
Processor Included
Intel Core i7-9850H Processor (12M Cache, up to 4.60 GHz)
Intel vPro Platform Eligibility
Yes
Number of Cores
6
Number of Threads
12
Processor Base Frequency
2.60 GHz
Max Turbo Frequency
4.60 GHzSupplemental Information
Embedded Options Available
NoMemory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666
Max Number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No Processor Graphics
Processor Graphics
Intel UHD Graphics 630
Integrated Graphics
Yes
Graphics Output
2x Thunderbolt 3, HDMI 2.0a
Number of Displays Supported
3
Discrete Graphics
Via PCIe add-in card(s)Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU)
Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8" max card length
PCIe x4 Gen 3
1
PCIe x16 Gen 3
1
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe)I/O Specifications
Number of USB Ports
11
USB Configuration
4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 2.0 via internal headers, 1x USB 2.0 internal
USB Revision
3.1 Gen2, 2.0
USB 2.0 Configuration (External + Internal)
3x int.
Total Number of SATA Ports
3
Max Number of SATA 6.0 Gb/s Ports
3
RAID Configuration
2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital L+R+mic (F) L+R+TOSLINK (R)
Integrated LAN
Intel Ethernet Connection i219-LM and i210-AT
Integrated Wireless
Intel Wi-Fi 6 AX200
Integrated Bluetooth
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt 3 Ports
2x Thunderbolt 3Package Specifications
Chassis Dimensions
238 x 216 x 96mmAdvanced Technologies
Intel Optane Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
Yes
TPM
Yes
TPM Version
Discrete 2.0
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
YesSecurity and Reliability
Intel AES New Instructions
Yes
Intel Trusted Execution Technology
YesItem Dimension (L"xW"xH")
18 x 15 x 16
Weight
32 lbs
Warranty Information
3-year limited
Package Contents:
- NUC 9 Pro NUC9V7QNX Workstation
- US Cord
Features
Package Contents:
Yes
- NUC 9 Pro NUC9V7QNX Workstation
- US Cord
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Specs
| Controllers | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels | 0, 1 |
| Processor | |
| Processor Core | Hexa-core (6 Core) |
| Processor Generation | 9th Gen |
| Processor Model | i7-9850H |
| Processor Type | Core i7 |
| Processor Speed | 2.60 GHz |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of Thunderbolt 3 Ports | 2 |
| HDMI | Yes |
| Total Number of USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of USB 3.1 Gen 2 Ports | 6 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 2 |
| Display & Graphics | |
| Graphics Controller Model | RTX A4000 |
| General Information | |
| Brand Name | Intel |
| Manufacturer Website Address | http://www.intel.com |
| Marketing Information | INTEL® NUC 9 PRO A COMPACT WORKSTATION FOR ALL YOUR CREATIVE TASKS Render faster, visualize more with full-powered GPUs CREATE AT WILL, 24/7/365 Behind every creator is a workhorse like the Intel® NUC 9 Pro kit, a compact workstation with room for the latest desktop graphics. Powered by the Intel® NUC 9 Pro Compute Element, this first-ever Intel NUC workstation is built to handle demanding content creation, data analysis, and AI development and inference tasks. |
| Product Type | Workstation |
| Product Name | NUC 9 Pro NUC9V7QNX Workstation |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | BKNUC9V7QNX1 |
| Product Model | NUC9V7QNX |
| Product Line | NUC 9 Pro |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Bluetooth | Yes |
