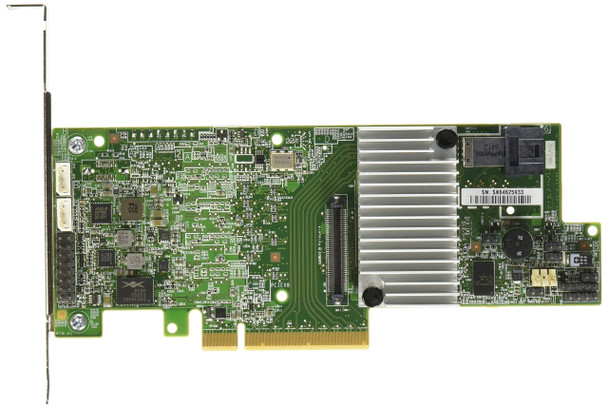

Intel Raid Controller Rs3dc040 - 12gb/s Sas - Pci Express 3.0 X8 - Plug-in Card - Raid Supported - 0, 1, 5, 10, 50, 60, 6 Raid Level - 4 Sas Port[s] (rs3dc040)
(No reviews yet)
Write a Review
- SKU:
- 18060843
- MPN:
- rs3dc040
- Availability:
- Out of stock
- Stock Update:
- 04/30/2025 05:55:06 PM PST
- Stock Update:
- 04/30/2025 05:55:06 PM PST
Description
This item is brand-new, factory sealed.
Intel Controller Card RS3DC040 SAS/SATA 4Port Integrated RAID Single Retail Board Form FactorLow Profile MD2
Data Transfer Rate
12 Gb/s
Supported Devices
SAS and SATA RAID Level Supported
0,1,5,6,10,50,60
No. of Ports Internal
4
No. of Devices Supported
128 Embedded Memory
1G DDR3
PCIe Host Interface
x8 PCIe Gen3
IO Processor Model
LSI3108
Connector Orientation
Side Item Dimension (L"xW"xH"):
11.61 x 6.10 x 9.57
Weight:
4.08 lb
Warranty Information:
Intel 3-year limited
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Interfaces/Ports | |
| Number of SAS Ports (Internal) | 4 |
| Total Number of SAS Ports | 4 |
| General Information | |
| Brand Name | Intel |
| Manufacturer Website Address | http://www.intel.com |
| Product Type | SAS Controller |
| Product Name | RAID Controller RS3DC040 |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | RS3DC040 |
| Product Model | RS3DC040 |
| Technical Information | |
| RAID Supported | Yes |
| Host Interface | PCI Express 3.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Levels |
|
