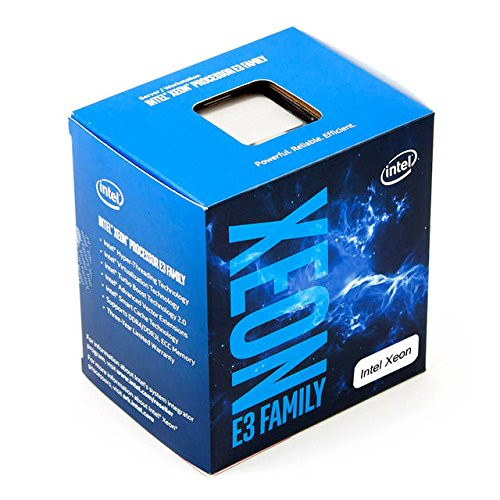

Intel Xeon E3-1240 v6 Quad-core [4 Core] 3.70 GHz Processor - Socket H4 LGA-1151Retail Pack (bx80677e31240v6)

This item is brand-new, factory sealed.

The Intel Xeon processor E3 product family delivers professional compute and visuals to support the needs of businesses worldwide, including: small business servers, entry workstations, powerful mobile workstations, storage servers, cloud workstations/media transcode, and edge computing/IoT. Professional compute with confidence delivered with reliable workload performance, integrated graphics support1 and trusted hardware-enhanced security.


Powerful Delivery
Support greater HD and UHD video trans code performance with up to 18 AVC video trans codes per processor and up to 2 HEVC trans codes per processor.2 3 4 5 New HEVC 10-bit hardware acceleration drives enhanced 4K encode and decode.6


Built for Professionals
Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications. Experience the difference of professional-grade compute with enhanced ECC memory support, hardware-enhanced security and reliability features, and ISV application certification with optimization available only on Intel Xeon processors.


High Image Quality
With discrete graphic performance, included on select configurations of the Intel Xeon processor E3 product family, you gain the added benefit of an on-board graphics engine to help drive an outstanding visual experience, and often at a lower total cost of ownership when compared to purchasing a separate professional-level graphics adapter. In addition, you gain ISV application certification with optimization available only on Intel Xeon processors.

Essentials
Vertical Segment: Server
Processor Number: E3-1240V6Performance
number of Cores: 4
number of Threads: 8
Processor Base Frequency: 3.70 GHz
Max Turbo Frequency: 4.10 GHz
Cache: 8 MB
Bus Speed: 8 GT/s DMI3
TDP: 72 W
VID Voltage Range: 0.55V-1.52VSupplemental Information
Embedded Options Available: No
Conflict Free: YesMemory Specifications
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2400, DDR3-1866
Max number of Memory Channels: 2
Max Memory Bandwidth: 37.5 GB/s
ECC Memory Supported: YesGraphics Specifications
Processor Graphics: None
Graphics Output: N/A
4K Support: No
Max Resolution (HDMI 1.4): N/A
Max Resolution (DP): N/A
Max Resolution (eDP - Integrated Flat Panel) : N/A
Max Resolution (VGA) : N/A
DirectX Support: N/A
OpenGL Support: N/A
Intel Quick Sync Video: No
Intel InTru 3D Technology: No
Intel Clear Video HD Technology: No
Intel Clear Video Technology: No
number of Displays Supported: 0Expansion Options
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: 1x16, 2x8. 1x8+2x4
Max number of PCI Express Lanes: 16Package Specifications
Sockets Supported: FCLGA1151
Max CPU Configuration: 1Advanced Technologies
Intel Turbo Boost Technology: 2.0
Intel vPro Technology: Yes
Intel Hyper-Threading Technology: Yes
Intel Virtualization Technology (VT-x) : Yes
Intel Virtualization Technology for Directed I/O (VT-d) : Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel TSX-NI: Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: YesIntel Data Protection Technology
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX) : Yes
Intel Memory Protection Extensions (Intel MPX) : YesIntel Platform Protection Technology
OS Guard: Yes
Trusted Execution Technology: Yes
Execute Disable Bit : Yes
Intel Device Protection Technology with Boot Guard: YesItem Dimension (L inchxW inchxH inch)
5 X 4 X 3

Weight
1.00 lb

Warranty Information
Intel 3-year limited
