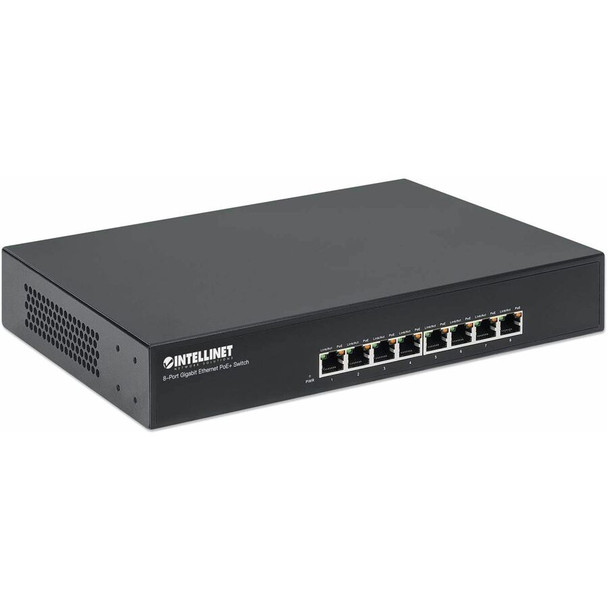

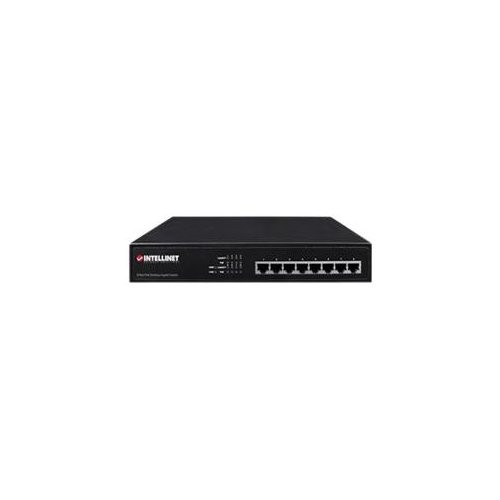

Intellinet 560641 8-port Poe+ Desktop Gigabit Switch

(No reviews yet) Write a Review
SKU:
20573196
MPN:
560641
Availability:
Out of stock
Stock Update:
02/04/2026 10:08:45 AM PST
  • Main
  • In-Package
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
02/04/2026 10:08:45 AM PST

Description

This item is brand-new, factory sealed.

  • 8-Port Gigabit Ethernet PoE/PoE+ Desktop Switch
    -The Intellinet 8-Port Gigabit Ethernet PoE+ Switch (560641) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
    Provides power and data connection for up to eight PoE network devices
  • Save time and money by delivering data and power via existing network cables
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
  • PoE power budget of 140 watts
  • Power output up to 30 watts per port*
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
  • All RJ45 ports with Auto-MDIX (auto uplink) support
  • Store and forward switching architecture
  • IEEE 802.3x flow control for full duplex
  • Supports up to 8K MAC address entries
  • 256 kBytes buffer memory
  • Fanless design ideal for silent operation
  • Desktop-size metal case
  • Three-Year Warranty
  • Backplane Bandwidth
  • Gbps:16

  • Max PoE Power Consumption
  • Watts:130

  • Number PoE Ports:8

  • Number SFP Ports:0

  • Packet Buffer Size
  • Kb:128

  • PoE Support Type:PoE and PoE+

  • Port Type:Gigabit Ethernet

  • Total Number of Ports:8

  • Color:Black

    • Features

    Package Contents:
    • 8-Port PoE+ Desktop Gigabit Switch
    • Power Cable
    • User Manual
    • 19" Mounting Brackets



    Certifications & Standards:
    • FCC Class B
    • VCCI Class B
    • CE
    • EN 60950-1

    IEEE Standards:

    • 802.3
    • 802.3ab
    • 802.3af
    • 802.3at
    • 802.3u
    • 802.3x



    Environmentally Friendly:
    Yes



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Specs

    Power Description
    Redundant Power Supply SupportedNo
    Power SourcePower Supply
    Frequency
    • 50 Hz
    • 60 Hz
    PoE (RJ-45) PortNo
    Physical Characteristics
    Form FactorDesktop
    Weight (Approximate)3.30 lb
    Length7"
    Product ColorBlack
    Height1.7"
    Width11"
    Warranty
    Limited Warranty3 Year
    Interfaces/Ports
    BypassNo
    USBNo
    Stack PortNo
    Number of PoE (RJ-45) Ports4
    Management PortNo
    Port/Expansion Slot Details8 x Gigabit Ethernet PoE+
    Total Number of Network Ports8
    ModularNo
    Token Ring PortNo
    LRE PortNo
    Number of PoE+ (RJ-45) Ports4
    General Information
    Brand NameIntellinet
    Manufacturer Website Addresshttp://www.icintracom.com
    Marketing InformationWhen you need power for compatible devices, Power over Ethernet provides it.
    The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
    Save installation time and money with PoE 802.3at.
    The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (e.g., legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter.
    * Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
    Product TypeEthernet Switch
    Product Name8-Port Gigabit Ethernet PoE+ Switch
    ManufacturerIC INTRACOM
    Manufacturer Part Number560641
    Product Model560641
    Media & Performance
    Ethernet TechnologyGigabit Ethernet
    Twisted Pair Cable StandardCategory 6
    Media Type SupportedTwisted Pair
    Network Technology10/100/1000Base-T
    Network & Communication
    Layer Supported2
