In Win Computer Case CK722.FF300TB3 CK722.FF300TB3

This item is brand-new, factory sealed.

CK722

9L Small Form Factor Chassis

With its minimalist design and sleek exterior, the CK Series fuses itself within any environment. Living room, home office, or corporate cubicle, it easily blends into anywhere with its compact size.

Placement in both Vertical or Horizontal stance.


Superior Performance

The CK Series is just 9L in volume, but it accommodates a slim ODD, 3.5/2.5 HDD, 2.5 HDD, four low-profile PCI cards, and even one card reader! It offers exceptional flexibility and scalability for enhanced multi-function applications!


Highly Expandable

Supports USB 3.0, USB 2.0, Type-C and card reader ports at the front for multiple device connections.


Advanced Thermal Solution

Hosts an 80mm PWM fan with plenty of ventilation providing exceptional cooling performance.


Detachable Drive Cage

The removable drive cage features a slim ODD, 3.5 and 2.5 HDD tool-free bays for easy installation.

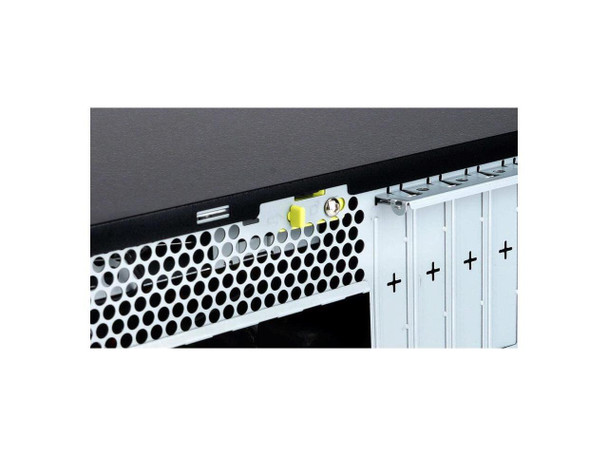

Quick Top Cover Eject Clip

A switch releases the top cover for faster system assembly or maintenance.

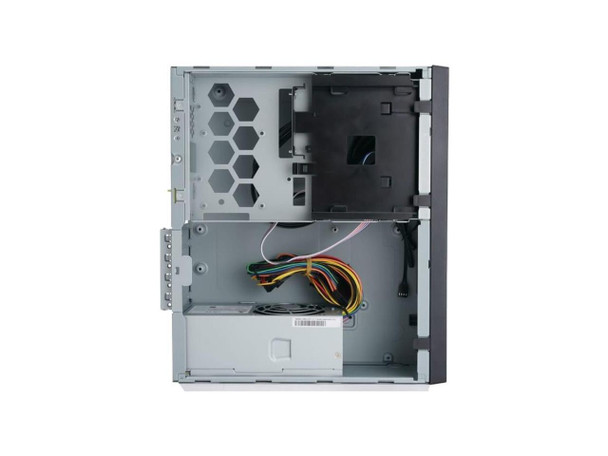

Supports Micro-ATX Motherboard

Efficiently utilizes its compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.

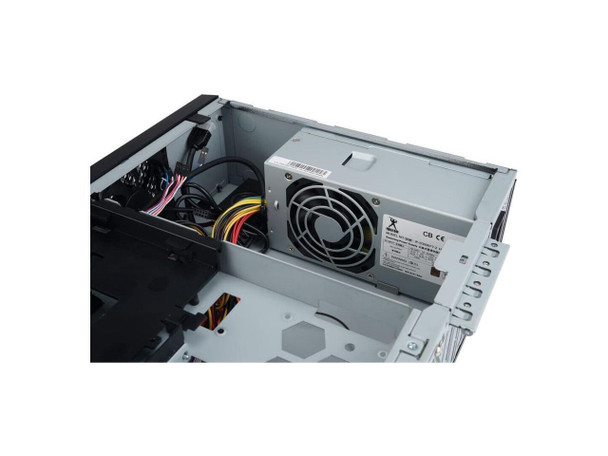

Standard TFX 12V 300W Power Supply

Internal TFX 300W power supply equipped with standby low power consumption and fan speed control for a quieter and more efficient operation. MB Form Factor
9L Case Size
SFF Slim Chassis
(Ultra Small Form Factor) Color
Black External Drive Bays
Slim ODD x 1 (95mm Thickness) Internal Drive Bays
35"/25" HDD x 1,
25" HDD x 1 Front Ports
USB 30 x 2 + USB 20 x 2 (or USB 30 x 2),
HD Audio I/O Expansion Slots
Low Profile Card Slot x 4 Model
CK722 Compatibility
Maximum Graphics Card Length / Width: 251 mm / 609 mm
Maximum CPU Cooler Height: 45 mm Power Supply
Standard TFX 12V, 300W Thermal Solution
Front: 80x80x15mm PWM Fan
(up to 25mm thickness) Safety
Meets RoHS, CE and FCC Class B Requirements Security
Padlock Loop / Kensington Slot Optional
Type-C
Card Reader
Internal Speaker
Chassis Intrusion SwitchItem Dimension (L inchxW inchxH inch)
16 x 6 x 14

Weight
13.00 lb

Warranty Information
1 year for CK722 chassis, 3 years for IP-S300FF1-0 power supply
