KanexPro Video Distribution Amplifier SPHDPOC1X4

This item is brand-new, factory sealed.

• Distribute & Extend HDMI over single CAT5e/6 to four (4) HD displays
• Includes 4-independent receivers
• Supports transmission distance up to 196ft. (60m)
• Supports Power over Cable from Transmitter to all four receivers removing the need to have additional power outlets at the TVs.

• Product Dimensions: 14 x 12.5 x 4 inches
• Item Weight: 4.27 pounds
• Manufacturer: KanexPro

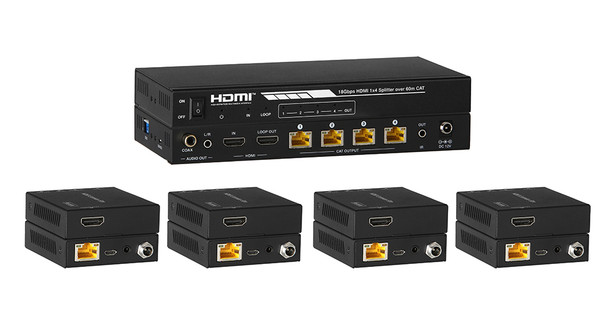

The KanexPro 1x4 Distribution Amplifier (SP-HDPOC1X4) is a 18Gbps HDMI 1x4 Splitter that can distribute a single HDMI source signal to any 4 display devices. Support video resolution up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 CAT outputs. It can extend the signal transmission distance up to 35 meters at the resolution of 4K2K@ 60Hz, or 50 meters at 4K2K@30Hz, or 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports one-way IR control signal pass-through, audio extract function and advanced EDID management. Industry Standard HDCP 2.2 & 4K/60HDCP 2.2 authentication is present always on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.Applications:Perfect for house of worship centers, retail stores and residential /smart home theater applications where one HDMI device can be distributed to four displays over a single network cable up to 164ft. without losing signal integrity. Professional PerformanceBuilt to commercial standards, KanexPro products offer premium features like locking power connectors, metal enclosures, and passive cooling designs which are a must for long term reliable and stable installations. Home Theater installations:Share a video source with displays in various locations within single or multiple room installations.Entertainment Spaces:Share a single cable box or source amongst multiple displays in an outdoor patio, dining area, or entertainment hall.Reduce Complexity:An all-in-one splitter extender system reduces the complexity and the number of cables and components needed for a system with multiple displays.Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding

• Video Distribution Amplifier
• Power Adapter
