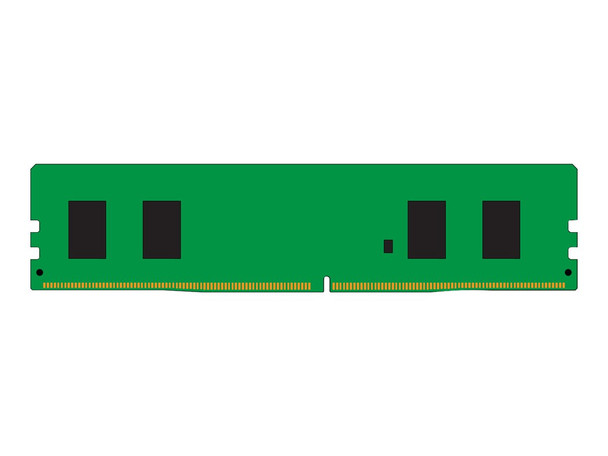

Kingston ValueRAM 8GB DDR4 SDRAM Memory Module (KVR26N19S6/8) KVR26N19S6/8

This item is brand-new, factory sealed.

DESCRIPTION

This document describes ValueRAM's KVR26N19S6/8 is a 1G x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

8 internal banks; 2 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-Free
CL(IDD)
19 cycles Row Cycle Time (tRCmin)
45.75ns(min.) Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.) Row Active Time (tRASmin)
32ns(min.) UL Rating
94 V - 0 Operating Temperature
0^o C to +85^o C Storage Temperature
-55^o C to +100^o C Item Dimension (L"x W"x H")
7 x 3 x 1
Weight
1.00 LB
Warranty Information
Lifetime Warranty
