kingston technology

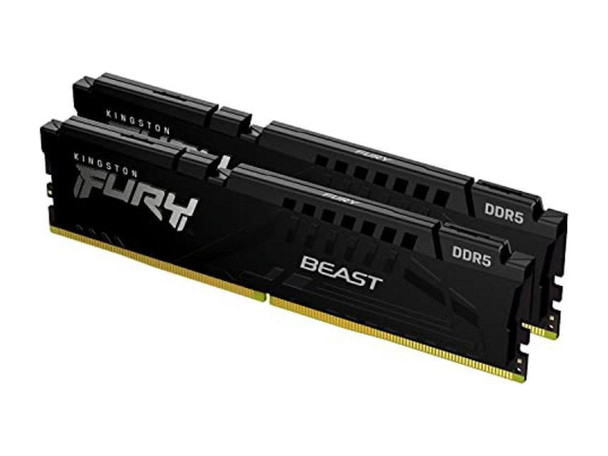

Kingston 32GB [2x16GB] DDR5 6000MT/s CL30 FURY Beast Black EXPO (kf560c30bbek2-32)
- SKU:
- 20714567
- MPN:
- kf560c30bbek2-32
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/06/2026 10:08:55 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $503.61 each 503.61 |
- Stock Update:
- 04/06/2026 10:08:55 AM PST
Description
This item is brand-new, factory sealed.
Kingston FURY KF560C30BBEK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
- EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37" (34.9mm), w/heatsink
Features
Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Thickness | 260.6 mil |
| Form Factor | DIMM |
| Length | 5.3" |
| Number of Pins | 288-pin |
| Width | 1.4" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Kingston |
| Manufacturer Website Address | http://www.kingston.com |
| Marketing Information | Kingston FURY KF560C30BBEK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows: FACTORY TIMING PARAMETERS Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V FEATURES Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC Height 1.37" (34.9mm), w/heatsink |
| Product Type | RAM Module |
| Product Name | 32GB (2x16GB) DDR5 6000MT/s CL30 FURY Beast Black EXPO |
| Manufacturer | Kingston Technology Company |
| Manufacturer Part Number | KF560C30BBEK2-32 |
| Product Line | FURY Beast |
| Technical Information | |
| Memory Technology | DDR5 SDRAM |
| Number of Modules | 2 x 16GB |
| Memory Size | 32 GB |
| CAS Latency | CL30 |
| Memory Rank | Single-rank |
| Memory Speed | 6000 MHz |
| Memory Voltage | 1.40 V |
| Memory Standard | DDR5-6000/PC5-48000 |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
