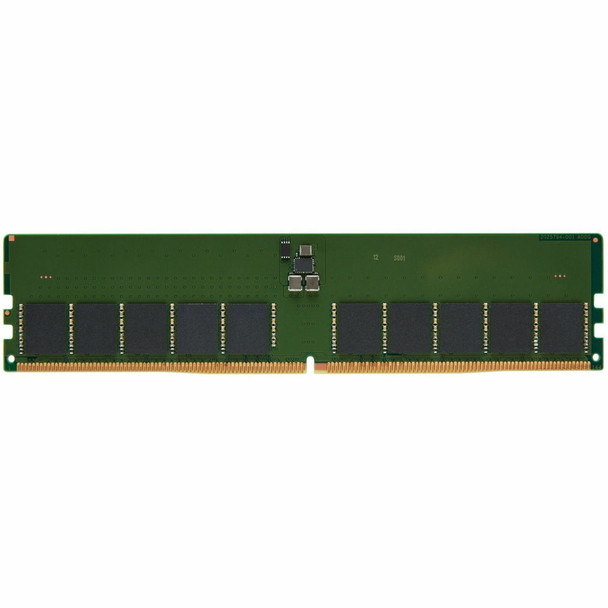

Kingston Server Premier 32GB DDR5 SDRAM Memory Module KSM56E46BD8KM32HA

This item is brand-new, factory sealed.

KSM56E46BD8KM-32HA

32GB 2Rx8 4G x 72-Bit

PC5-5600 CL46 288-Pin DIMM



Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC,
memory module, based on twenty 2G x 8-bit FBGA components.The SPD is programmed to JEDEC standard latency DDR5-5600
timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.



FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

x72 ECC (x36, 2 independent I/O sub channels)

32 internal banks

Hard/Soft Post Package Repair

Sideband access with I3C/I2C

PCB: Height 1.23 (31.25mm)

RoHS Compliant and Halogen-FreeCL(IDD)
46 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Row Precharge Time (tRPmin)
16ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +95^o C
Storage Temperature
-55^o C to +100^o C

Module Assembly
DRAM: HYNIX (A-Die)Item Dimension (L inchxW inchxH inch)
6 x 1 x 2

Weight
1 lb
