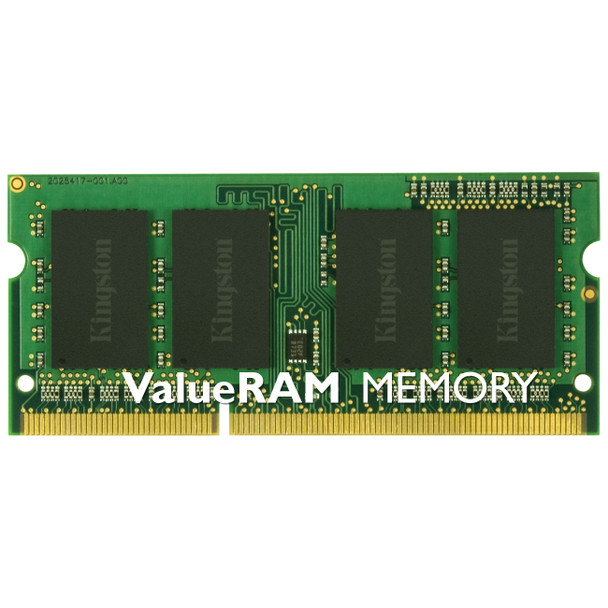

Kingston ValueRAM 8GB DDR3 SDRAM Memory Module (KVR16LS11/8) KVR16LS11/8

This item is brand-new, factory sealed.

This document describes ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:


Features:



JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply

VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)

800MHz fCK for 1600Mb/sec/pin

8 independent internal bank

Programmable CAS Latency: 11, 10, 9, 8, 7, 6

Programmable Additive Latency: 0, CL - 2, or CL - 1 clock

8-bit pre-fetch

Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]

Bi-directional Differential Data Strobe

Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)

On Die Termination using ODT pin

Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C

Asynchronous Reset

PCB: Height 1.18 (30mm), double sided component
CL (IDD)
11 CyclesRow Cycle Time (tRCmin)Refresh to Active/Refresh Command Time (tRFCmin)
260ns (Min)Row Active Time (tRASmin)
35ns (Min)Maximum Operating Power
(1.35V) 2.721WUL Rating
94V 0Operating Temperature
0 C to 85 CStorage Temperature
-55 C to +100 CItem Dimension (L"xW"xH")
2.17 x 6.7 x 0.52

Weight
0.15 lb

Warranty Information
Lifetime Manufacture

Features

Environmentally Friendly:
Yes



Compatibility:
Motherboards:

• Alienware - Alienware 14
• Alienware - Alienware 17
• Alienware - Alienware 18
• ASUS/ASmobile - G750 Notebook G750JH
• ASUS/ASmobile - G750 Notebook G750JW
• ASUS/ASmobile - G750 Notebook G750JX
• ASUS/ASmobile - VivoBook S551LA
• ASUS/ASmobile - VivoBook S551LB
• Clevo - Notebook P150SM
• Clevo - Notebook P151SM1
• Clevo - Notebook P157SM
• Clevo - Notebook P170SM
• Clevo - Notebook P177SM
• Clevo - Notebook P370SM
• Clevo - Notebook P375SM
• Clevo - Notebook W350STQ
• Clevo - Notebook W370ST
• Clevo - Notebook W650SR
• Gigabyte - P25K Notebook
• Gigabyte - P25W Notebook
• Gigabyte - P27K Notebook
• Gigabyte - P34G Notebook
• Gigabyte - P35K Notebook
• Intel - D33217CK Next Unit of Computing (NUC)
• Intel - D33217GKE Next Unit of Computing (NUC)
• Intel - D53427RKE Next Unit of Computing (NUC)
• Intel - D73517KK Next Unit of Computing (NUC)
• Intel - DC3217BY Next Unit of Computing (NUC) Kit
• Intel - DC3217IYE Next Unit of Computing (NUC) Kit
• Intel - DC53427HYE Next Unit of Computing (NUC) Kit
• MSI - Notebook GE40 2OC
• MSI - Notebook GE60 2OE
• MSI - Notebook GE70 2OE
• MSI - Notebook GX70



Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)



Specs

Physical Characteristics
Thickness	129.9 mil
Form Factor	SODIMM
Weight (Approximate)	0.25 oz
Length	2.7"
Number of Pins	204-pin
Width	1.2"
Warranty
Limited Warranty	Lifetime
General Information
Brand Name	Kingston
Manufacturer Website Address	http://www.kingston.com
Marketing Information	ValueRAM is Kingston's high-quality line of 'by spec' generic memory designed with the price conscious system builder, assembler and white box markets in mind. ValueRAM is backed by a lifetime warranty and is 100% tested both internally and through Advanced Validation Labs (AVL). AVL testing ensures all modules comply with JEDEC specifications.
Product Type	RAM Module
Product Name	ValueRAM 8GB DDR3 SDRAM Memory Module
Manufacturer	Kingston Technology Company
Manufacturer Part Number	KVR16LS11/8
Product Line	ValueRAM
Technical Information
Memory Technology	DDR3 SDRAM
Number of Modules	1 x 8GB
Memory Size	8 GB
CAS Latency	CL11
Plating	Gold Plated
Memory Speed	1600 MHz
Device Supported	Notebook
Memory Voltage	1.35 V
Memory Standard	DDR3-1600/PC3-12800
Error Checking	Non-ECC
Signal Processing	Unbuffered
