Lenovo 4KXPLUS Ultra HD to USB 3.0 Video Converter

This item is brand-new, factory sealed.

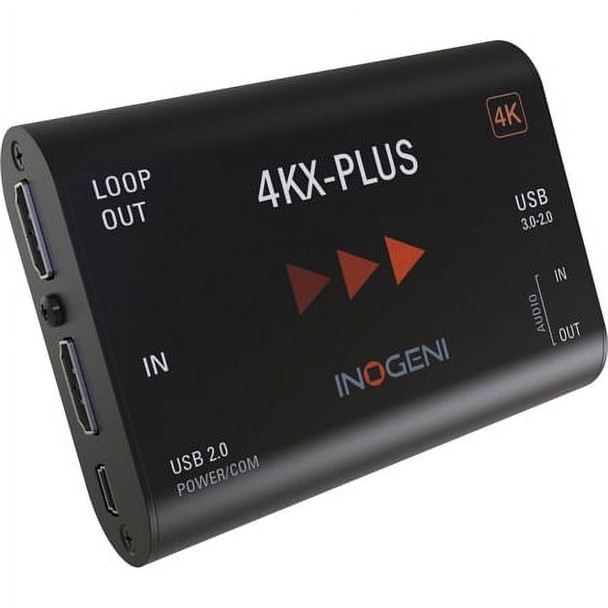

INOGENI 4KX-Plus 4K UHD HDMI to USB 3.0 Converter
Feature Unlocking Cisco Webex BYOM application Converts Ultra HD to USB 3.0 with an HDMI loop and external power for BYOM applications. It connects your HDMI cameras, video sources or CODECs to your third-party laptop. USB pass-through compatible. Connector & video resolutions 1x HDMI 1.4a 4K UHD (3840/4096 x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280 x1024, 1280 x960, 1280 x800, 1024 x768, 800 x600, 640 x480 Frame rates 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max. Color space RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB) Sampling rate 297 MHz Embedded audio Ch 1&2 48kHz LPCM HDMI-CEC Passthrough HDMI connections Connector & video resolutions 1x HDMI 1.4a 4K UHD (3840/4096 x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280 x1024, 1280 x960, 1280 x800, 1024 x768, 800 x600, 640 x480 Frame rates 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max. Color space RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB) Sampling rate 297 MHz Embedded audio Ch 1&2 48kHz LPCM USB - Connector & video resolutions 1 x USB type B (USB 3.0/2.0) 4K UHD (3840/4096 x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920 x1200, 1280 x1024, 1280 x960,1280 x800, 1024 x768, 800 x600, 640 x480 USB - CODECs YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0 MJPEG for USB 2.0 USB - Video scaler Automatic hardware based USB - Color space conversion Automatic hardware based USB - Sampling conversion Automatic hardware based USB - Frame rate conversion Automatic hardware based Analog audio I/O 2-channel LPCM audio from HDMI and/or from Audio Jack Audio input connector 1x 3.5mm, MIC or line-level, unbalanced Audio output connector 1x 3.5mm, line-level, unbalanced CH1&2 48kHz LPCM feed from HDMI Mixing functionality HDMI audio and analog audio inputs are mixed over the USB input interface USB audio output and HDMI audio input are mixed over the analog audio output Use Control App in order to manage audio layout Cisco Webex Compatible Easily programed macros in your Webex room device. Cisco Webex Macros and guides - USB Mode landing page Native Webex implementation available in Q2 CY2022 Intuitive interface on Webex Touch 10 or Webex Navigator The 4KX-PLUS is compatible with Webex Devices for multiple displays The 4K2USB3 is compatible with Webex Devices for one display Cisco Webex Compatible (Contd.) Macro and native Webex Room Kit Webex Room Kit Plus Webex Room Kit Pro Webex Room 55 Webex Room 70 Macro only Cisco MX700 Cisco MX800 Cisco SX80 Barco ClickShare Conference Compatible Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50) Operating system NO driver installation necessary! Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2638) Minimum host requirements USB 2.0 port - We recommend USB3.0 for uncompressed video 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory Supported cameras Cameras (or video Source) with an HDMI output Software compatibility UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc. HDCP-compliant The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. Certifications FCC, CE, RoHS, IEC62368, SoV, RCM, 508 Statement, KC TAA-compliant Yes Power supply Powered by USB 4.5 W (5 V, 900mA) or by external power supply 5 W (5 V, 1 A) Operating temperature 32 Degree to 113 Degree F (0 Degree to 45 Degree C) Storage temperature -40 Degree to 221 Degree F (-40 Degree to 105 Degree C) Relative humidity 0% to 90% non-condensing Dimensions (W x L x H) 3.9 x 2.9 x 0.75" (9.9 x 7.4 x 1.9cm) Weight 4.93 oz (140g)

Package Contents:

• HDMI TO USB 3.0 Capture Device
• 1 x 3 ft. USB 3.0 Cable (Type-A to Type-B)
• 1 x 6 ft. USB 2.0 Cable (Type-A to mini Type-B) (for power)
• 1 x Power Supply 100-240 VAC 50/60Hz to 5V/1A DC USB-A
