Lenovo SHARE2U Dual USB Camera Mixer to USB 3.0 Video Capture

This item is brand-new, factory sealed.

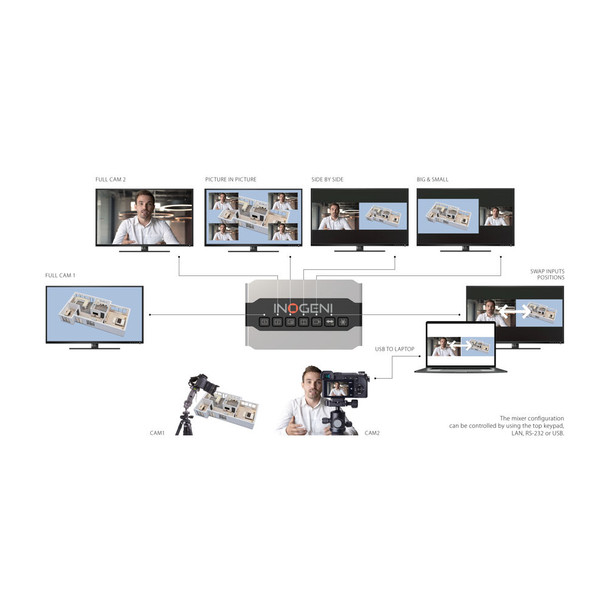

This easy Plug-And-Go mixer capturing 2 Picture-In-Picture or side-by-side video sources in one video flow is equally perfect to enhance the experience of your HyFlex classes and collaborative meetings. Mix 2 cameras from 3 sources (2 USB 2.0 and 1 HDMI) Engage a dynamic presentation and easily switch up to 14 mix setup videos Change camera and video configuration without cutting the flow of your presentation Ideal for remote education, collaborative meetings, webinars or live streaming Compatible with the Q-SYS Core processors Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50) Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0 Audio I/O and mixer via the INOGENI Control App Controllable by LAN & RS-232 Cost-effective solution that is reliable and simple to install and connect (no driver required) Compact and robust design with its aluminium enclosure Designed and manufactured in Canada TAA-compliant How it works The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device to control it manually. You can use the camera mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams, Zoom, Webex, GoToMeeting and all video conferencing applications. With the push of a button, you can easily switch up to 14 mix setup videos. Features The SHARE2U Dual USB Camera to USB 3.0 professional camera mixer offers an array of features for a smooth and seamless BYOD or BYOM experience: Control interface: LAN, RS-232, USB (Get the software upgrade: Crestron Serial & IP modules) Local and remote keypad: REMOTE User Guide USB 2.0 cameras and HDMI capture Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0 Audio mixer: Unbalanced, line level stereo audio support PTZ control of USB cameras over USB 3.0 interface Device configuration via the INOGENI Control App Firmware upgrade available via the INOGENI Control App Supports multiple devices on the same host Compatible with Windows, macOS and Linux Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50) Certifications and Compliances TAA Compliant Yes Shipping Master product height 0.0 Shipping height (in.) 4.25 Master product width 0.0 Master carton quantity 1.0 Country of origin CA Master product length 0.0 Quantity unit of measure EA Shipping width 7.25 Shipping depth 1.25 Shipping weight 1.19 Master product weight 0.0
Video input Video input 1 1x USB 2.0 camera: Depends on the camera specifications Video input 2 1x USB 2.0 camera: Depends on the camera specifications (or) 1x HDMI: 1080p, 1080i, 720p, 480p, 576p, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 Frame Rates Up to 1920x1080p, 30Hz Color Space USB: RGB HDMI: RGB, YCbCr 4:4:4 and 4:2:2 YCbCr (YUY2) 4:2:2 8-bit Analog I/O Analog stereo, line level, 3.5mm jack Camera Control RS-232 on terminal block for VISCA control Mixer Control The Mixer feature can be controlled by the following interfaces: HID, RS-232, keypad and INOGENI REMOTE Connector 1x USB 3.0 1x HDMI Video Scaler Automatic hardware based Color Space Conversion Automatic hardware based Sampling Conversion Automatic hardware based Frame Rate Conversion Automatic hardware based Audio input 2-channel LPCM 48 kHz audio from line input, HDMI or USB cameras Audio output 2-channel LPCM 48kHz audio line level USB Expansion Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host. Maximum USB bandwidth No USB bandwidth limitation Operating Systems NO driver installation necessary! Windows 7 and above (32/64-bit) OSX 10.10 and above Linux (kernel v2.6.38) and above Android Minimal Host Requirements USB 3.0 port 4GB RAM Intel Core i5 or equivalent Graphic card with dedicated memory Motherboard Compatible with all motherboards. Intel, Renesas, ASMedia and Fresco Logic Cameras Supported Cameras and camcorders with an HDMI, DVI, VGA or CVBS output Software Compatibility UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2. Operating Temperature 0 to 45 deg. C (32 to 113 deg. F) Storage Temperature -40 to 105 deg. C (-40 to 221 deg. F) Relative Humidity 0% to 90% non-condensing Power 12V, 500mA (adapter included) Dimensions 7.3 x 4.4 x 1.2" (18.54 x 11.18 x 3.05cm) Weight 466g (16.44 oz)
