Lian Li EGHUB01B External USB And Fan Hub Black

This item is brand-new, factory sealed.

EDGE Hub

The Hub on Edge Gold 1000W & 1200W is now available separately

Connect to the motherboard using USB-USB and USB-Type A cables

4 ports in 2+2+2+1 format?500mA for each USB port

1 interface for speed feedback functionality


EDGE HUB

Elevate your power experience with the hub

FAN PWM HUB

6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.

1 interface for speed feedback functionality

USB HUB

4 ports supporting up to 8 downstream connections, 500mA for each USB port, ideal for RGB controllers and USB devices, with a total output of 2.5A.

1. Edge PSU Connector

Remove the cap and attach the hub directly to the Edge PSU for power.

2. Magnetic Design

Integrated magnets allow easy placement and accessibility inside the case.

3. Independent Power Supply

Connect the hub to a PCIe 8-PIN cable for independent operation.

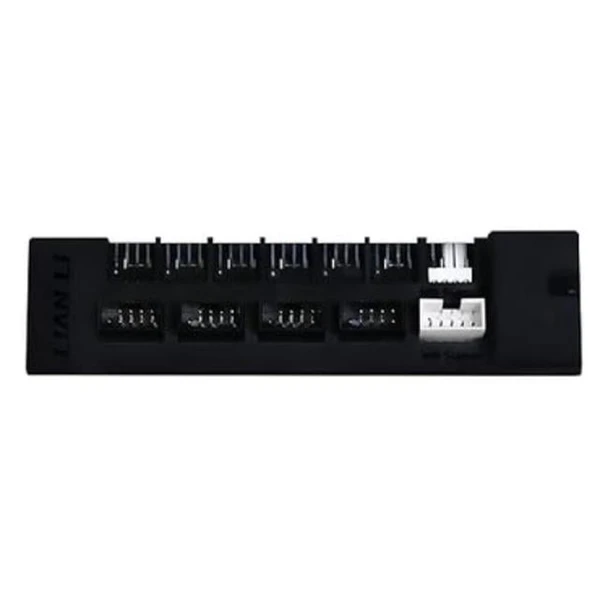

MODULAR USB & FAN PWM HUB

The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.

MOTHERBOARD SIGNAL CONNECTION

Offers two options for motherboard USB signal connection to accommodate different configurations.Model NAME
Edge HUBCOLOR
BlackInput
Fan 12Vdc 12.5A
USB 5Vdc 2.5AFan Header Output
6 x header 12Vdc 2A for eachUSB Header Output
4 x header 5Vdc for each 500mA Total 2.5APower Source
Edge Gold PSU Connector PCIe 8-PINItem Dimension (L inchxW inchxH inch)
7 x 4 x 2

Weight
1.00lb

Warranty Information
2 years
