LSI Logic

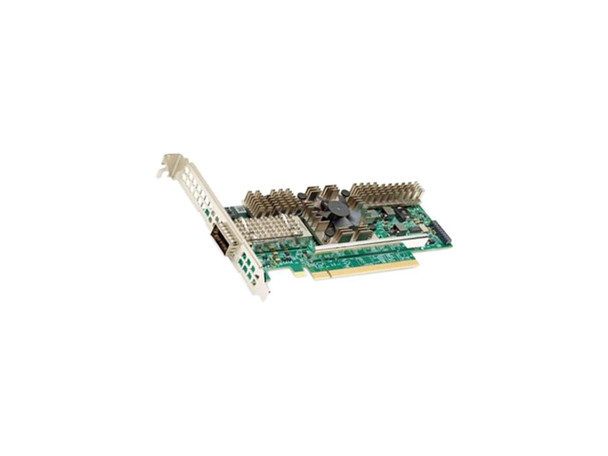

LSI Logic Broadcom P150P - 1 x 50GbE PCIe NIC BCM957414A4140C
(No reviews yet)
Write a Review
- SKU:
- 18559918
- MPN:
- bcm957414a4140c
- Availability:
- Out of stock
- Stock Update:
- 01/23/2026 02:10:52 PM PST
- Stock Update:
- 01/23/2026 02:10:52 PM PST
Description
This item is brand-new, factory sealed.
P150P - 1 x 50GbE PCIe NICHigh-Performance, Feature-Rich Single-Port 50GbE PCIe Ethernet NIC
Based on Broadcoms scalable 10/25/50/100/200G Ethernet controller architecture, the P150P 1x50G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.
The P150P 1x50G PCIe NIC builds upon the success of the widely deployed Broadcom architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.
Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.
With its market-leading hardware acceleration technologies, the P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. These solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.Adapter Type
PCIe NICASIC
BCM57414Connectors
QSFP28OS Support
CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX, VMware vSphere, Windows Hyper-V, Windows ServerLink-Speeds
50/25/10GbEMulti-Host
NoNPAR
YesOrdering Part Number
BCM957414A4140CPorts
1RoCEv2
YesTruFlow
YesTruManage
YesItem Dimension (L"xW"xH")
7 x 3 x 2
Weight
1 lb
Warranty Information
3 years
Features
Device Supported:
Server
Switch
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Host Interface | PCI Express 3.0 x8 |
| I/O Expansions | |
| Expansion Slot Type |
|
| General Information | |
| Brand Name | Broadcom |
| Manufacturer Website Address | https://www.broadcom.com |
| Marketing Information | Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series P150P 1x50G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics. The P150P 1x50G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency. Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks. With its market-leading hardware acceleration technologies, the NetXtreme-E Series P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions. |
| Product Type | 50Gigabit Ethernet Card |
| Product Name | P150P - 1 x 50GbE PCIe NIC |
| Manufacturer | Broadcom Corporation |
| Manufacturer Part Number | BCM957414A4140C |
| Product Model | P150P |
| Product Series | E |
| Product Line | NetXtreme |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Network & Communication | |
| Network Technology |
|
