Maretron GPS200 Add-on GPS Receiver 5452950
- SKU:
- 18032687
- MPN:
- 5452950
- Availability:
- Usually ships the same or next business day. In stock at our CA, Fl, GA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/24/2026 12:09:11 AM PST
- Stock Update:
- 02/24/2026 12:09:11 AM PST
Description
This item is brand-new, factory sealed.

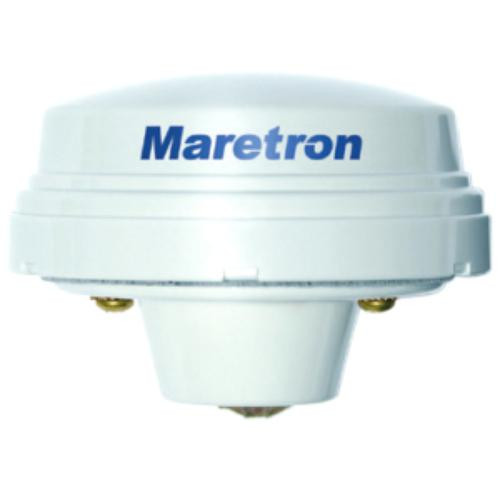

GPS200 - NMEA 2000® GPS Antenna/ReceiverMaretron's GPS200 is a state-of-the-art 32 channel GPS antenna and receiver capable of providing five position fixes per second, accurate boat speed four times per second, and precision time once per second. An additional benefit of the GPS200 is that it broadcasts precision magnetic variation information using the current position and world magnetic model (WMM-2010).
The GPS200 antenna/receiver is a plug-and-play device that is fully compliant and certified to the NMEA 2000® Standard. It will directly connect to any NMEA 2000® network and communicate with navigational software, chart plotters, autopilots and dedicated instrument displays ? such as Maretron's N2KView® Vessel Monitoring and Control system or DSM250 graphical display ? and its compact, waterproof housing provides years of reliable performance.
The GPS200 automatically decodes GPS correction signals from Satellite Based Augmentation Systems (SBAS) including the North American Wide Area Augmentation System (WAAS), the European Geostationary Navigation Overlay System (EGNOS), or the Asian Multifunctional Transport Satellite-based Augmentation System (MSAS) to provide better than 2.5m accuracy.
The GPS200 is easily mounted to any 1? standard marine mount with its standard 1??14 male threads. It can also be mounted directly to a deck, or even (due to it's unprecedented sensitivity) underneath a fiberglass deck.
FEATURES
- Latitude
- Longitude
- Time
- Date
- Course Over Ground
- Speed Over Ground
- Magnetic Variation
- Satellite Status
APPLICATIONS
- Navigation
- Autopilot
- AIS
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 6 oz |
| Durability | Water Proof |
| Height | 1.7" |
| Diameter | 4" |
| Battery Information | |
| Battery Chemistry | Lithium (Li) |
| General Information | |
| Brand Name | Maretron |
| Manufacturer Website Address | http://www.maretron.com |
| Marketing Information | Maretron's GPS200 is a state-of-the-art 32 channel GPS antenna and reciever capable of producing five position fixes per second. The GPS200 has unprecedented sensitivity and can even be mounted underneath a fiberglass deck. An additional benifit of the GPS200 is that it broadcasts precision magnetic variation information using the current position and world magnetic model (WMM-2010). The GPS200 antenna/receiver is a plug-and-play device that is fully compliant and certified to the NMEA 2000® Standard. It will directly connect to any NMEA 2000® network and communicate with navigational software, chart plotters, autopilots and dedicated instrument displays - such as Maretron's DSM250 graphical display - and its compact, waterproof housing provides years of reliable performance. |
| Product Type | Add-on GPS Receiver |
| Product Name | GPS Antenna/Receiver |
| Manufacturer | Maretron, LLP |
| Manufacturer Part Number | GPS200-01 |
| Product Model | GPS200 |
| Technical Information | |
| Warm Start Time | 33 Second |
| Hot Start Time | 1 Second |
| Minimum GPS Accuracy | 98.43" |
| Cold Start Time | 36 Second |
| Number of GPS Channels | 32 |
| Features | Chartplotting |
| Maximum GPS Accuracy | 118.11" |
