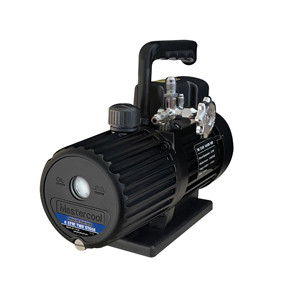

Mastercool 90066-2V-110-BL Black Series 6 Cfm Vacuum Pump 2 Stage 900662V110BL_45_1

This item is brand-new, factory sealed.

Mastercool 90066-2V-110-BL Black Series 6 CFM Two Stage Vacuum Pump, Dual Voltage 110V/220V, Thermally Protected Motor, High-Volume Fan, and Oil Drain Valve

• Advanced Two-Stage System: Achieves a deep vacuum level down to 15 microns, making it perfect for high-precision HVAC/R applications that require superior vacuum performance.
• Dual Voltage Capability & Thermally Protected Motor: Operates on both 110V and 220V, providing flexibility across various job sites, while the thermally protected motor ensures safe, continuous operation under demanding conditions.
• Efficient Cooling System: Features a high-volume fan, cooling fins, and a gas ballast valve to help maintain optimal operating temperatures and protect the oil from moisture exposure, promoting long-lasting efficiency and durability.
• Flexible Manifold Valve: Includes three inlet ports (1/4", 3/8" SAE, and 1/2" ACME), offering versatility in connections and compatibility with different systems.
• User-Friendly Design & Stability: Features a large oil level sight glass for easy monitoring, accessible oil drain valve, and a reinforced lightweight base for stable positioning, all designed for ease of use and maintenance.

• Brand: ?Mastercool
• Color: ?Black
• Material: ?Aluminum
• Style: ?6 CFM, 2 Stage
• Power Source: ?Corded Electric
• Manufacturer: ?MASTERCOOL
• UPC: ?700376130843
• Model: ?MASTERCOOL PUMP
• Item Weight: ?27.1 pounds
• Package Dimensions: ?18.58 x 15.67 x 14.17 inches
• Country of Origin: ?China
• Item model number: ?90066-2V-110-BL
• Manufacturer Part Number: ?90066-2V-110-BL

Mastercool 90066-2V-110-BL Black Series 6 CFM Two Stage Vacuum Pump is engineered for professionals requiring powerful performance and versatility. This dual-stage vacuum pump is ideal for handling large HVAC/R systems and other demanding applications where high precision and deep vacuum levels are essential. With its dual voltage capability, advanced cooling system, and thermally protected motor, this pump is designed to deliver efficient and long-lasting service in the field.

Key Features:

• 6 CFM Two-Stage Performance: Delivers deep vacuum capability with a free air displacement of 6 CFM and an ultimate vacuum of 15 microns, making it perfect for heavy-duty HVAC/R applications.
• Dual Voltage Capability: Equipped to operate on both 110V and 220V power supplies, providing versatility and compatibility across different job sites.
• Thermally Protected Motor: Powered by a 1/3 HP thermally protected motor to prevent overheating during extended use, ensuring reliability and durability.
• Efficient Cooling System: Features a high-volume fan and cooling fins to maintain optimal temperatures during prolonged operations, extending the pumps lifespan and maintaining peak performance.
• Easy Maintenance and Stability: Includes a large oil sight glass with max/min level indicators for easy oil level monitoring and an easily accessible oil drain valve. The lightweight reinforced base ensures stable positioning during use.
  Dimensions: 15" x 6.7" x 10.8", Weight: 20.5 lbs (9.3 kg).

Technical Specifications:

• Free Air Displacement: 6 CFM
• Ultimate Vacuum: 15 microns
• Motor Power: 1/3 HP
• Pump Speed: 1720 RPM
• Electrical Specs: 110/220V, 60Hz
• Fittings: T-Fitting 1/4" FL-M x 1/2" ACME-M
• Oil Capacity: 18 oz

Whether you're working on large HVAC/R systems or need deep vacuum performance for critical tasks, the Mastercool 90066-2V-110-BL offers the power, reliability, and versatility you need to get the job done.
