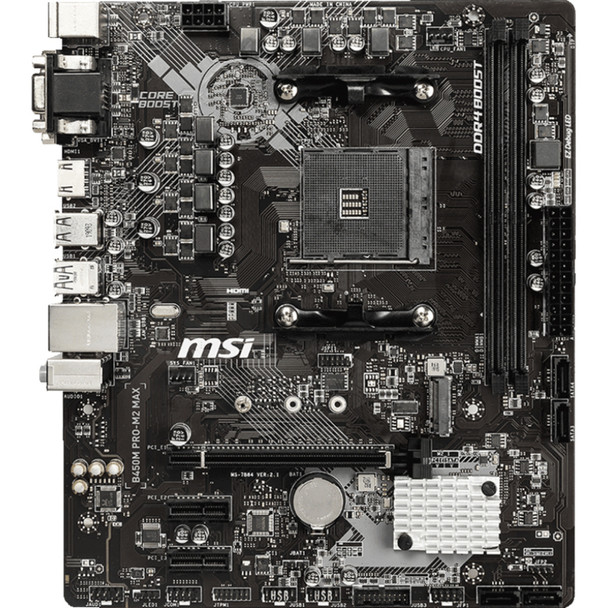

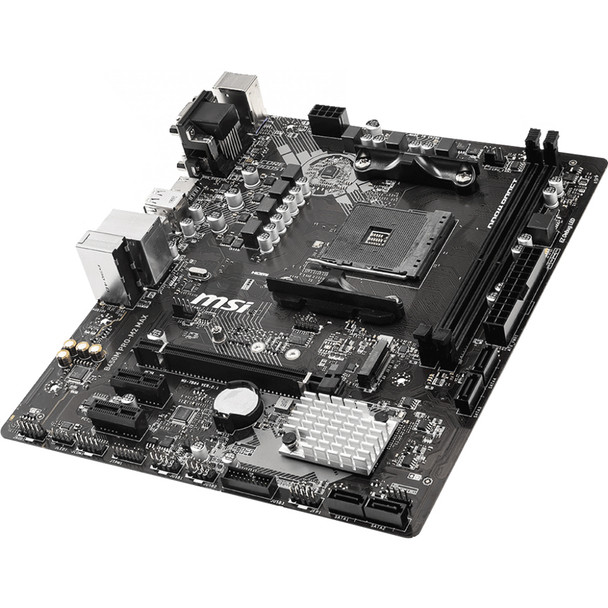

MSI B450M PRO-M2 MAX Desktop Motherboard - AMD B450 Chipset - Socket AM4 - Micro ATX (B450MPM2MAX)

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number: B450MPM2MAX

• CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
• Chipset: AMD B450 Chipset
• Memory:
  • 2 x DDR4 memory slots, support up to 32GB
    - Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
    - For AMD Ryzen Gen3 (R5/R7/R9)
    *Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode
    - For AMD Other CPU
    *Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC MODE

  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports non-ECC UDIMM memory

• Slots:
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors
    - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors
    - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
  • 2 x PCIe 2.0 x1 slots

• Onboard Graphics:
  • 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz
  • 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
  • 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
• Storage:
  • AMD B450 Chipset
    - 4 x SATA 6Gb/s ports
    *Supports RAID 0, RAID1 and RAID 10
    - 1 x M.2 slot (Key M)
    *Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices

• USB:
  • AMD B450 Chipset
    - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
    - 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
  • AMD CPU
    - 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
• Audio:
  • Realtek ALC892 Codec
    - 7.1-Channel High Definition Audio
• LAN: 1 x Realtek 8111H Gigabit LAN controller
• Internal Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x LED strip connector
  • 1 x Clear CMOS jumper

• Back Panel Ports:
  • Mouse
  • VGA Port
  • USB 2.0
  • LAN Port
  • HD Audio Connectors
  • Keyboard
  • DVI-D Port
  • HDMI Port
  • USB 3.2 Gen1
• Dimension:
  • 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
  • m-ATX Form Factor
• Mounting: 9 mounting holes
• Operating System:
  • Support for Windows 10 64-bit
  • Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
