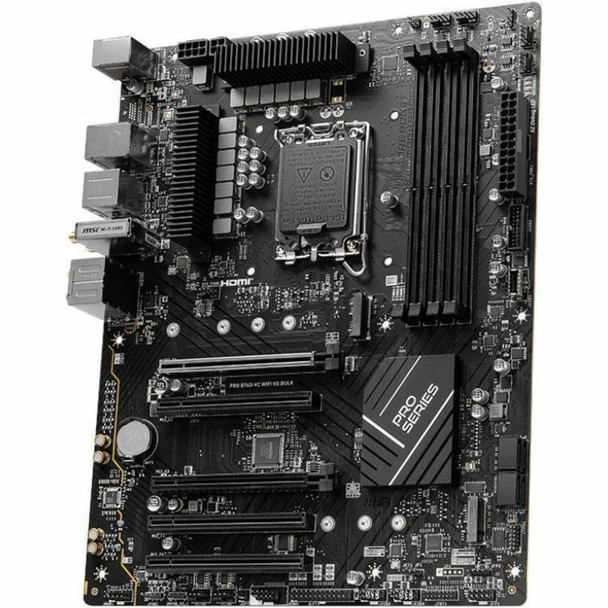

MSI B760-VC WIFI HS BULK Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX (b760vcwifihs-b)

This item is brand-new, factory sealed.

PRO B760-VC WIFI HS BULK

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)

Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

High Quality PCB: 6-layer PCB made by 2oz thickened copper

Fast Game experience: PCIe 4.0 slot, Gen 4 x4 M.2

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceChipset
INTEL B760CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700Memory
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7000+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memorySlot
5x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF outputStorage
2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)LAN
Realtek RTL8125BG 2.5G LANInternal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 portsWIRELESS LAN AND BLUETOOTH
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.LED FEATURE

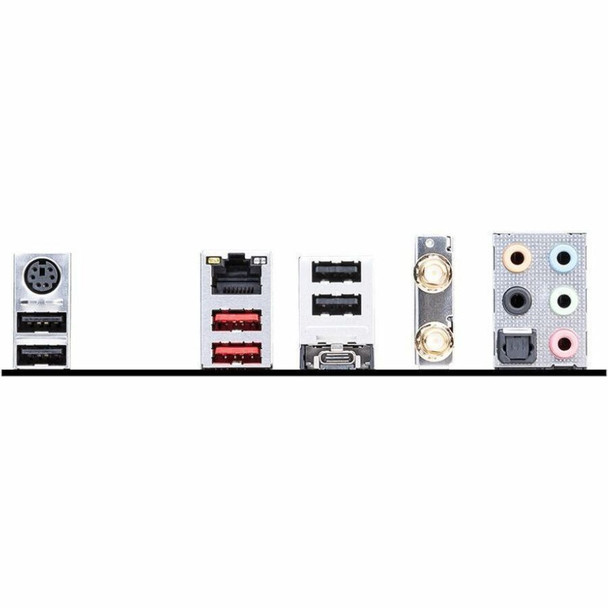

4x EZ Debug LEDBACK PANEL PORTS
Keyboard / Mouse
2.5G LAN
USB 2.0
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S/PDIF-OUTOPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bitPCB Info
ATX
243.84mmx304.8mmItem Dimension (L"xW"xH")
14 x 11 x 3

Weight
4 lbs

Warranty Information
24 Months
