MSI MAG B860 TOMAHAWK WIFI Gaming Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX (b860tomahawkwifi)

This item is brand-new, factory sealed.

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket

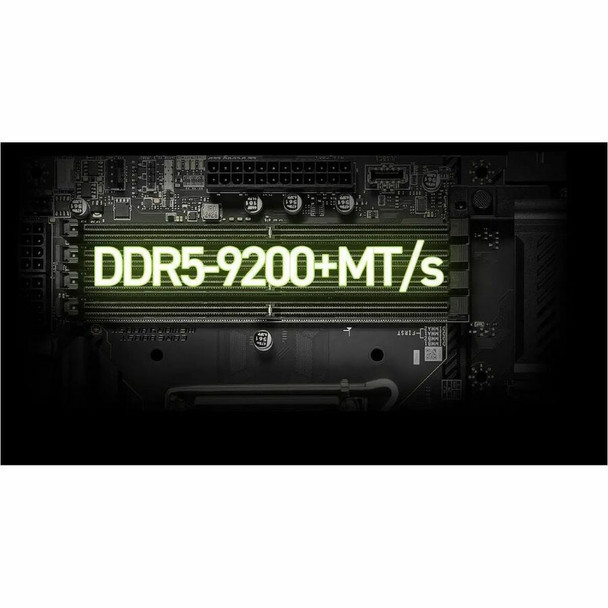

Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)

Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna

Fast Game experience: PCIe 5.0 slot, Gen 5 x4 M.2

Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience Chipset
INTEL B860 CPU
Supports Intel Core^TM Ultra Processors (Series 2)
LGA 1851 Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
1DPC 1R Max speed up to 9200+ MT/s
1DPC 2R Max speed up to 7200+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
The DIMM slots on this motherboard only have single-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit https://www.msi.com/support/. Onboard Graphics
1x HDMI^TM
Support HDMI^TM 2.1 with FRL, maximum resolution of 8K 60Hz^Note1/ ^Note2
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz^Note1/ ^Note2
1x Type-C DisplayPort
Thunderbolt^TM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K at 120Hz / 8K at 60Hz^Note1
Note1: Available only on processors featuring integrated graphics.
Note2: Graphics specifications may vary depending on the CPU installed. Slot
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Note: PCI_E3 slot will run at x2 speed when installing PCIe device in PCI_E2 slot. Audio

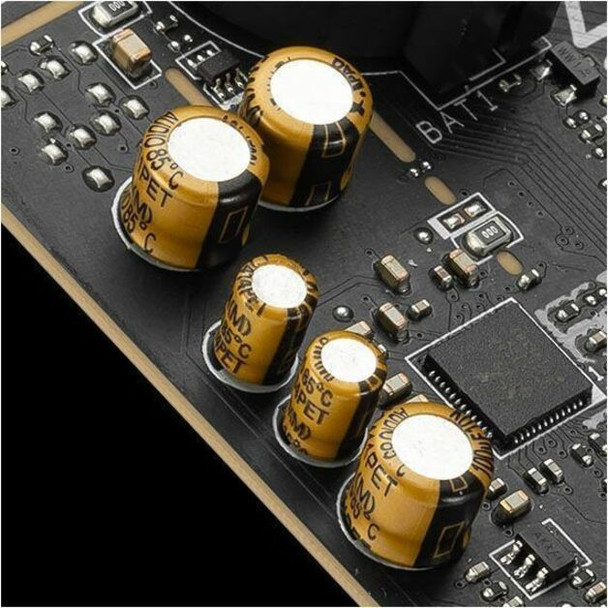

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
Note1: If you install a 22110 SSD into the M2_2 slot, the M2_3 slot will only support 2242/ 2260 SSD.
Note2: Please refer to the manual for M.2 SSD heatsink restrictions. RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Onboard Thunderbolt
Thunderbolt Resource CPU
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 40Gbps Type C (Rear) LAN
Intel Killer^TM E5000 5Gbps LAN Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports WIRELESS LAN and BLUETOOTH
Intel Killer^TM BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz ^Note1 (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4^Note2, MLO, 4KQAM
Note1: 6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
Note2: The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendors website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. LED FEATURE
4x EZ Debug LED

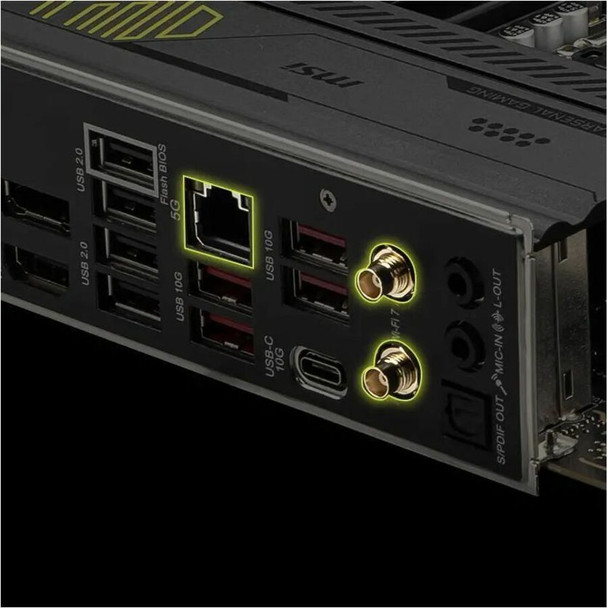

1x EZ Memory Detection LED BACK PANEL PORTS

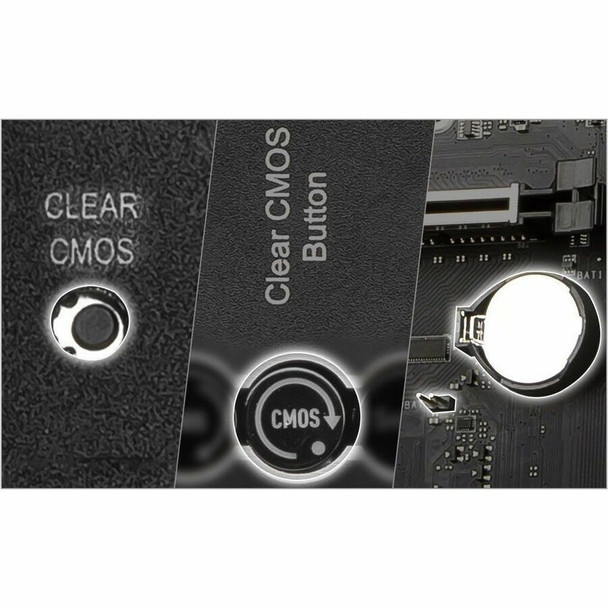

Clear CMOS Button
DisplayPort
USB 2.0 (Flash BIOS Port)
5G LAN
USB 10Gbps Type-A

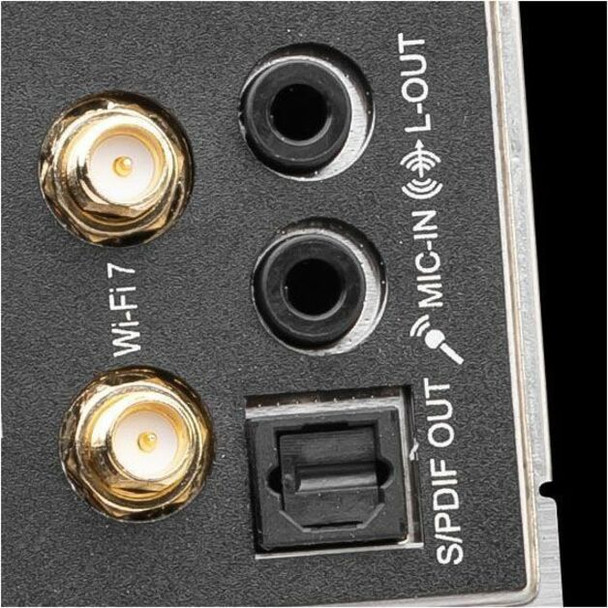

Audio Connectors
Flash BIOS Button
Thunderbolt^TM 4 40Gbps (Type-C)
HDMI^TM
USB 2.0
USB 10Gbps Type-A
USB 10Gbps Type-C
Wi-Fi / Bluetooth
S/PDIF-OUT OPERATING SYSTEM
Support for Windows 11 64-bit PCB Info
ATX
243.84mmx304.8mmItem Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
5.50 lb

Warranty Information
3years
