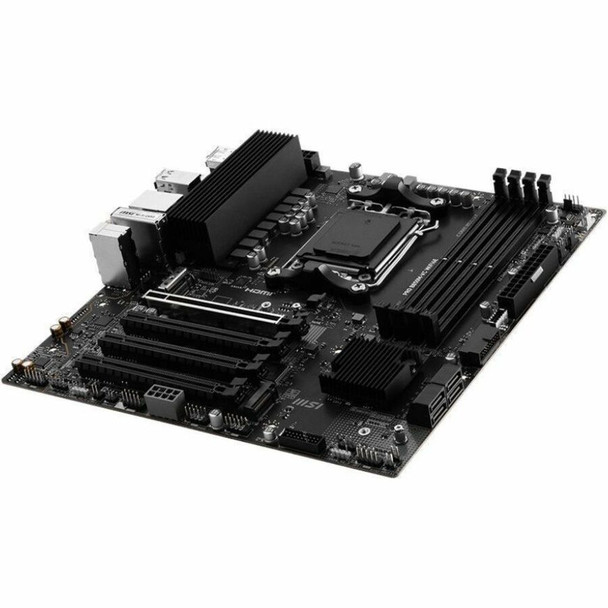

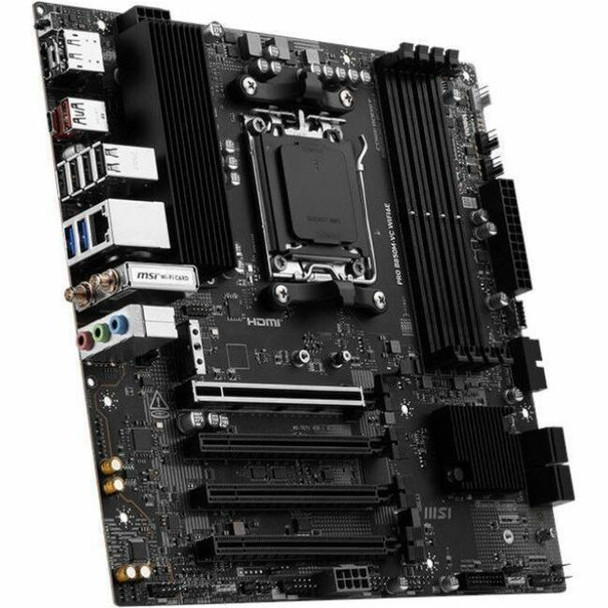

MSI Pro PRO B850M-VC WIFI6E Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Micro ATX (300928)

This item is brand-new, factory sealed.

PRO B850M-VC WIFI6E
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5
Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK are built for high-performance system and non-stop work
EZ DIY: EZ PCIe Clip II
Fast Game experience: PCIe 5.0 slot and Gen 5 x4 M.2
5G LAN with Wi-Fi 6E Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experienceChipset
AMD B850CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
The DIMM slots on this motherboard only have single-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit https://www.msi.com/support/.Onboard Graphics
1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot
4x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)Audio
Realtek ALC897
7.1-Channel High Definition AudioStorage
3x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
4x SATA 6G (Qty)
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4
Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
RAID 5 configuration is only supported by Ryzen 9000 series processors.USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)LAN
Realtek 8126VB 5G LANInternal IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x PUMP_SYS Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C portsWIRELESS LAN AND BLUETOOTH
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Wi-Fi 6GHz band support may depend on every countrys regulations and will be ready in Windows 10 build 21H1 and Windows 11.
The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendors website for details.LED FEATURE
4x EZ Debug LED
1x EZ Memory Detection LEDBACK PANEL PORTS
Clear CMOS Button
DisplayPort
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI
USB 10Gbps Type-C
USB 5Gbps Type-AOPERATING SYSTEM
Support for Windows 11 64-bitPCB Info
mATX
243.84mmx243.84mmItem Dimension (L"xW"xH")
11 x 11 x 4

Weight
4 lbs

Warranty Information
3 Years
