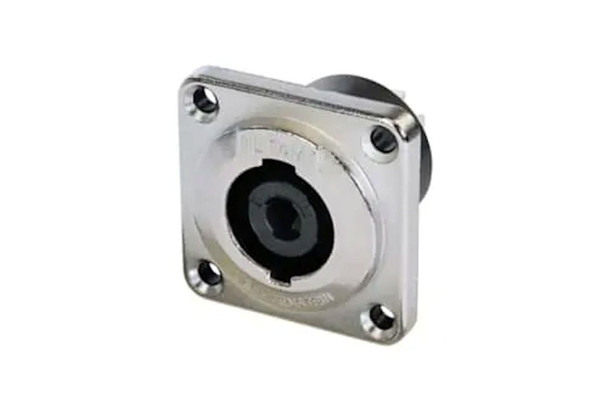

Neutrik NLT4MPXX Metal 4 Pin Female Connector
(No reviews yet)
Write a Review
- SKU:
- 20636406
- MPN:
- nlt4mpxx
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/12/2026 05:19:12 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $20.91 each 20.91 |
| Buy 3 | and pay only $18.31 each 18.31 |
| Buy 4 | and pay only $16.69 each 16.69 |
| Buy 5 - 9 | and pay only $15.43 each 15.43 |
| Buy 10 or above | and pay only $13.23 each 13.23 |
- Stock Update:
- 02/12/2026 05:19:12 AM PST
Description
This item is brand-new, factory sealed.
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. * The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.*
* Gender male
* Electrical
* Contact resistance < 2 mO
* Dielectric strength 2.8 kVac
* Insulation resistance >0.1 GO (after dampheat)
* Rated current per contact 30 A rms continuous
* Rated voltage 250 V ac
* Attention speakON is NOT to be used as an AC mains or power supply connector!
* Mechanical
* Lifetime > 5000 mating cycles
* Termination 1/4-in flat tabs
* Locking device Quick Lock
* Mounting direction Rear / front mounting
* Chassis shape square G-size flange
* Layout four thru holes
* Material
* Contact plating Ag
* Contacts Copper Alloy
* Shell Zinc diecast, Ni plated
* Insert Polyamide (PA 66)
* Environmental
* Temperature range -30 DegreesC to +80 DegreesC
* Flammability UL 94 V-0
* Protection class IP 54 (mated condition)
