Newmar

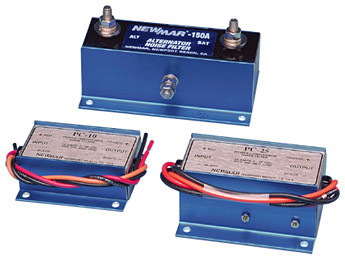

Newmar 150-a Alternator Filter
- SKU:
- 20801712
- MPN:
- 150-a
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/03/2026 05:04:29 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 7 or above | and pay only $246.43 each 246.43 |
- Stock Update:
- 02/03/2026 05:04:29 PM PST
Description
This item is brand-new, factory sealed.
Noise FiltersThe interference or electronic "noise" generated by alternators, ignition systems, motors, etc., can render a vehicle or vessel's radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or "hash" on video displays.
These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source.
Filtered Frequencies
- Model 150A: 70 kHz - 100 MHz
- Models PC-10 and PC-25: Audio - 200 MHz
Filter Features:
- Heavy duty aluminum construction
- Operate on 6-48 VDC systems
- Integral mounting flanges for secure installation
- Brass stud connectors on alternator filters accommodate high current cables and terminals
- Color coded wire leads on all other models make in-line installation easy
| Model | Rating | Installation Location | Size | Weight | ||
| H | W | D | ||||
| 150-A | 150 Amp | In the alternator output lead | 3.25" | 5.75" | 3.25" | 3 lbs. |
| (8.2 | 14.6 | 8.2cm | 1.4Kg.) | |||
| PC-10 | 10 Amp | In the + and - power leads close to affected equipment | 1.25" | 4.25" | 3" | 1 lb. |
| (3.2 | 10.8 | 8.2cm | .5Kg.) | |||
| PC-25 | 25 Amp | Same as PC-10 | 2" | 4.25" | 3.25" | 2 lbs. |
| (5.1 | 10.8 | 8.2cm | .9 Kg.) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Newmar 150-a Alternator Filter
$250.84
