NZXT CMH92FWR1 H9 Flow RGB ATX Mid-Tower PC Case Dual Chamber White CMH92FWR1_51

This item is brand-new, factory sealed.

H9 Flow RGB

Large Dual-Chamber Mid-Tower ATX Airflow Case with RGB

Overview

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.

Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)

Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

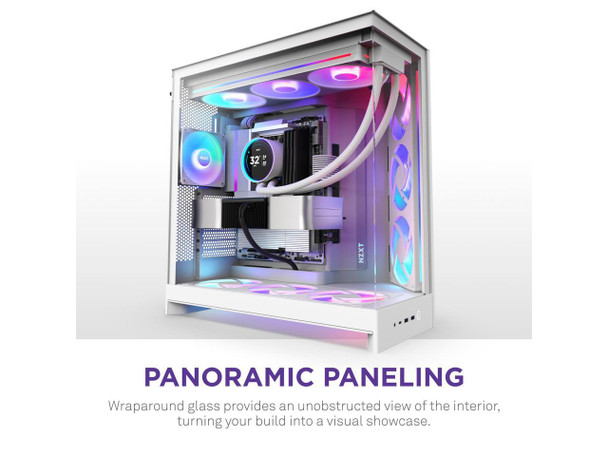

Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.

Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

Easy Cable Management: Extra-wide channels, built-in straps, and tie-down points make cable routing effortless.

Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.General
Enclosure Type
Mid-tower
Motherboard Compatibility
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero)
Yes (ATX)
Materials
SGCC steel, clear tempered glass (white), tinted tempered glass (black)Clearance
CPU Cooler Height
165 mm
GPU Length
Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length
200 mm
Top Radiator and Fan Thickness
Up to 80 mm (360 mm) Up to 62 mm (420 mm)Front I/O Ports
USB 3.2 Type-A
2
USB 3.2 Gen2x2 Type-C
1
Headset Jack
1Expansion Slots
Standard
7
Vertical
0Drive Bays
2.5"
4+2
3.5"
2Fan Support
Front-Right
3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
Top
3 x 120 mm / 3 x 140 mm
Bottom
3 x 120 mm / 3 x 140 mm
Rear
1 x 120 mm (1 x F120Q (CV) included)Radiator Support
Front-Right
Up to 420 mm
Top
Up to 420 mm
Bottom
Up to 360 mm
Rear
Up to 120 mmFan Specs - F420 RGB Core
Model
F420 RGB Core
Speed
2,000 +/- 200 RPM
Airflow
98.61 CFM
Static Pressure
3.2 mmH2O
Noise
34.5 dBA
Fan Connector
8-pin w/ splitterFan Specs - F120Q (CV)
Model
F120Q (CV)
Speed
1,350 +/- 150 RPM
Airflow
60.2 CFM
Static Pressure
1.05 mmH2O
Noise
24.1 dBA
Fan Connector
3-pinItem Dimension (L inchxW inchxH inch)
24 x 16 x 23

Weight
64.00lb

Warranty Information
2 years
