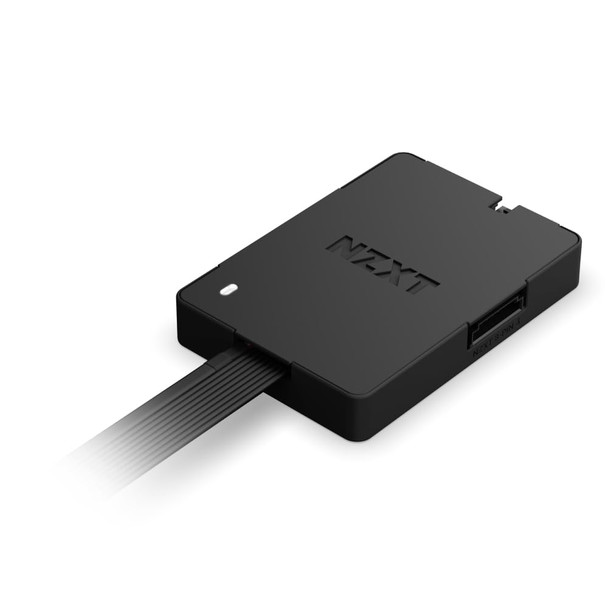

NZXT ACCRFR1B1 Digital RGB and Fan Speed Controller Hub

This item is brand-new, factory sealed.

Overview
The NZXT Control Hub streamlines fan and RGB lighting management. Connect and customize your setup for optimal performance and vibrant visuals through NZXT CAM software.
Conveniently operate a full build of RGB Core Single-Frame Fans using the 8-pin PWM and RGB combo headers.
Fine-tune speeds for up to five PWM fans (including single-frame fan units), with Zero RPM mode for silent operation during low loads.
Synchronize lighting effects on up to five NZXT RGB components to create a cohesive, system-wide look.
Adjust fan speeds, personalize lighting, and create custom profiles via NZXT CAM software, which automatically detects each connected device.
Secure the controller magnetically or use the included 3M Dual Lock Reclosable Fasteners.
The included splitter cables have both 4-pin PWM and 4-pin RGB connectors, ensuring it works with any type of NZXT fan.Output Channels
Fan
3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)
RGB
4 x NZXT 8-pin / 1 x NZXT RGB
Max LED Support
Each NZXT 8-pin channel supports up to 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to 5 NZXT devices.Installation
Mounting Options
Magnetic housing, 3M Dual Lock Reclosable Fasteners, or 2.5" SSD mounting screws
PSU Connector
8-pin PCIe Power
Motherboard Connector
Internal USB 2.0System Requirements
Internal Header
USB 2.0
Operating System
Windows 10/11
Software
NZXT CAMItem Dimension (L"xW"xH")
6 x 5 x 2

Weight
1 lb

Warranty Information
2 Years
