Nzxt CCH52FW01 Compact ATX Mid Tower Gaming Case

This item is brand-new, factory sealed.

Overview

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support-all in a compact mid-tower form factor.

The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).

Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.

Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.

Equipped with two 120mm Quiet Airflow fans (CV) -one in front, one in rear-for solid out-of-the-box performance.

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

H5 Flow

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

More Air to the GPU

Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

Fits Large Radiators

Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

Optimized for Airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

Pre-Installed Fans*

Equipped with two 120mm Quiet Airflow fans (CV)-one in front, one in rear-for out-of-the-box cooling.

*Case Version (3-pin DC)

Easy Cable Management

Effortlessly route and conceal cables using the wide channels, hooks, and straps

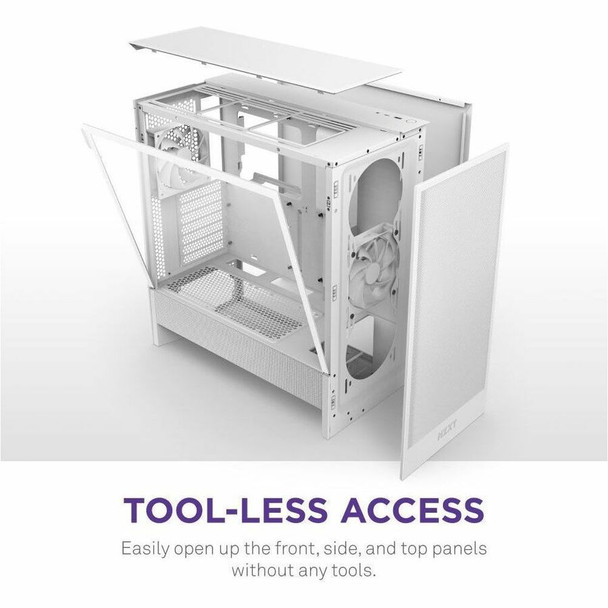

Tool-less Access

Easily open up the front, side, and top panels without any tools.

Strong and Sleek

Crafted from thick steel and tempered glass for long-lasting quality.Key Specs
Motherboard Support
E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type
Mid-Tower
Case Material
SGCC Steel, Ultra-Clear Tempered Glass (White)Compatibility and Clearance
CPU Cooler Height
Up to 170 mm
GPU Length
Up to 410 mm
PSU Length
Up to 200 mm
Cable Management
Up to 28.7 mm
Top Radiator
Up to 240 mm (280 mm with low-profile memory)
Top Mounted Radiator + Fan Thickness
Up to 55 mmFront Ports
USB 3.2 Type-A
1
USB 3.2 Gen 2x2 Type-C (20 Gbps)
1
Headset Audio Jack
1Expansion Slots
Standard
7
Vertical
0Drive Bays
2.5"
2
3.5"
1Fan Support
Front
3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
Top
2 x 120 mm / 2 x 140 mm
Bottom
2 x 120 mm
Rear
1 x 120 mm (1 x F120Q Case Version included)Radiator Support
Front
Up to 360 mm
Top
Up to 240 mm (280 mm with low-profile memory only)Fan Specs - F120Q (Case Version)
Model
F120Q (Case Version)
Speed
1,350 +/- 150 RPM
Airflow
60.2 CFM
Static
1.05 mm-H2O
Noise
24.1 dBA
Fan Connector
3-pin DCItem Dimension (L"xW"xH")
23 x 13 x 21

Weight
46 lbs

Warranty Information
2 Years
