NZXT

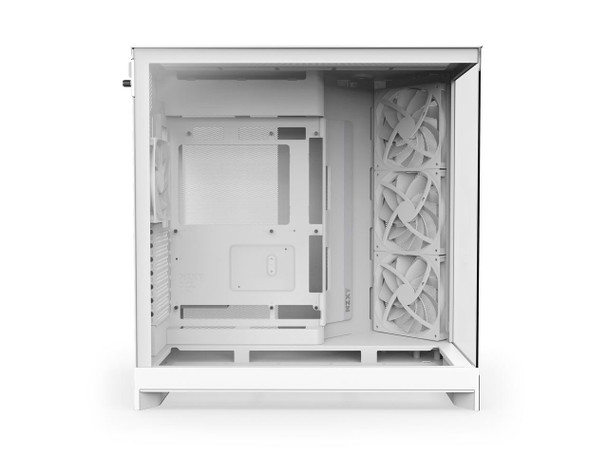

NZXT CMH92FW01 ATX Mid-Tower Airflow PC Case
- SKU:
- 21108453
- MPN:
- cm-h92fw-01
- Availability:
- Usually ships the same or next business day.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/16/2026 09:11:19 PM PST
- Stock Update:
- 03/16/2026 09:11:19 PM PST
Description
This item is brand-new, factory sealed.
NZXT H9 Flow (2025) Large Dual-Chamber ATX Mid-Tower Airflow PC Case Includes 3 x 140mm & 1 x 120mm Fans 420mm Radiator Support Tempered Glass Back-Connect Ready White- DUAL-CHAMBER DESIGN Separates main components from the PSU and drives for improved thermal performance and cable management.
- OPTIMIZED AIRFLOW Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- PRE-INSTALLED FANS Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- TEN-FAN CAPACITY Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- PANORAMIC VIEW Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- LARGE RADIATORS & GPUS Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- EASY CABLE MANAGEMENT Extra-wide channels, built-in straps, and tie-down points make cable routing effortless.
- BACK-CONNECT READY Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
- Brand: ?NZXT
- Series: ?NZXT H9
- Item model number: ?CM-H92FW-01
- Item Weight: ?37.9 pounds
- Package Dimensions: ?23.5 x 23 x 16 inches
- Color: ?White
- Manufacturer: ?NZXT
The H9 Flow (CM-H92FW-01) is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
Specs
| Physical Characteristics | |
| Product Material |
|
| Form Factor | Mid-tower |
| Weight (Approximate) | 27.47 lb |
| Cooler Type | Fan Cooler |
| Product Color | White |
| Height | 19.9" |
| Color Family | White |
| Maximum GPU Length | 18.07" |
| Maximum PSU Length | 7.87" |
| Width | 12.4" |
| Depth | 18.9" |
| Maximum CPU Cooler Height | 6.50" |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Microphone | Yes |
| Total Number of Audio Out Ports | 1 |
| USB Port Details |
|
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Front USB | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Bays | |
| Number of Internal 2.5" Bays | 6 |
| Number of Total Expansion Bays | 8 |
| Number of Internal 3.5" Bays | 2 |
| General Information | |
| Brand Name | NZXT |
| Manufacturer Website Address | http://www.nzxt.com |
| Marketing Information | ABOUT THE PRODUCT The H9 Flow is a high-performance mid-tower case that delivers high-performance cooling wrapped in a striking aesthetic. Its spacious dual-chamber layout optimizes airflow and simplifies cable management, while wraparound tempered glass panels showcase your build from any angle. Support for dual 420 mm radiators and multiple 140 mm fans, including strategically angled front-right fans, ensures top-tier cooling for even the most demanding hardware. |
| Product Type | Computer Case |
| Product Name | Large Dual-Chamber Mid-Tower ATX Airflow Case |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | CM-H92FW-01 |
| Product Model | CM-H92FW-01 |
| Product Line | H9 Flow |
| Technical Information | |
| Motherboard Supported |
|
| Installed Fan Size |
|
| Installed Fan Size Details |
|
| Window Panel Location |
|
| Number of Fans Supported | 10 |
| Features |
|
| Window Panel | Yes |
| Fan Size Supported |
|
| Number of Fans Installed | 4 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
NZXT CMH92FW01 ATX Mid-Tower Airflow PC Case
$142.39
