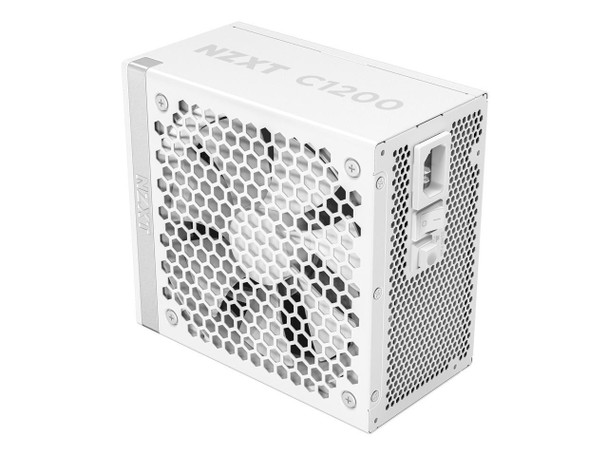

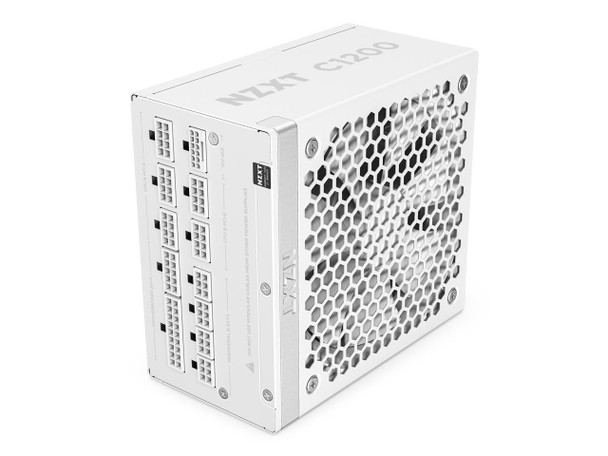

NZXT PA2G2BWUS 1200W ATX 3.1 Fully Modular Power Supply 80 Plus Gold White

This item is brand-new, factory sealed.

C1200 Gold ATX 3.1

1200 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU

Overview

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.

Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA GeForce RTX 50 Series graphics cards.

135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.

100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.

Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.

Compact form factor frees up valuable room for cable management and more case airflow.

Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.

NZXT Gold ATX 3.1 PSU

ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.

ATX 3.1 Compliant

ATX 3.1 powers high-performance components with stable delivery and improved efficiency.

RTX 50 Series Ready

12V-2x6 cable delivers up to 600 watts of power to NVIDIA GeForce RTX 50 Series GPUs.

Certified for High Efficiency & Low Noise

80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.

100% Japanese Capacitors

Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

Fully Modular

Only connect the cables needed to keep a tidy build. Full cable set included.

Space-Saving Size

Compact form factor frees up room for cable management and improved airflow.Output Connectors
24-pin ATX Power Cable
1
4+4-pin CPU Power Cable
1
8-pin CPU Power Cable
1
6+2-pin PCIe Power Cable
3
16-pin (12+4) 12V-2x6 PCIe Cable
1
SATA Cable
12
Peripherals Cable
4Cable Specs
24-pin ATX Power Cable
600mm with nylon sleeving
4+4-pin CPU Power Cable
700mm with nylon sleeving
8-pin CPU Power Cable
700mm with nylon sleeving
6+2-pin PCIe Power Cable
650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable
650mm with nylon sleeving
SATA Cable
500 + 150mm
Peripherals Cable
500 + 150mmAC Input Rating
100 - 240Vac
14A 50Hz-60Hz
200 - 240Vac
7A 50Hz-60Hz (China and South Korea)DC Output Rating
3.3V / +5V
22A (120W)
12V
100A (1200W)
5Vsb
3A (15W)
Total
1200WEnergy Efficiency
Rating
80 Plus Gold
10% loading
85% at115Vac
20% loading
90.1% at 115Vac
50% loading
91.6% at 115Vac
100% loading
88.7% at 115VacElectrical Features
PF Correction
Active at 0.99
Protections
OVP / UVP / SCP / OTP / OPP / OCPFan Specs
Dimensions
135 x 135 x 25 mm
Speed
2300 +/- 10% RPM
Airflow
93.02 CFM (Min.)
Noise
44.5 dBA max
Bearing
Fluid Dynamic Bearing (FDB)Operation
MTBF
100,000 hours
Temperature
0 - 50 ^oCGeneral
Material(s)
Steel, PCB and Plastic
Compliance Standard
ATX12V v3.1 / EPS12V v2.92
Regulation and Certification
FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65Item Dimension (L"xW"xH")
13 x 9 x 5

Weight
7.94 lbs

Warranty Information
2 years
