TP Link

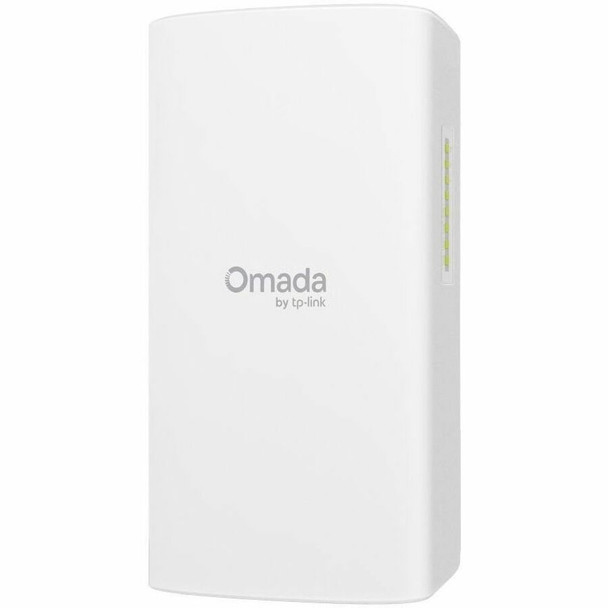

Omada Flex Dual Band Wi-Fi 5 IEEE 802.11a/n/ac 867 Mbit/s Wireless Bridge - Indoor/Outdoor (flexbridge5)
- SKU:
- 21621440
- MPN:
- flexbridge5
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/09/2026 12:55:00 AM PST
- Stock Update:
- 08/09/2026 12:55:00 AM PST
Description
This item is brand-new, factory sealed.
Flexible Bridge Point for 3.1 mi (5 km) Transmission
Delivers speeds up to 867 Mbps on 5 GHz with integrated 17 dBi high-gain dual-polarized directional antennas for long-range, uninterrupted wireless transmission.
Flex Bridge Multipoint Deployment Options | Flex Bridges Working Together
Supports point-to-point and multipoint bridging between Flex Bridges, optimized at around 8 connected nodes.
Flex Bridges Connected to a Sector Bridge
When paired with a Sector Bridge hub, supports multipoint deployments of up to 32 Flex Bridges.
Powering Surveillance with 2x PoE Out Ports

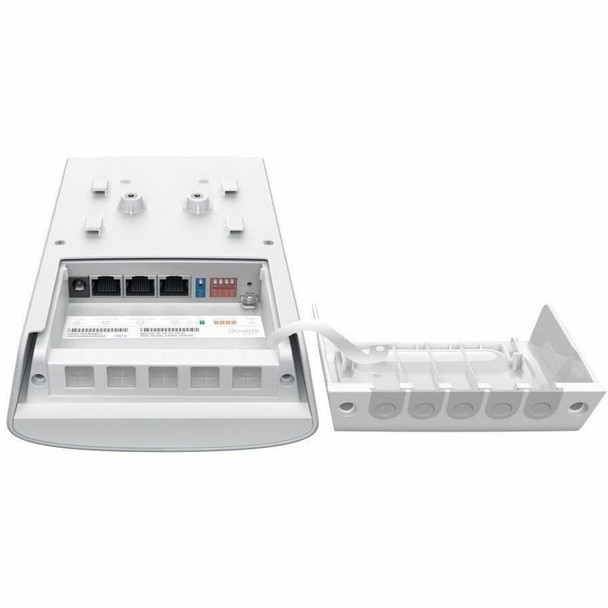

Features 3 gigabit ports, including 1 PoE In to power the bridge and 2 PoE Out ports delivering up to 10W on a single port or 5W per port when both are used, easily powering IP cameras and simplifying surveillance network expansion.
Role & DIP Switches for Simple Pairing
Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
Robust Outdoor Design for Long-Lasting Reliability
- IP66 Weatherproof
- 6 kV Protection
- -40 °C to 70 °C (-40 °F to 158 °F) Working Range
Versatile Power Management: Integrated Edge Power for Any Scenario
Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.

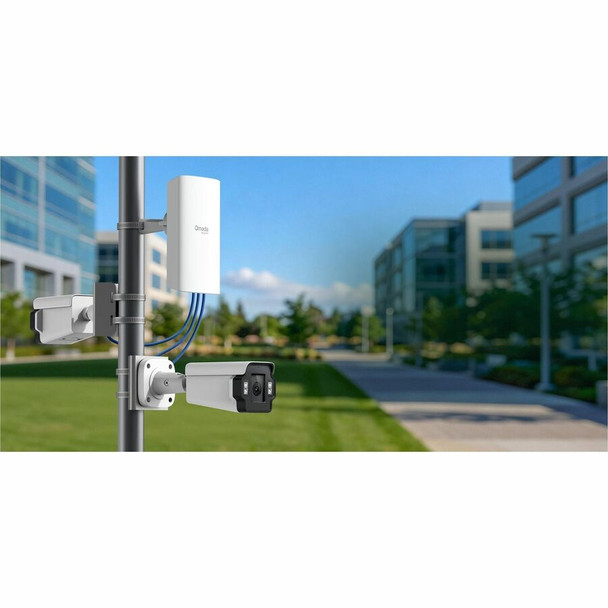

Perfect for Surveillance and More
- Business Park
- Resort
- Port
- Factory
Package Contents:
- Flex Bridge 5
- Installation Guide

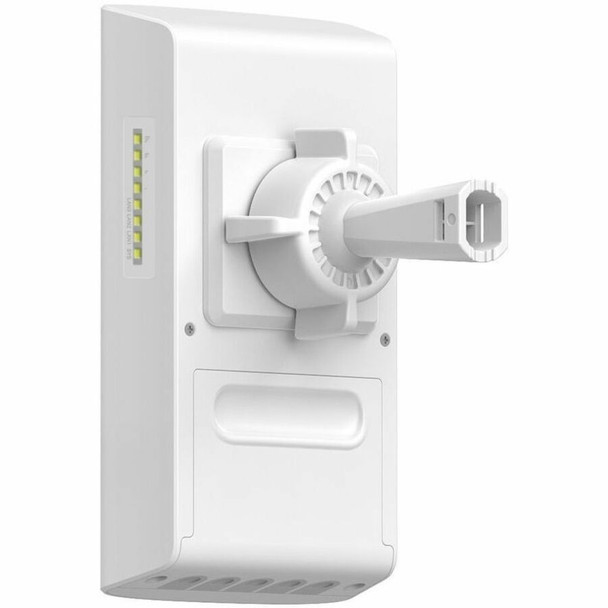

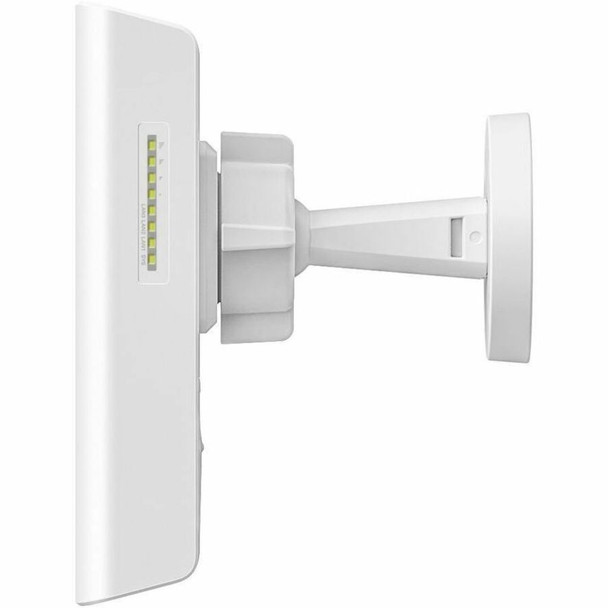

- Mounting Kit
- Passive PoE Adapter
- Power Cord
Features
- Flex Bridge 5
- Installation Guide
- Mounting Kit
- Passive PoE Adapter
- Power Cord
Certifications & Standards:
- CE
- FCC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Power Consumption | 12 W |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 1.30 lb |
| Height | 4.7" |
| Width | 8.4" |
| Antenna Form Factor | Internal |
| Depth | 2" |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| PoE (RJ-45) Port | Yes |
| Number of Network (RJ-45) Ports | 3 |
| PoE PD Port | Yes |
| General Information | |
| Brand Name | Omada |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | Flexible Bridge Point for 3.1 mi (5 km) Transmission Delivers speeds up to 867 Mbps on 5 GHz with integrated 17 dBi high-gain dual-polarized directional antennas for long-range, uninterrupted wireless transmission. Flex Bridge Multipoint Deployment Options | Flex Bridges Working Together Supports point-to-point and multipoint bridging between Flex Bridges, optimized at around 8 connected nodes. Flex Bridges Connected to a Sector Bridge When paired with a Sector Bridge hub, supports multipoint deployments of up to 32 Flex Bridges. Powering Surveillance with 2x PoE Out Ports Features 3 gigabit ports, including 1 PoE In to power the bridge and 2 PoE Out ports delivering up to 10W on a single port or 5W per port when both are used, easily powering IP cameras and simplifying surveillance network expansion. Role & DIP Switches for Simple Pairing Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity. Robust Outdoor Design for Long-Lasting Reliability IP66 Weatherproof 6 kV Lightning Protection -40 °C to 70 °C (-40 °F to 158 °F) Working Range Versatile Power Management: Integrated Edge Power for Any Scenario Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power. Perfect for Surveillance and More Business Park Resort Port Factory |
| Product Type | Wireless Bridge |
| Product Name | Flex Bridge 5 |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | Flex Bridge 5 |
| Product Line | Flex |
| Packaged Quantity | 1 |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 5 |
| Communication Protocols |
|
| Technical Information | |
| Ingress Protection (IP) Rating | IP66 |
| Wireless LAN Standard | IEEE 802.11a/n/ac |
| Number of Internal Antennas | 3 |
| Network Band | Dual Band |
| Wireless Transmission Speed | 867 Mbit/s |
| Total Number of Antennas | 3 |
| MIMO Technology | Yes |
| Frequency Band |
|
| Indoor/Outdoor | Indoor/Outdoor |
| MIMO Type | Multi User MIMO |
