Omnitron Electronics

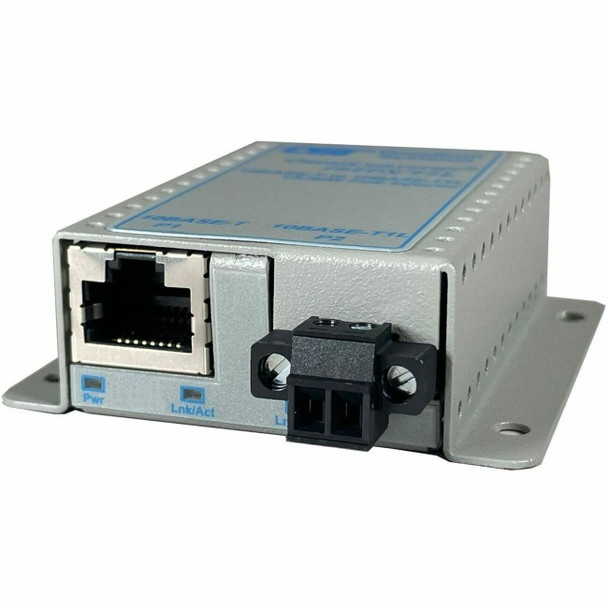

OmniConverter 10T/T1L 10BASE-T to 10BASE-T1L Media Converter RJ-45 T1L Terminal, Wallmount, Wide Temp (2010-000-dz)
- SKU:
- 21465256
- MPN:
- 2010-000-dz
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/08/2026 09:28:12 PM PST
- Stock Update:
- 04/08/2026 09:28:12 PM PST
Description
This item is brand-new, factory sealed.
The OmniConverter 10T/T1L is a family of IEEE 802.3cg compliant products that converts 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.
The OmniConverter 10T/T1L features one 2-pin terminal block 10BASE-T1L IEEE 802.3cg compliant port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates. The 10TPS/T1L supports IEEE 802.3at (PoE+) on the 10BASE-T RJ-45 port.
The OmniConverter 10T/T1L achieves seamless Ethernet connectivity to IEEE 802.3cg compliant devices, such as field transmitters, building controllers or cameras.
The modules are plug-and-play devices that support 10Mbps data rates and full duplex for simple in-line installation to instantly extend network distances for industrial and inbuilding automation applications.
They are available as a standalone unit with or without integrated mounting brackets. It can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector.
Package Contents:
- OmniConverter 10T/T1L 10Base-T to 10Base-T1L Media Converter RJ-45 T1L 2-Pin Terminal
- US Power Supply
- User Manual
Features
- OmniConverter 10T/T1L 10Base-T to 10Base-T1L Media Converter RJ-45 T1L 2-Pin Terminal
- US Power Supply
- User Manual
Certifications & Standards:
Safety:
- UL 62368-1
- UL 60950-1
- IEC 62368-1
- IEC 60950-1
- CUL CSA C22.2 No. 60950-1
- EN 60950-1:2006
- CE Mark
- UKCA
EMI:
- FCC 47CFR, Part 15 Class A
- AS/NZS 3548
- AS/NZS 4417.1 and AS/NZS 4417.2
- ICES-003 Issue 3
- EN 55032/CISPR 22 and EN55035
- EN61000-3-2
- VCCI V3/2001.04 (CISPR 22A:1997, Class A)
EMC:
- IEC/EN61000-4-2
- IEC/EN61000-4-3
- IEC/EN61000-4-4
- IEC/EN61000-4-5
- IEC/EN61000-4-6
- IEC/EN61000-4-8
- IEC/EN61000-4-11
ACT:
- BAA
- NDAA
TAA Compliant:
Yes
Application/Usage:
Industrial
Camera
Network
Field Transmitter
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
United States
Specs
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 12 oz |
| Height | 0.8" |
| Width | 2.1" |
| Depth | 2.5" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | Omnitron Systems |
| Package Type | Retail |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Marketing Information | The OmniConverter 10T/T1L is a family of IEEE 802.3cg compliant products that converts 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km. The OmniConverter 10T/T1L features one 2-pin terminal block 10BASE-T1L IEEE 802.3cg compliant port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates. The 10TPS/T1L supports IEEE 802.3at (PoE+) on the 10BASE-T RJ-45 port. The OmniConverter 10T/T1L achieves seamless Ethernet connectivity to IEEE 802.3cg compliant devices, such as field transmitters, building controllers or cameras. The modules are plug-and-play devices that support 10Mbps data rates and full duplex for simple in-line installation to instantly extend network distances for industrial and inbuilding automation applications. They are available as a standalone unit with or without integrated mounting brackets. It can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector. |
| Product Type | Transceiver/Media Converter |
| Product Name | OmniConverter 10T/T1L 10Base-T to 10Base-T1L Media Converter RJ-45 T1L 2-Pin Terminal |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 2010-000-DZ |
| Product Model | 2010-000-DZ |
| Product Line | OmniConverter |
| Media & Performance | |
| Maximum Distance Supported | 1 km |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Network Technology |
|
