Omnitron Electronics

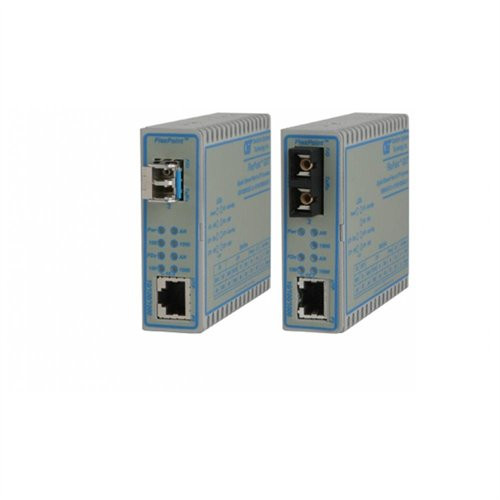

Omnitron Flexpoint Gx/t Gigabit Ethernet Media Converter - 1 X Rj-45 - 10/100/1000base-t, 1000base-x - 1 X Sfp (mini-gbic) - External (47191) (4719-1)
(No reviews yet)
Write a Review
- SKU:
- 19908307
- MPN:
- 4719-1
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
The FlexPoint GX/T is a 10/100/1000BASE-T UTP to 1000BASE-X modular fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.
The FlexPoint GX/T also supports SC and ST fixed fiber connectors for multimode, single-mode fiber; and single-mode single-fiber models are available.
Both the fiber port and the UTP port support auto-negotiation, an IEEE standard which defines how all the communicating devices automatically perform their configuration functions. Auto-negotiation achieves the best possible mode of operation (speed, duplex mode and Pause mode) between the devices.
- The FlexPoint GX/T is a 10/100/1000 copper to 100/1000* modular fiber media converter
- Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T, 100BASE-FX* and 1000BASE-X specifications
- Fiber port supports multimode and single-mode fiber with ST and SC connectors and single-fiber with SC connectors
- Supports dual fiber and single-fiber 100BASE-FX or 1000BASE-X SFP transceivers for standard or CWDM wavelengths
- Both the fiber and UTP ports support auto-negotiation
- Provides Remote Fault Indicators to signal loss of link for Far-End Fault and Link Fault conditions
- UTP port supports 10/100/1000Mbps and Half/Full-Duplex
- Auto or manually configured Pause function for flow control
- Supports jumbo frames up to 10,240 bytes
- Loopback mode supports end-to-end testing
- User-selectable Link Modes for quick fault detection
- Diagnostic and DIP-switch configurations are displayed with status LEDs for quick and easy installation
- Tabletop, wall-mounted, rack-mounted in a 5-Module shelf or in a 14-Module power-redundant chassis options
- Lifetime Warranty and free 24/7 Technical Support
Package Contents:
- FlexPoint GX/T
- US Power Supply - 110-120VAC / 60Hz
- User Manual
Features
Package Contents:
Yes
United States
- FlexPoint GX/T SFP US AC Powered
- US Power Supply - 120Volt / 60Hz
- User Manual
Certifications & Standards:
- EIA/TIA 568A/B
- UL
- CE
- FCC Class A
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3z 1000BASE-X
- IEEE 802.3ab 1000BASE-T
Additional Information:
Input Voltage:
- 5-32VDC via 2.5mm barrel (0.3A @ 9VDC)
- 5VDC via Molex connector (0.5A @ 5VDC)
Environmentally Friendly:
Yes
Country of Origin:
United States
Specs
| Power Description | |
| Input Voltage | 120 V AC |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 6 oz |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| USB | No |
| DVI | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Parallel Port | No |
| Number of Network (RJ-45) Ports | 1 |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Number of SFP Slots | 1 |
| Expansion Slot Type | SFP |
| General Information | |
| Brand Name | Omnitron Systems |
| Package Type | Retail |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Marketing Information | The FlexPoint GX/T is a 10/100/1000BASE-T UTP to 1000BASE-X modular fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure. The FlexPoint GX/T also supports SC and ST fixed fiber connectors for multimode, single-mode fiber; and single-mode single-fiber models are available. Both the fiber port and the UTP port support auto-negotiation, an IEEE standard which defines how all the communicating devices automatically perform their configuration functions. Auto-negotiation achieves the best possible mode of operation (speed, duplex mode and Pause mode) between the devices. The FlexPoint GX/T is a 10/100/1000 copper to 100/1000* modular fiber media converter Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T, 100BASE-FX* and 1000BASE-X specifications Fiber port supports multimode and single-mode fiber with ST and SC connectors and single-fiber with SC connectors Supports dual fiber and single-fiber 100BASE-FX or 1000BASE-X SFP transceivers for standard or CWDM wavelengths Both the fiber and UTP ports support auto-negotiation Provides Remote Fault Indicators to signal loss of link for Far-End Fault and Link Fault conditions UTP port supports 10/100/1000Mbps and Half/Full-Duplex Auto or manually configured Pause function for flow control Supports jumbo frames up to 10,240 bytes Loopback mode supports end-to-end testing User-selectable Link Modes for quick fault detection Diagnostic and DIP-switch configurations are displayed with status LEDs for quick and easy installation Tabletop, wall-mounted, rack-mounted in a 5-Module shelf or in a 14-Module power-redundant chassis options Lifetime Warranty and free 24/7 Technical Support |
| Product Type | Transceiver/Media Converter |
| Product Name | FlexPoint GX/T SFP US AC Powered |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 4719-1 |
| Product Model | 4719-x |
| Product Series | GX/T |
| Product Line | FlexPoint |
| Media & Performance | |
| Media Type Supported |
|
| Network & Communication | |
| Ethernet Technology |
|
| Network Technology |
|
