Pacer Group TDT06F-6RS Pacer Dt Deutsch Plug Repair Kit - 14-18 Awg [6 Position]
- SKU:
- 20586437
- MPN:
- tdt06f-6rs
- Availability:
- Usually ships the same or next business day. In stock at our FL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/07/2026 05:48:43 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $15.15 each 15.15 |
| Buy 3 | and pay only $14.26 each 14.26 |
| Buy 4 or above | and pay only $13.76 each 13.76 |
- Stock Update:
- 03/07/2026 05:48:43 AM PST
Description
This item is brand-new, factory sealed.
DT Deutsch Plug Repair Kit - 14-18 AWG (6 Position)
Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.
Features:
- Packs include all parts needed to assemble a connector
- One to two extra terminals
- Cavity plugs to seal open circuits
Applications:
- Wire-to-wire applications
- Enclosed connectors offer field-proven reliability and rugged quality
Compliances:
- Ingress Protection (IP) Level: IP68 and IP6K9K
- EU RoHS/ELV
- Standard UL-94 Recognized
Characteristics:
- Wedge locks ensure contact alignment and retention
- Redundant Silicone Seals
- Hand-insertable and removable contacts
Technical Specifications:
- Number of Cavities: 6
- Housing: Rectangular receptacle, plastic reinforced with glass fiber
- Contact Size: 16 (13 amp)
- Wire Size: 14 AWG
- Holds Pin/Socket: Sockets
- Operating Temperature: -55°C to 125°C

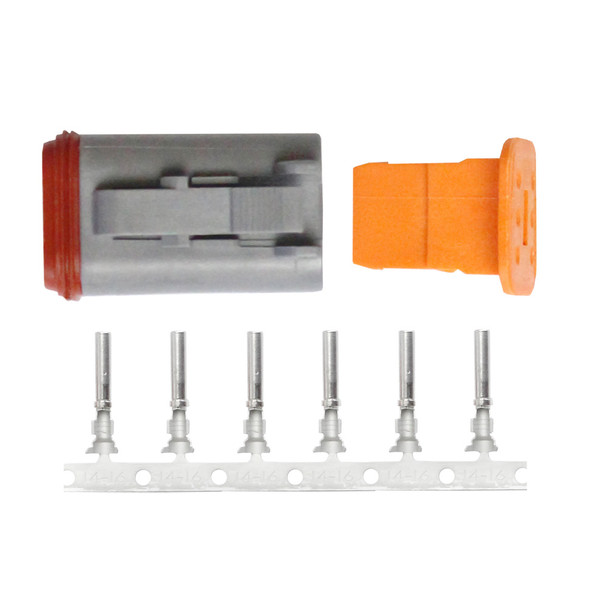

Contents:
- (1) 6 pos. plug
- (1) 6 pos. wedge lock
- (8) sockets
- (3) cavity plugs
