Perle Systems
Perle Systems 07017270 Ids-710hp Managed Poe Switch Perp 8 X 10/100/1000 2 X Sfp 100w Poe
- SKU:
- 18504381
- MPN:
- 07017270
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.

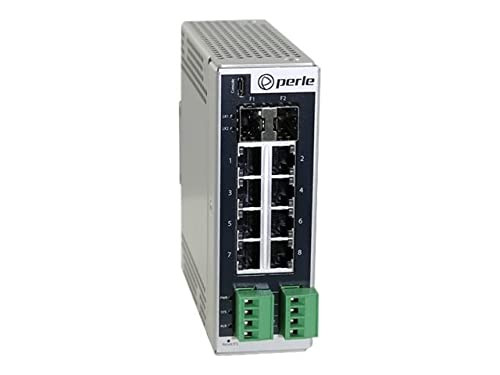

The IDS-710HP is a 10 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Eight 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. The two SFP slots support 10/100/1000 on Copper or 1G/2.5G on Fiber.
In addition to transmitting network data, a the IDS-710HP has a built-in Power over Ethernet injector to supply up to 100W Power over Ethernet (PoE Type 3 & Type 4) per port for a total of 450W across all 8 ports. This is ideal for powering standards-based 802.3af, 802.3at, and 802.3bt compliant devices such as such as pan-tilt-zoom (PTZ) security cameras with heaters, 802.11ax/ac wireless access points, alarms, traffic controllers, sensors, and tracking devices. Classified as Layer 2 Power Sourcing Equipment (PSE), the switch will detect if connected devices are POE-compatible and automatically supply power. Using a PoE Switch saves on installation and maintenance costs by eliminating the need to install multiple pieces of equipment, additional electrical wires, and outlets. This flexibility allows for easy adaptation to network growth and changes.
Package Contents:
- IDS-710HP Ethernet Switch
- Terminal Block
- Installation Guide
Features
- IDS-710HP Ethernet Switch
- Terminal Block
- Installation Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Canada
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | DC |
| PoE (RJ-45) Port | Yes |
| Power Consumption | 480 W |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 1.06 lb |
| Height | 1.8" |
| Width | 5.1" |
| Depth | 5.1" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 8 |
| Modular | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Number of SFP Slots | 2 |
| Expansion Slot Type | SFP |
| General Information | |
| Brand Name | Perle |
| Manufacturer Website Address | http://www.perle.com |
| Marketing Information | The IDS-710HP is a 10 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Eight 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. The two SFP slots support 10/100/1000 on Copper or 1G/2.5G on Fiber. In addition to transmitting network data, a the IDS-710HP has a built-in Power over Ethernet injector to supply up to 100W Power over Ethernet (PoE Type 3 & Type 4) per port for a total of 450W across all 8 ports. This is ideal for powering standards-based 802.3af, 802.3at, and 802.3bt compliant devices such as such as pan-tilt-zoom (PTZ) security cameras with heaters, 802.11ax/ac wireless access points, alarms, traffic controllers, sensors, and tracking devices. Classified as Layer 2 Power Sourcing Equipment (PSE), the switch will detect if connected devices are POE-compatible and automatically supply power. Using a PoE Switch saves on installation and maintenance costs by eliminating the need to install multiple pieces of equipment, additional electrical wires, and outlets. This flexibility allows for easy adaptation to network growth and changes. |
| Product Type | Ethernet Switch |
| Product Name | IDS-710HP Ethernet Switch |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 07017270 |
| Product Model | IDS-710HP |
| Media & Performance | |
| Ethernet Technology |
|
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
