Phanteks PH-ES524XTG_DMW01 Cases ph-es524xtg_dmw01 R PHES524XTG_DMW01

This item is brand-new, factory sealed.

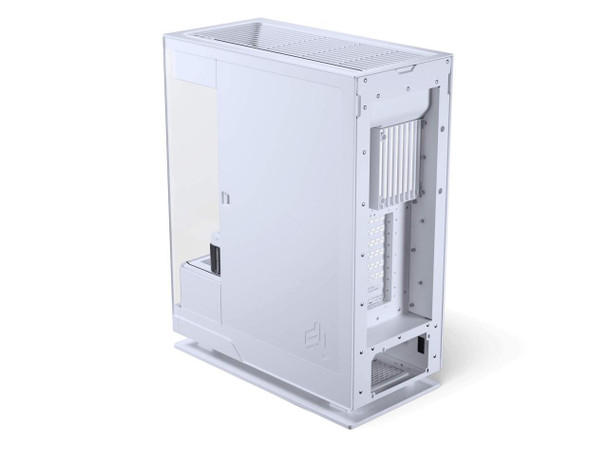

Evolv X2

Redefine the desktop computer

The Evolv X2 redefines the desktop computer with its see-through glass design, aluminum interior, and powerful vertical cooling solution. The entire chassis floats above its base, drawing in surrounding air and channeling it efficiently through the GPU and CPU. Hot air is expelled through the top ventilation, enhancing thermal performance.

The interior of the Evolv X2 has been carefully designed to blend with the hardware components for a fully integrated look, with all cooling components sitting flush into the top and base. The integrated lighting and high-quality aluminum internal panels add flair to your system.


Designed To Cool

Efficient vertical airflow design, drawing fresh air from the bottom and expelling warm air through the top.

Floating chassis design ensures superior cooling by maximizing air intake through the bottom fan positions.

Hot air is exhausted through the top, directed away from the user, thanks to the slanted grill design.


Looking Clean

Mainboard and graphics card sitting front and center.

Cooling fans and radiator sit hidden into the chassis as one.

The large cover door fully hides all cables behind the mainboard.

Supports rear-connect mainboards for a zero-cable build.


Premium Build Quality

Super strong steel and aluminum C-frame design.

Unique see-through chassis showcases the mainboard and graphics card.

Brushed aluminum interior wrapped around the cooling components.General
From Factor
Mid-Tower
Mainboard Support
^noteE-ATX, ATX, Micro-ATX, Mini-ITX
Note: Up to 280 mm wide
Rear Mainboard Support
MSI Project Zero / ASUS BTF / Gigabyte Project Stealth
Materials
Steel chassis, Aluminium panels, Tempered glass window, ABS plastic
Color
Brushed aluminium
Expansion Slots
8
Vertical GPU Support
Yes
Riser cable and bracket sold separately
Internal 2.5" Positions
5
+ 1x 3.5" HDD
Internal 3.5" Positions
2
+ 3x 2.5" SSD
Front I/O
2x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone / Headphone combo
Power button
Reset buttonFans 120 / 140
Total Fans
7 / -
Top
3 / -
Front
- / -
Side
- / -
Rear
1 / -
Bottom
3 / -Radiator 120 / 140
Top
Max. 360 / -
Front
- / -
Rear
- / -
Bottom
- / -Clearance
CPU Cooler
Height
170 mm / 6.69 in
GPU
Length
380 mm / 14.96 in
GPU
Width
170 mm / 6.69 in
Power Supply
250 mm / 9.84 in
Top 360 Radiator
Length x Width x Height
415 x 130 x 32 mm / 16.34 x 5.12 x 1.25 inExtra
Scope of Delivery
1x Evolv X2 chassis
1x Storage bracket (Pre-installed)
1x SSD bracket (Pre-installed)
Accessory Box
30x Mainboard / SSD screws
4x Power supply screws
8x HDD screws
4x Vertical-GPU bracket screws
1x Mainboard stand-off
Screws
6x Zip ties
1x Stand-off removal tool
1x D-RGB mainboard adapter (500 mm)
1x Microfiber clothItem Dimension (L inchxW inchxH inch)
26 x 13 x 22

Weight
36.40lb

Warranty Information
5 Years Limited
