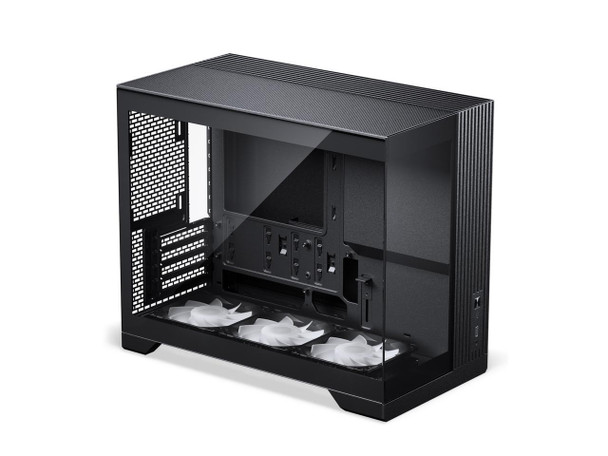

Phanteks PHXT325V_DBK01 XT V3 Compact Micro-ATX Gaming Chassis Black PHXT325V_DBK01

This item is brand-new, factory sealed.

XT V3

Compact Micro ATX Gaming Chassis

The XT V3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.

With its innovative lay-out and strikingly clean design, the XT V3 is a micro-ATX powerhouse ready for any cooling challenge.

Compact Gaming Chassis

Supports a total of nine 120 fans for powerful cooling within this compact chassis.

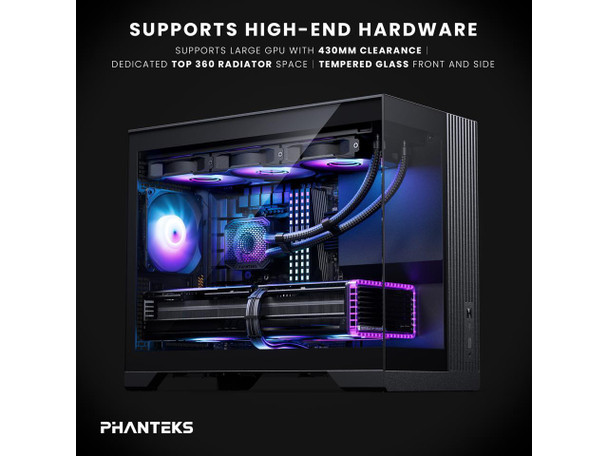

Dedicated 360 radiator space in the top of the chassis.

Triple fan locations in the bottom for direct GPU cooling.

Organized by Design

Spacious cable routing area for clean and efficient management.

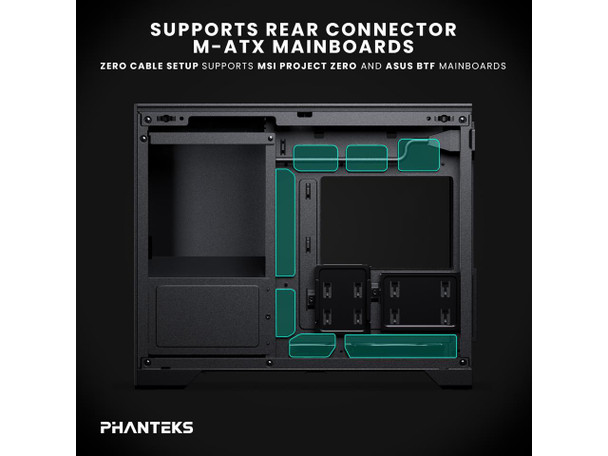

Fully compatible with Rear-Connect mainboards for streamlined builds.

Fan Positions

3x 120 mm top fans.

1x 120 mm rear fan.

3x 120 mm bottom fans.

Radiator Positions

1x 360 top radiator up to 410 x 122 x 60 mm

Storage

SSD Storage Bracket

Supports 2x 2.5? SSD drives.

HDD Storage Bracket

Supports 1x 3.5 HDD drive.General
From Factor
Compact microATX tower
Mainboard Support
Micro-ATX / Mini-ITX
Materials
Steel chassis / Tempered glass window / ABS plastic
Color
Black
Expansion Slots
4
Vertical GPU Support
No
Internal 2.5" Positions
2
+ 1x 3.5" HDD
Internal 3.5" Positions
1
+ 2x 2.5" SSD
Front I/O
1x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone / Headphone combo
Power buttonFans 120 / 140
Total Fans
7 / -
Top
3 / -
Front
- / -
Side
- / -
Rear
1 / -
Bottom
3 / -Radiator 120 / 140
Top
Max. 360 / -
Front
- / -
Rear
- / -
Bottom
- / -Clearance
CPU Cooler
Height
175 mm / 6.88 in
GPU
Length
430 mm / 15.94 in
Without front fans installed
GPU
Width
175 mm / 6.88 in
Power Supply
150 mm / 5.90 in
Top 360 Radiator
Length x Width x Height
410 x 122 x 60 mm / 16.14 x 4.80 x 2.36 inExtra
Scope of Delivery
1x XT V3 chassis
1x SSD bracket Pre-installed
1x HDD bracket Pre-installed
Accessory Box
9x Zip ties
1x Stand-off removal tool
1x GPU support
Screws
17x Mainboard / SSD screws
5x Power supply screws
4x HDD screws
1x Mainboard stand-offItem Dimension (L inchxW inchxH inch)
21 x 13 x 18

Weight
36.00lb

Warranty Information
5 Years Limited
