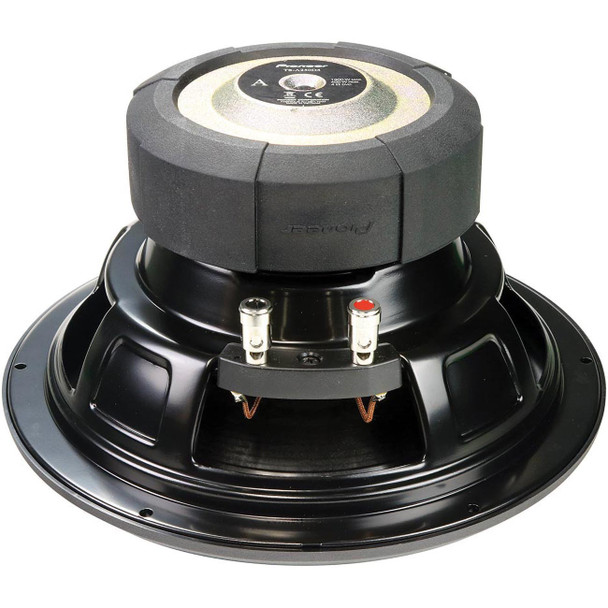

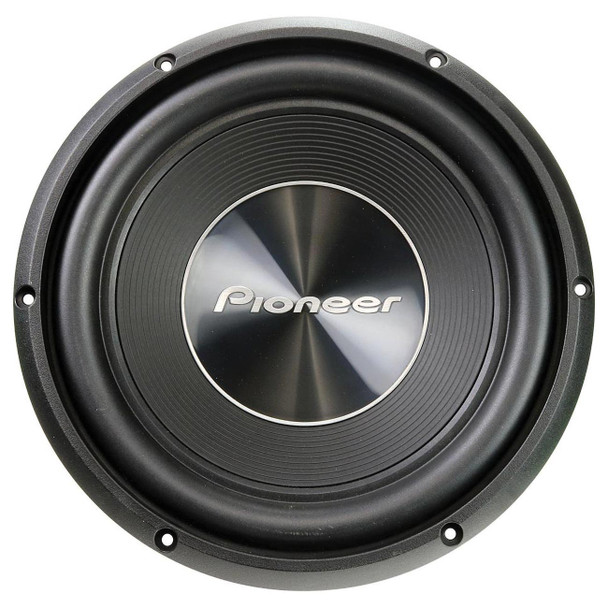

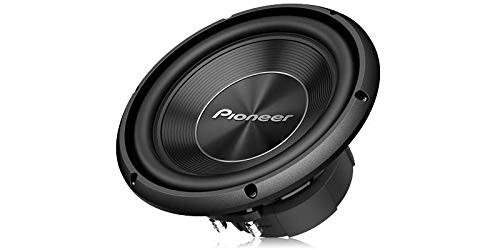

Pioneer TSA250D4

This item is brand-new, factory sealed.

10-in glass fiber and mica interlaced Injection Molded Polypropylene (IMPP) cone construction
Butyl rubber surround and aramid fiber spider for strength and linearity during high excursion
Oversized 56 oz double stacked magnet and vented pole yoke for increased power handling

Easily Upgrade to High Performance
Pioneer's A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.
Linear, Balanced Motion
Linear, balanced motion in both the forward and reverse directions of cone movement is critical to accurate reproduction of recorded sound waves. Careful engineering of the entire motor structure and suspension system (voice coil, magnet, surround and spider) is required maintain a high level of linearity, even during high output / high excursion transients.

CarSoundFit App
Pioneer's CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

* System Type: Component Subwoofer
* Sensitivity (1W/1m) : 74 dB
* Frequency Range: 20 Hz to 2 kHz
* CTA-2031 Compliant: Yes
* Warranty: 1 Year
* Continuous Power handling (RMS) - Watts: 400 Watts
* Maximum Peak Power Handling - Watts: 1300 Watts
* Nominal Impedance - OHM: 4 DVC
Build
* Shape: Round
* Size: 10-in
* Cone Material: IMPP - Composite
* Center Cap Material: ABS
* Surround Material: Rubber
* Surround Type: Rolled
* Basket Material: Stamped Metal
* Magnet Material: Ferrite
* Magnet Weight: 56.4 oz
* Voice Coil Type: Dual Voice
* Voice Coil Bobbin: Alminium
* Voice Coil wire: Copper
* Damper: Aramid
* Gasket: PP
* Wire Terminals: Push Type
* Unit Size (Dimensions) : 10-1/2-in
* Mounting Depth: 5-1/4-in
* Cut Out dimensions: 9-in
* Equivalent Compliance (VAS) [L]: 36.6
* Free Air Resonance (Fs) [Hz]: 30
* Total Speaker "Q" (Qts) : 0.59
* Linear Excursion (Xmax) [mm]: 10.8
* Recommended Sealed Box Volume [L]: 19.8
* Port Box volume [L]: 19.8
* Port Length: 5-in
* Port Diameter: 2-in
