Planar Systems

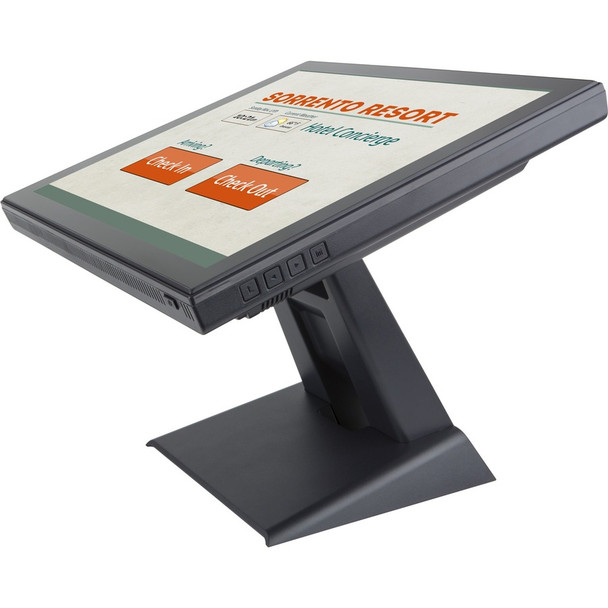

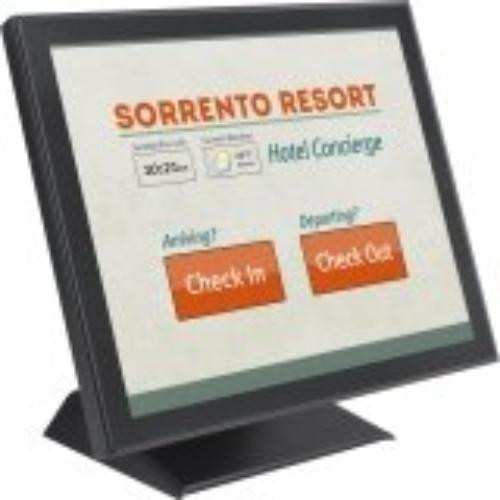

Planar Pt1945p 19" Edge Led Lcd Touchscreen Monitor - 5:4 - 5 Ms - Projected Capacitive - Multi-touch Screen - 1280 X 1024 - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - (997-7415-00)
(No reviews yet)
Write a Review
- SKU:
- 18365655
- MPN:
- 997-7415-00
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
For image-conscious retail, hospitality or healthcare establishments, the Planar® PT1945P 19" monitor is optimized with multi-touch interactivity. With its ultra-thin profile enclosure to its sleek, edge-to-edge glass surface, the Planar PT1945P provides the ultimate end-user experience.Package Contents:
- PT1945P 19" Touchscreen LCD Monitor
- Power Cord
- VGA Cable
- USB Cable (A to B)
- Audio-in Cable
- User's Guide
- Quick Start Guide
Features
Package Contents:
Yes
China
- PT1945P 19" Touchscreen LCD Monitor
- Power Cord
- VGA Cable
- USB Cable (A to B)
- Audio-in Cable
- User's Guide
- Quick Start Guide
Certifications & Standards:
- UL
- c-UL
- FCC-Class B
- CE
Environmentally Friendly:
Yes
Platform Supported:
PC
Mac
Country of Origin:
China
Specs
| Power Description | |
| Operating Power Consumption | 17.60 W |
| Standby Power Consumption | 1.40 W |
| Input Voltage |
|
| Off-Mode Power Consumption | 800 mW |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Weight (Approximate) | 13.40 lb |
| VESA Mount Standard | 100 x 100 |
| Height | 15.4" |
| Width | 17" |
| Depth | 8.6" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| VGA | Yes |
| USB | Yes |
| Video | |
| Brightness | 250 Nit |
| Maximum Resolution | 1280 x 1024 |
| Contrast Ratio | 1,000:1 |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.7 Million Colors |
| General Information | |
| Brand Name | Planar |
| Manufacturer Website Address | http://www.planar.com |
| Marketing Information | For image-conscious retail, hospitality or healthcare establishments, the Planar® PT1945P 19" monitor is optimized with multi-touch interactivity. With its ultra-thin profile enclosure to its sleek, edge-to-edge glass surface, the Planar PT1945P provides the ultimate end-user experience. |
| Product Type | LCD Touchscreen Monitor |
| Product Name | PT1945P 19" Touchscreen LCD Monitor |
| Manufacturer | Leyard |
| Manufacturer Part Number | 997-7415-00 |
| Product Model | PT1945P |
| Technical Information | |
| Vertical Viewing Angle | 160° |
| Viewable Screen Size | 19" |
| Response Time | 5 ms |
| Mount Type |
|
| Screen Mode | SXGA |
| Features | Security Lock |
| Horizontal Viewing Angle | 170° |
| Adjustable Display Angle | Yes |
| Backlight Technology | Edge LED |
| Screen Size Class | 19" |
| Aspect Ratio | 5:4 |
| Tilt Angle | -5° to 90° |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen | Yes |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
