Planar Systems
Planar PXL2230MW 22 Class LCD Touchscreen Monitor - 16:9 - 5 ms" 997703900
(No reviews yet)
Write a Review
- SKU:
- 18464799
- MPN:
- 997-7039-00
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/07/2025 03:11:10 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $265.99 each 265.99 |
- Stock Update:
- 12/07/2025 03:11:10 PM PST
Description
This item is brand-new, factory sealed.

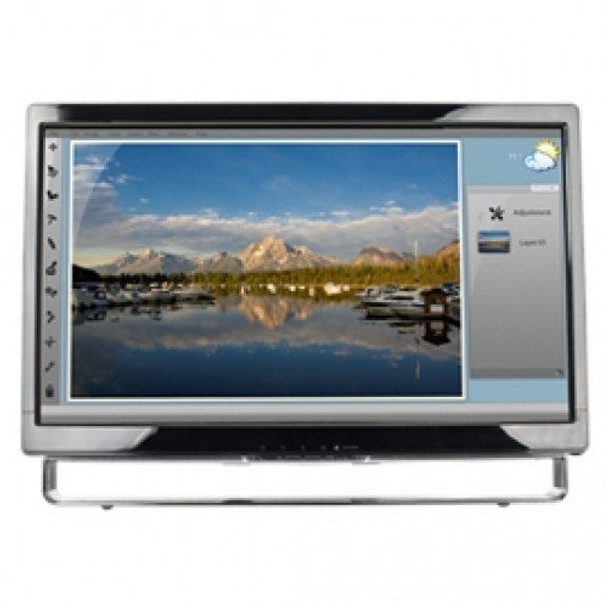

The PXL2230MW 22" widescreen multi touch LCD monitor is optimized for consumer multimedia applications. Designed for only Microsoft Windows 7, the monThe PXL2230MW 22" multi touch full HD widescreen edge-lit LED LCD is optimized for consumer multimedia applications. Designed for Microsoft Windows 7, the monitor features an optical multi touch screen (USB interface). The PXL2230MW offers VGA, DVI-D and HDMI video inputs for flexible monitor setup and integrated speakers. The thin black bezel makes the PXL2230MW ideal for multiple monitor applications. Product NamePXL2230MW
Planar Part Number
997-7039-00
Viewable Size
21.5" diagonal (18.77" horizontal x 10.56" vertical)
Aspect Ratio
16:9 Contrast Ratio (typ)
1000:1
Viewing Angle (typ)
170 Horizontal and 160 Vertical
Response Time (typ)
5 ms Brightness (Typical)
250 cd/m
Display Type
Edge-Lit LED LCD Display Resolution
1920 x 1080, full HD

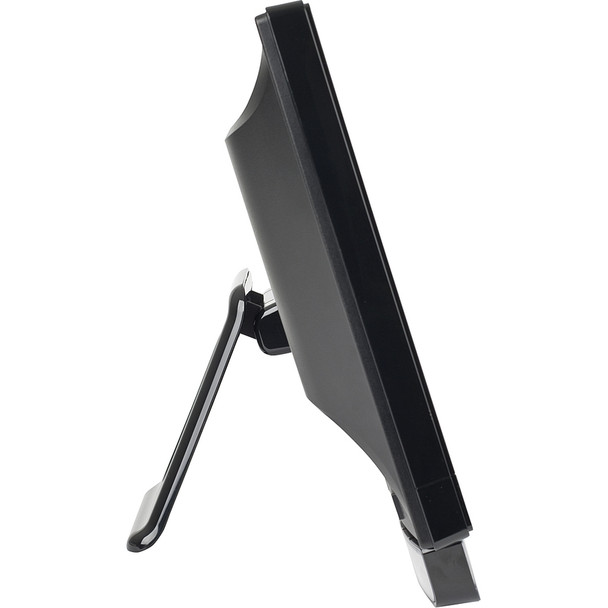

Tilt Range
0 to +20
Palette
16.7 million colors
Pixel Pitch
0.248 mm Refresh Rate
N/A
Panel Depth
2.81"
Video Inputs
Analog and Digital (DVI-D w/HDCP, HDMI) Audio Output
2 speakers, 1W/ch
External Connections

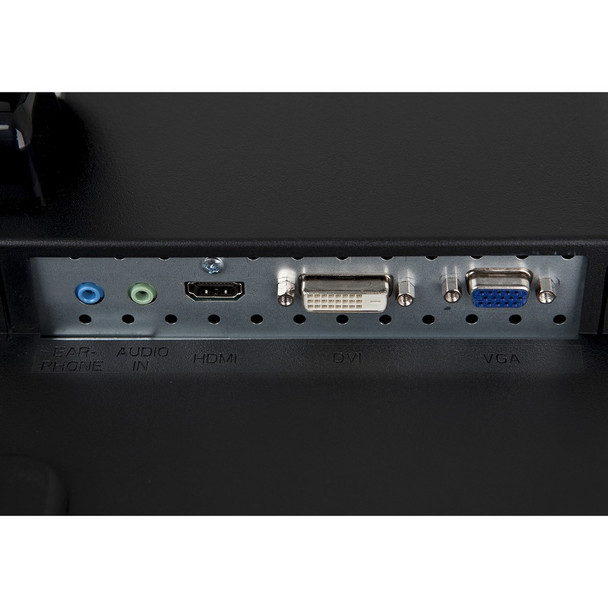

D-sub 15-pin, DVI-D 24-pin (w/HDCP), HDMI, USB-B,Audio Port, AC Power-In
Compatibility
Windows 7 Power Supply
Internal
Power Consumption
N/A
Power Requirements
100-240 VAC, 50/60 Hz
VESA Compatible/Location
Built-in 100 mm VESA, Back of monitor Product Approvals
UL/cUL, FCC-B, CE, RoHS
Options / Features
Optical Touch technology, multi -touch capability, compatible with Microsoft Windows 7 operating system, HID compliant - no drivers needed for touchscreen operation. Includes a built in stylus. Item Dimension (L"xW"xH"):
20.3 x 14.7 x 4.9
Weight:
15.9 lb
Warranty Information:
3 Years Customer First Warranty Featuring FREE 2-Day Advance Replacement
Features
Package Contents:
Yes
No
PC
- PXL2230MW Touchscreen LCD Monitor
- Stylus
Certifications & Standards:
- UL/cUL
- FCC-B
- CE
Environmentally Friendly:
Yes
Energy Star:
No
Platform Supported:
PC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Weight (Approximate) | 9.90 lb |
| Height with Stand | 14.70" |
| VESA Mount Standard | 100 x 100 |
| Depth with Stand | 4.90" |
| Height | 12.9" |
| Width with Stand | 20.30" |
| Width | 20.3" |
| Depth | 2.8" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| VGA | Yes |
| USB | Yes |
| DVI | Yes |
| HDMI | Yes |
| Video | |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 Nit |
| Maximum Resolution | 1920 x 1080 |
| Contrast Ratio | 1,000:1 |
| Standard Refresh Rate | 60 Hz |
| Color Supported | 16.7 Million Colors |
| General Information | |
| Brand Name | Planar |
| Manufacturer Website Address | http://www.planar.com |
| Marketing Information | The PXL2230MW 22" widescreen multi touch LCD monitor is optimized for consumer multimedia applications. Designed for only Microsoft Windows® 7, the monThe PXL2230MW 22" multi touch full HD widescreen edge-lit LED LCD is optimized for consumer multimedia applications. Designed for Microsoft Windows® 7, the monitor features an optical multi touch screen (USB interface). The PXL2230MW offers VGA, DVI-D and HDMI video inputs for flexible monitor setup and integrated speakers. The thin black bezel makes the PXL2230MW ideal for multiple monitor applications. |
| Product Type | LCD Touchscreen Monitor |
| Product Name | PXL2230MW Touchscreen LCD Monitor |
| Manufacturer | Leyard |
| Manufacturer Part Number | 997-7039-00 |
| Product Model | PXL2230MW |
| Technical Information | |
| Panel Technology | Thin Film Transistor (TFT) |
| Vertical Viewing Angle | 160° |
| HDCP Supported | Yes |
| Viewable Screen Size | 22" |
| Response Time | 5 ms |
| Screen Mode | Full HD |
| Features | OSD/Power Lock |
| Horizontal Viewing Angle | 170° |
| Adjustable Display Angle | Yes |
| Backlight Technology | Edge LED |
| Screen Size Class | 22" |
| Aspect Ratio | 16:9 |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen | Yes |
| Touchscreen Type | Optical |
| Multi-touch Screen | Yes |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
