Planar Systems
Planar PT1545P 15 Class LCD Touchscreen Monitor - 4:3 - 8 ms" 997741301
(No reviews yet)
Write a Review
- SKU:
- 18832874
- MPN:
- 997-7413-01
- Availability:
- Out of stock
- Stock Update:
- 08/01/2025 02:45:16 AM PST
- Stock Update:
- 08/01/2025 02:45:16 AM PST
Description
This item is brand-new, factory sealed.
Planar 997-7413-01 15 Touch Screen Point of Sale Monitor- Viewable Size 15" diagonal (11.97" horizontal x 8.98" vertical)
- Touchscreen Type Projected Capacitive
- Viewing Angle (typ) 140 Horizontal and 125 Vertical
- Contrast Ratio (typ) 500:1
- Response Time (typ) 8 ms
- Standing screen display size: ?15 Inches
- Max Screen Resolution: ?1024 x 768 Pixels
- Brand: ?Planar
- Series: ?997-7413-01
- Item model number: ?997-7413-01
- Item Weight: ?14.3 pounds
- Product Dimensions: ?8 x 13.8 x 12.1 inches
- Item Dimensions LxWxH: ?8 x 13.8 x 12.1 inches
- Color: ?Black
- Manufacturer: ?Planar

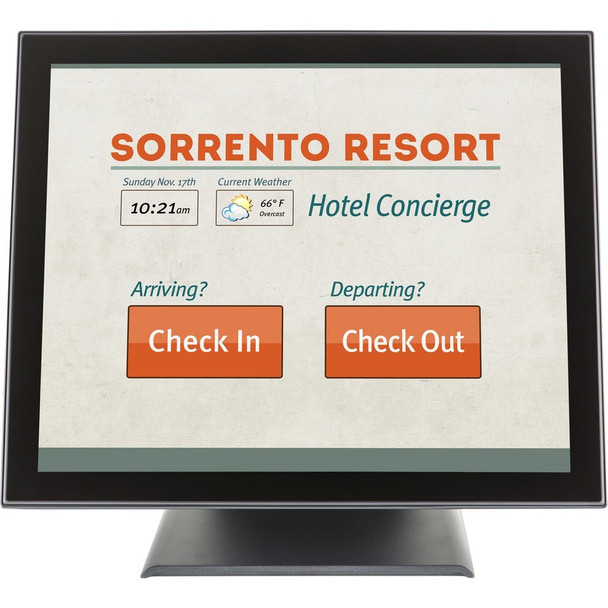

The Planar PT1545P 15" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1545P provides the ultimate interactive experience and is optimized with multi-touch interactivity for space-constrained settings. The upgraded monitor now comes with HDMI and DisplayPort input connectivity.
Package Contents:
- PT1545P 15" Touch Screen Point Of Sale Monitor
- Power Cord
- VGA Cable
- USB Cable (A to B)
- Audio-in Cable
- HDMI Cable
- User's Guide
- Landing strip
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
- PT1545P 15" Touch Screen Point Of Sale Monitor
- Power Cord
- VGA Cable
- USB Cable (A to B)
- Audio-in Cable
- HDMI Cable
- User's Guide
- Landing strip
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Operating Power Consumption | 10.20 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Weight (Approximate) | 6.40 lb |
| Height with Stand | 12.10" |
| Product Color | Black |
| VESA Mount Standard | 100 x 100 |
| Depth with Stand | 8" |
| Height | 10.9" |
| Width with Stand | 13.80" |
| Color Family | Black |
| Width | 13.8" |
| Weight with Stand (Approximate) | 9.90 lb |
| Depth | 2.5" |

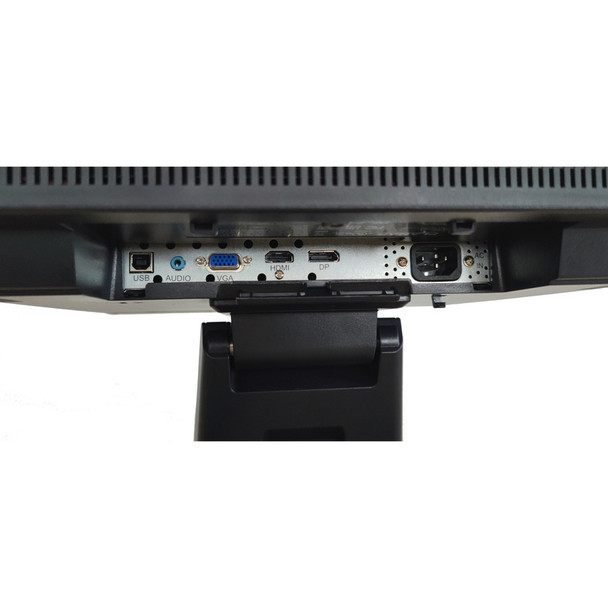

| Interfaces/Ports | |
| VGA | Yes |
| DisplayPort | Yes |
| HDMI | Yes |
| Video | |
| Native Contrast Ratio | 800:1 |
| Brightness | 315 Nit |
| Maximum Resolution | 1024 x 768 |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.2 Million Colors |
| General Information | |
| Brand Name | Planar |
| Manufacturer Website Address | http://www.planar.com |
| Marketing Information | The Planar® PT1545P 15" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications. With its ultrathin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1545P provides the ultimate interactive experience and is optimized with multi-touch interactivity for space-constrained settings. The upgraded monitor now comes with HDMI and DisplayPort input connectivity. |
| Product Type | LCD Touchscreen Monitor |
| Product Name | PT1545P 15" Touch Screen Point Of Sale Monitor |
| Manufacturer | Leyard |
| Manufacturer Part Number | 997-7413-01 |
| Product Model | PT1545P |
| Technical Information | |
| Response Time Details | 8 ms Typical |
| Vertical Viewing Angle | 150° |
| Stand Adjustments | Tilt |
| Viewable Screen Size | 15" |
| Response Time | 8 ms |
| Screen Mode | XGA |
| Features |
|
| Horizontal Viewing Angle | 160° |
| Backlight Technology | Edge LED |
| Screen Size Class | 15" |
| Aspect Ratio | 4:3 |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
