plugable technologies
Plugable Usb 2.0 7-port Hub With 60w Power Adapter - Usb - External - 7 Usb Port[s] - 7 Usb 2.0 Port[s] - Pc, Mac, Linux (usb2-hub7bc)
- SKU:
- 18494419
- MPN:
- usb2-hub7bc
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.
USB has become more than a way of connecting devices to a computer with plug and play ease and high performance, it has also become the method of choice to power and charge a range of battery-powered devices from headsets and controllers to phones and tablets. Some of those mobile devices have adopted proprietary mechanisms to draw more power than USB 2.0 was designed to allow, which has caused confusion about charging.
That is being solved by the Battery Charging (BC 1.2) Standard - when both the device and the hub/charger are BC Standard compliant, it can charge at a faster rate (up to 1.5A) in a standard way.

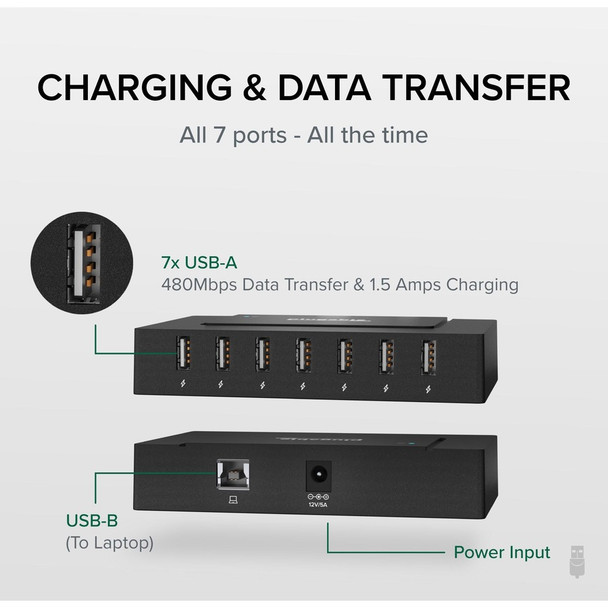

The Plugable USB2-HUB7BC is among the first of USB 2.0 hubs that does everything existing USB hubs do, plus has support for the Battery Charging Standard (BC 1.2). So it's a no-compromise solution for both gaining extra USB ports and for charging the newer generation of BC Standard compliant devices. Both Sync and Charge (CDP) and Dedicated Charge (DCP) are supported, if the phone or tablet also supports these modes.
Hub Controller
Latest high performance and high efficiency Terminus Technology FE1.1s USB hub chipset. Supports Multiple Transaction Translators for optimum performance when a combination of USB 2.0 and 1.1 devices are attached. Low power consumption is achieved with 0.18µm technology and selectively de-energizing unused ports and parts of the circuitry not currently in use.
Battery charging over USB has become a standard practice but the actual charging behavior of different devices is often unpredictable and sometimes disappointing. The devices themselves decide how much current to draw and manufacturers haven't settled on a single standard. We constantly test our products with as many different devices as possible and publish the results so it's easy to determine the charging behavior to expect from your device on each of our USB products. These are the results for the devices we've tested on this charger so far.

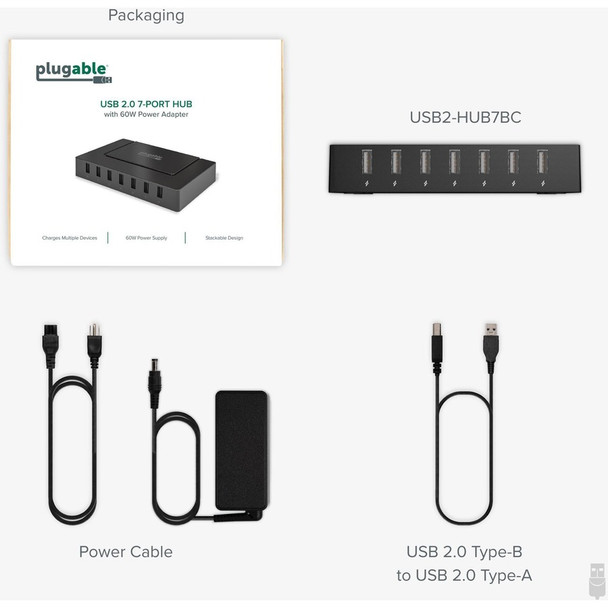

Package Contents:
- USB 2.0 7-Port Hub
- 60W Power Adapter
Features
- 1x USB 2.0 7-PORT HUB WITH 60W POWER ADAPTER
- 1x USB-B to USB-A Cable
- 1x 60W Power Adapter
Platform Supported:
PC
Mac
Linux
Country of Origin:
China
Specs

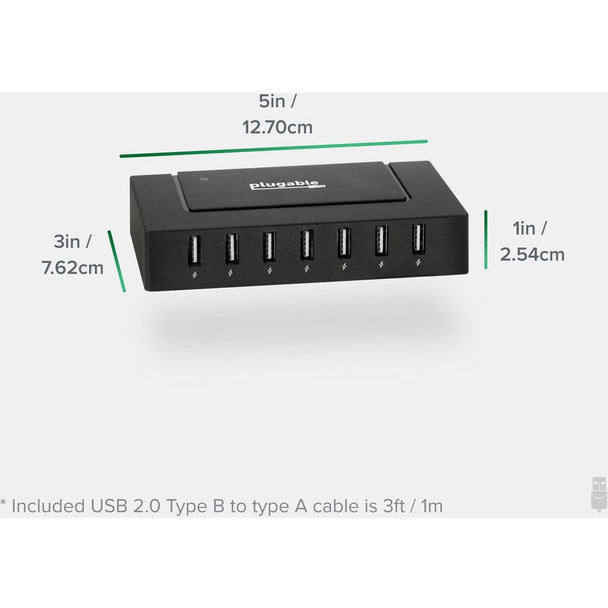

| Physical Characteristics | |
| Weight (Approximate) | 4.60 oz |
| Height | 1" |
| Width | 5" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| USB Version | 2.0 |
| Number of USB 2.0 Ports | 7 |
| Total Number of USB Ports | 7 |
| General Information | |
| Brand Name | Plugable |
| Manufacturer Website Address | http://www.plugable.com |
| Marketing Information | Plugable's USB 2.0 7-Port Hub The Plugable USB2-HUB7BC expands USB connectivity by enabling up to seven USB 2.0 devices to be added to any USB 2.0 capable desktop, laptop, or tablet computer. The hub supports USB 2.0 transfer rates up to 480Mbps to allow data to move quickly between devices, ideal for high-throughput devices such as USB external hard drives, flash drives, and USB graphics adapters. Technical Details The hub features two internal Terminus Technology FE 1.1s Rev. B USB 2.0 hub chipsets for maximum forward and backwards compatibility between nearly all USB hosts and devices. The FE1.1s is an advanced USB 2.0 hub controller featuring low power consumption, comprehensive USB charging support, and supports USB power management, allowing for improved power-efficient operation. A Port For Everything Most computers have an average of only 4-6 USB ports. With so many devices we depend on daily, that's just not enough. All seven ports are lined up front and center to allow easy insertion of devices with the power and host USB cable coming out the rear to reduce cable clutter. In The Box 1x USB2-HUB7BC 1x Robust 60W (12V, 5A) power adapter with a removable 6 foot power cable (standard IEC320 C7) 1x 3 ft/1m USB 2.0 A to B cable More from the Manufacturer |
| Product Type | USB Hub |
| Product Name | USB 2.0 7-PORT HUB WITH 60W POWER ADAPTER |
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | USB2-HUB7BC |
| Packaged Quantity | 1 |
| Media & Performance | |
| Data Transfer Rate | 480 MB/s |
| Technical Information | |
| Host Interface | USB 2.0 Type A |
Warranty Information
