Plugable USB-C Mini Docking Station with 85W Power Delivery (ud-cam)
- SKU:
- 19230737
- MPN:
- ud-cam
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/31/2026 07:08:48 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $142.46 each 142.46 |
| Buy 3 - 6 | and pay only $140.26 each 140.26 |
| Buy 7 or above | and pay only $137.92 each 137.92 |
- Stock Update:
- 01/31/2026 07:08:48 PM PST
Description
This item is brand-new, factory sealed.

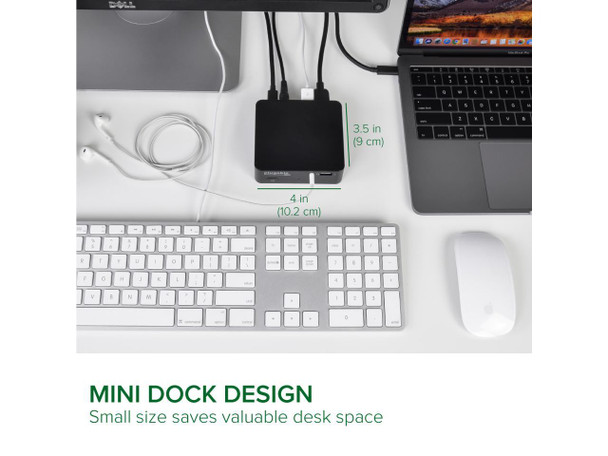

The Plugable UD-CAM dramatically increases the functionality, usability, and flexibility of supported USB-C systems like the 2015 and later 12" MacBook Retina with USB-C, late 2016/2017 MacBook Pro with Thunderbolt 3, Dell XPS, Precision, and Latitude systems with Thunderbolt 3, and the Microsoft Surface Book 2. Power up your productivity with the ability to add an external HDMI display while simultaneously providing up to 85W of power to charge your system and expanding your connectivity with Ethernet, audio input/output, and four USB ports to connect your peripherals. All through a single USB-C cable!
The functionality of the UD-CAM Mini Dock is powered by two of USB 3.1's most exciting new features: support for Alternate Modes and Power Delivery. Alternate Mode allows certain non-USB data and protocols (such as native video) to be sent over a USB-C cable, while Power Delivery enables you to power and charge a supported system without the need for a traditional proprietary OEM charger. Support for these features must also be built-in to the system being used, so please see the important additional compatibility details in the sections below.
The extended charge and power availability with the UD-CAM (at a total of up to 85W available) ensures that your device will stay charged, powered, and ready to go for any intensive application usage!
Package Contents:
- USB-C Mini Docking Station with 85W Power Delivery
- VESA Mount
- 1m USB-C to USB-C Cable
- 100W (20V, 5A) Power Supply
- Quick Start Guide
Features
- USB-C Mini Docking Station with 85W Power Delivery
- 1 x USB-C to USB-C Cable
- 1 x Power Adapter
- 1 x VESA Mount + Screws
Additional Information:
- Cable | USB-C to USB-C
- Video Output | HDMI output via ""VESA DisplayPort over USB-C Alternate Mode"" (""Alt Mode""), DisplayPort signaling converted to HDMI internally. Requires VESA Alternate Mode support from host system
- Resolutions | Up to 4K@30Hz. 2560x1440, 1920x1080 and all lower modes support 60Hz
- Power Delivery | USB Power Delivery Compliant (PD 2.0)
- Power Adapter | 100W (20V/5A) UL Listed Power Adapter
- USB Ports (Front) | 1 x USB 3.0 Type-A
- USB Ports (Rear) | 3 x USB 3.0 Type-A, 1 x USB 3.1 Type-C to Host
- Ethernet | 1 x Gigabit Ethernet
- Audio | 1 x 3.5mm TRRS Headphone/Mic Combo Jack
Compatibility:
Acer Notebook:
- Chromebook 14
Apple Notebooks:
- MacBook 12" Retina 2016
- MacBook Pro 13" Late 2016 (non Touch Bar)
- MacBook Pro 15" Late 2016 (with Touch Bar)
- Macbook Pro 13" Early 2018 (with Touch Bar)
ASMedia Controller:
- USB 3.1 (Generic)
ASUS Notebook:
- Vivobook Max X541NA-PD1003Y
Dell Notebooks:
- Latitude 5580
- Latitude 7280
- XPS 13 9350 (Intel 6th Gen CPU)
- XPS 13 9360 (Intel 7th Gen CPU)
- XPS 15 9550 (Intel 6th Gen CPU)
- XPS 15 9560 (Intel 7th Gen CPU)
- XPS 15 9570
HP Products:
- Spectre X360 Convertible 13-AC0XX
- Chromebook 13 G1 (TPN-Q176)
- Elite Folio G1
- Elite X2 1012 G1
Huawei Notebooks:
- Matebook
Lenovo Products:
- Yoga 720 13" 1st gen
- Yoga 900 113ISK
- Yoga 910 14"
- Yoga 920
- Miix 720
- X1 Carbon 5th Gen
Microsoft Notebook:
- Surface Book 2
Google Notebook:
- Pixelbook
Samsung Notebook:
- Chromebook Plus (XE513C24)
https://docs.google.com/spreadsheets/d/1y1BcngYaXtfc-mk-JjJ2j3XzmrRV_DaqaN7uxiAsFEw/htmlembed?gid=0&range=A1:CC999&widget=false&gridlines=true&chrome=false
Brand Compatibility:
Acer
Apple
Asus
Dell
HP
Huawei
Lenovo
Microsoft
Google
Samsung
Country of Origin:
Taiwan
Specs
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| USB Power Delivery | 85W |
| Number of USB Type-A Ports | 4 |
| Number of HDMI Outputs | 1 |
| Number of RJ-45 Ports | 1 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Headphone/Microphone Combo Port | Yes |
| Network (RJ-45) | Yes |
| HDMI Version | 1.4 |
| Host Interface | USB 3.1 (Gen 1) Type C |
| USB Type-A | Yes |
| HDMI | Yes |
| Thunderbolt | Yes |
| General Information | |
| Brand Name | Plugable |
| Manufacturer Website Address | http://www.plugable.com |
| Marketing Information | The Plugable UD-CAM USB-C Mini Docking Station provides an additional HDMI display output (via Alternate Mode, converted internally to HDMI for maximum compatibility), up to 85 Watts of Power Delivery (PD) to charge your host computer via USB-C (host computer must support PD over USB-C), gigabit Ethernet, audio, and expanded USB device connectivity. All through a single USB-C cable. The UD-CAM docking station utilizes new USB-C functionality to output native video over compatible USB-C ports. USB-C ""Alternate Mode"" provides a direct pipeline to the graphics processor in your system, and your connected monitor will function and perform as a natively attached display. The Alternate Mode signal is converted to HDMI 1.4 to accommodate widely available HDMI monitors. Compatible Systems Plug and play installation on virtually any Windows, Mac, or Linux host which supports Alternate Mode (Alt Mode) video output functionality. Current examples are the 12"" Retina MacBook with USB-C / Late 2016 / 2017 MacBook Pro / Lenovo Yoga 720 13"" / Surface Book 2 / Dell XPS 13"" (9350/9360) / Pixelbook. Dell XPS 15"" (9550/9560) will function but displays a warning on boot if a 130W charger is not detected. Power and Charging The UD-CAM's power supply can charge hosts with up to 85 Watts of power via the USB Power Delivery standard. As mentioned above, some devices which support video output over USB-C will not charge via USB-C. For these systems, the charger from your system manufacturer will be required. In the Box UD-CAM Mini Docking Station,1m long USB-C cable, 100W (20V, 5A) power supply with US power plug, VESA Mount, and quick start guide. More from the Manufacturer |
| Product Type | Docking Station |
| Product Name | USB-C Mini Docking Station with 85W Power Delivery |
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | UD-CAM |
| Product Model | UD-CAM |
| Packaged Quantity | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Number of Displays Supported | 1 |
| Screen Mode Supported | 4K |
| Supported Resolutions |
|
| Device Supported | Notebook/Tablet PC |
| Connectivity Technology | Wired |
