Plugable Usb To Rs-232 Db9 Serial Adapter [prolific Pl2303hx Rev D Chipset] - Usb/serial For Pda, Gps, Router, Modem, Printer - 28.75 Kb/s - 2 Ft - 1 Pack - 1 X Type A Male Usb - 1 X Db-9 (pl2303-db9)
(No reviews yet)
Write a Review
- SKU:
- 18429439
- MPN:
- pl2303-db9
- Availability:
- Out of stock
- Stock Update:
- 01/14/2026 01:37:19 PM PST
- Stock Update:
- 01/14/2026 01:37:19 PM PST
Description
This item is brand-new, factory sealed.
Features a Prolific PL-2303HX Rev D chipset for the best combination of performance and wide driver support. Drivers available for Windows 98/ME/2000/XP, and Microsoft signed drivers for 32/64-bit Windows10, Windows 8.1, Windows 8, Windows 7, and Vista; Mac OS X 10.6 and later; open source drivers included in Linux kernel 2.4.31 and later. Windows 7 - 10 automatically detects and guides driver install without disk. Not compatible with ARM-based Windows (MS Surface).- Allows any PC to connect serial devices and programs that communicate through COM ports

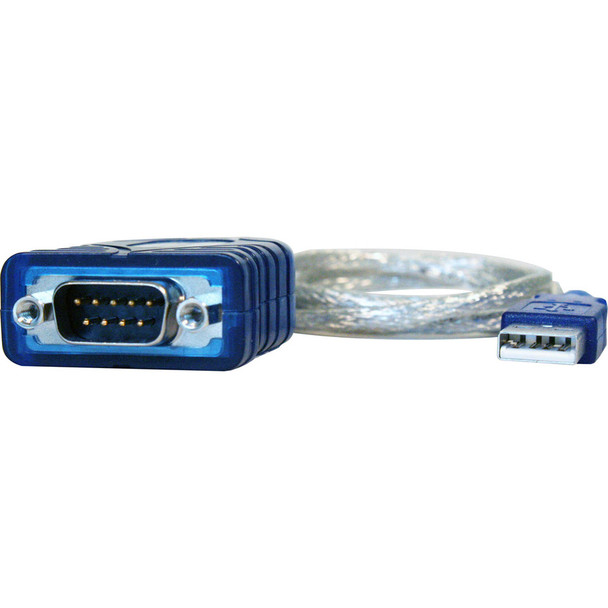

- 24-inch cable with standard USB Type A Male to standard 9-pin DB9 RS-232 serial connector
- PL-2303 Chipset for widest possible compatibility with Windows (10/8.1/8/7XP), Mac, Linux, and other platforms
- Programmable baud rate from 75 bits per second to 128000 bits per second. Plug and play creation of a COM port. Powered by USB - no external power needed
- We love our Plugable products and hope you will too. All of our products are backed with a 1-year limited parts and labor warranty and Seattle-based email support.

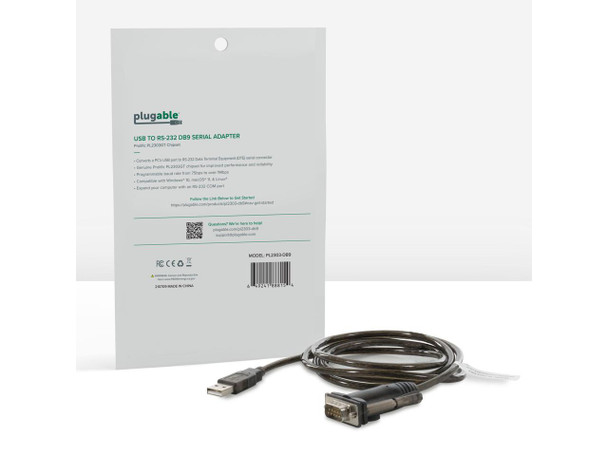

Package Contents:
- USB to RS-232 DB9 Serial Adapter (Prolific PL2303HX Rev D Chipset)
- Driver CD
- Quick Installation Guide
Features
Package Contents:
China
- USB to RS-232 DB9 Serial Adapter (Prolific PL2303HX Rev D Chipset)
- Driver CD
- Quick Installation Guide
Country of Origin:
China
Specs
| Physical Characteristics | |
| Weight (Approximate) | 0.16 lb |
| Width | 0.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Plugable |
| Manufacturer Website Address | http://www.plugable.com |
| Marketing Information | Features a Prolific PL2303GT chipset for the best combination of performance and wide driver support. Drivers available for Windows 11, 10, 8.1, 8. 7, and Vista through Windows Update or downloaded from our website, macOS and Linux rely on embedded serial port drivers for modern operating systems. Not compatible with ARM-based Windows (MS Surface). Compatibility Works with devices with RS-232 serial ports like: other PCs with RS-232 ports, Bluetooth serial adapters, PDAs, GPS receivers, routers, firewalls, modems, printers, embedded character displays, scan tools, sonar units, embedded boards, etc. Works with software like: HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc. Connector compatibility note The DB9 DTE male connector with retention screws. NULL Modem or straight through serial adapter cables may be required for connecting to some devices. Updated This adapter uses the latest Prolific PL2303GT chipset with a robust molded plastic adapter end and 2-foot USB cable. More from the Manufacturer |
| Product Type | Data Transfer Cable |
| Product Name | USB to Serial Adapter Compatible with Windows, Mac, Linux |
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | PL2303-DB9 |
| Packaged Quantity | 1 |
| Technical Information | |
| Connector on Second End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Data Transfer Rate | 230 kbit/s |
| Cable Type | Serial/USB |
| Connector on First End Details | 1 x USB Type A - Male |
| Connector Type on First End | USB Type A - Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Male |
| Cable Length | 2 ft |
| Features |
|
| Device Supported |
|
