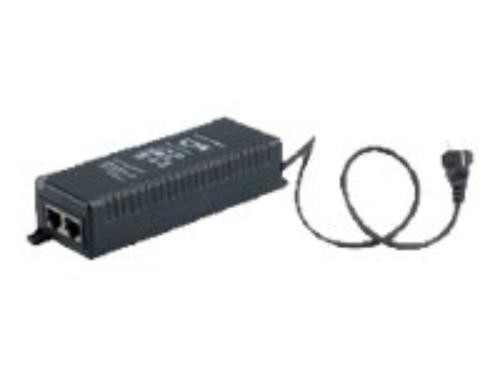

Powerdsine PD-9001GR-AT-AC Power over Ethernet Injector PD9001GR/AT/AC

This item is brand-new, factory sealed.

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for current as well as emerging high power applications. The PD-9001GR/AT is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. It is also backward compatible and safe to use with any IEEE 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as Wi-MAX and wireless IEEE 802.11n access points.
Additional Features
Number of ports: 1
PoE output: 30W
Data rates: 10/100/1000 Mbps
Power input: AC
Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
Safety: UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
Compact design
Product Type
30W PoEPoE Systems Type
MidspanPoE Standard
IEEE 802.3atPower Per Port
30WOperating Environment
IndoorNumber of Ports
1Data Rate
1 GbpsInput Power
ACOperating Humidity (%)
90Operating Temperature (^oC)
-20 to 40Item Dimension (L"xW"xH")
9 x 5 x 3

Weight
1.1 lbs

Warranty Information
1 Year
