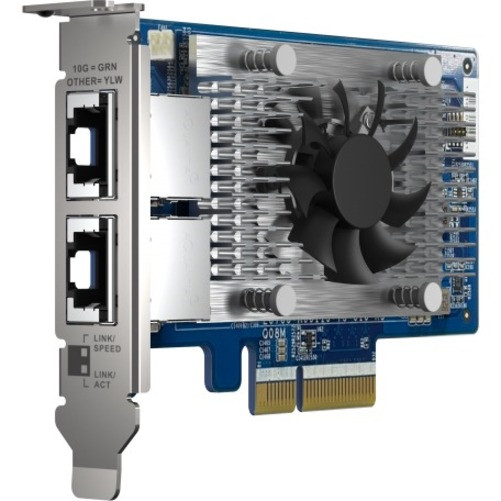

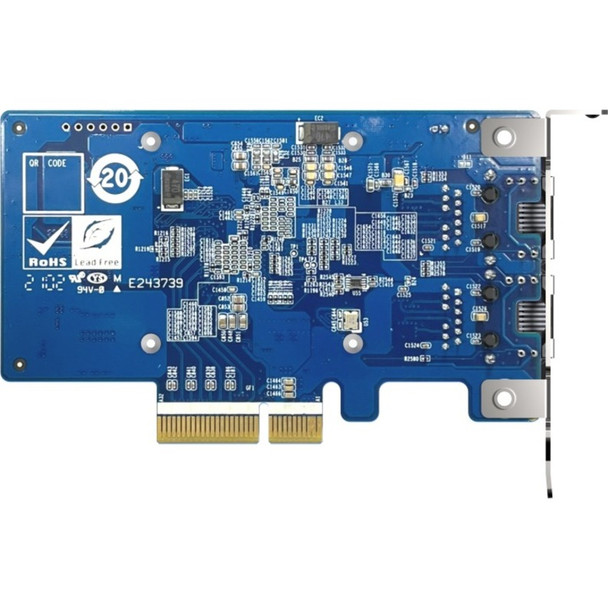

QNAP QXG-10G2T-X710 10Gigabit Ethernet Card - PCI Express 3.0 x4 - 2 Port(s) (QXG10G2TX710)

This item is brand-new, factory sealed.

The dual port QXG-10G2T-X710 is a PCIe Gen 3 (compatible with PCIe Gen 2)10GbE network expansion card with an Intel Ethernet Controller X710 and supports up to five speeds (10G / 5G / 2.5G / 1G / 100M). By using Port Trunking, both ports can be combined to achieve up to 20Gbps transfer speeds for accelerating file sharing and intensive data transfer. With SR-IOV and iSCSI support, the QXG-10G2T-X710 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications and data centers.
Build a 10GbE Network Environment
The QXG-10G2T-X710 can be used with QNAPs 10GbE switches, such as the QSW-M2108-2C or QSW-1208-8C, for you to build a budget-friendly high-speed network environment.
Supports SR-IOV and iSCSI, Achieve the Best Virtualization Environment
The QXG-10G2T-X710 supports SR-IOV, which can allocate bandwidth resources from a physical network card directly to VMs. It ensures reliable VM applications and reduced CPU overheads. The QXG-10G2T-X710 also supports iSCSI, which enables computers, servers, or virtual machines to use storage from your QNAP NAS as virtual disks. You can partition, format, and use these virtual disks exactly like local disks, or even use them for storage expansion or as backup destinations.
Note: SR-IOV is supported by specific QNAP NAS models and should work with SR-IOV compatible adapters.
Supports Windows and Linux servers/workstations
Besides QNAP devices, the QXG-10G2T-X710 supports Windows 10, Windows Server, and Linux ( driver required), allowing you to attain optimal business performance for a wider range of system applications and services.Controller
Intel Ethernet Controller X710Number of Ports
2 x NBASE-T (RJ45)Connector
NBASE-T (RJ45)PCIe and Lanes
PCIe 3.0 x4Transmission Rates
10Gbps/5Gbps/2.5Gbps/1Gbps/100MbpsIEEE Standards
IEEE 802.1Q
IEEE 802.3x
IEEE 802.1p
IEEE 802.3ad
IEEE 802.3ae
IEEE 1588
IEEE 802.1asBracket
Low-profile bracket pre-installed full-height and specialized (for selected QNAP NAS) brackets are bundledSR-IOV Support
YesNVGRE, VXLAN, Geneve Support
Yes1K ingress and egress QoS levels
On-chip QoSHow mant virtual functions
128
(64/port)Supported NAS operating systems
QTS 4.4.3 or later (recommend an upgrade to the latest version) Windows 10 (1809 or later) Linux Stable Kernel 4.20/5.x Windows Server 2019 (Driver required)Supported QNAP NAS
Models with PCIe slot(s) (1 free slot required)Support Ubuntu Commercial Linux Distribution
Ubuntu 18.04/20.04Support Windows
Windows 8/10Port and Cable
RJ-45 over CAT-6 class cablePackage Content
1 x Network card 1 x QIG 3 x BracketsItem Dimension (L"xW"xH")
6 x 8 x 2

Weight
1 lb

Warranty Information
2 years
