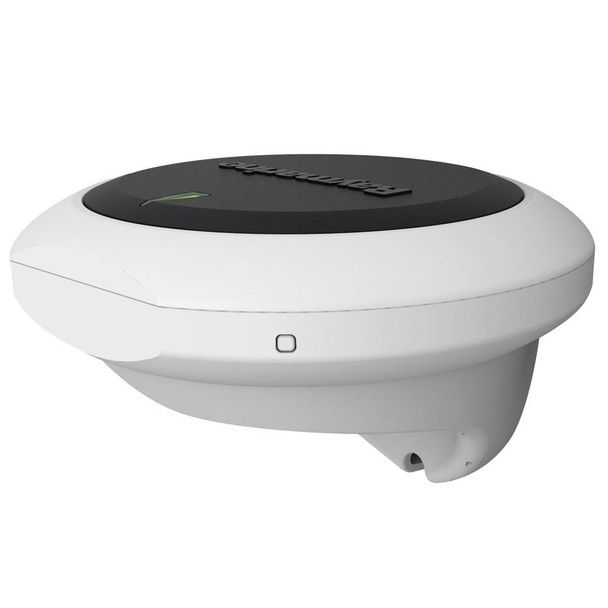

Raymarine E70096 EV1 Autopilot Sensor

(No reviews yet) Write a Review
SKU:
18009288
MPN:
e70096
Availability:
Usually ships the same or next business day. In stock at our CA, Fl, GA, KS, MI, PA, TX, WA warehouses.
Shipping:
Calculated at Checkout
Stock Update:
12/07/2025 03:28:14 AM PST
$753.16
Buy more, get it as low as $
Stock Update:
12/07/2025 03:28:14 AM PST

Description

This item is brand-new, factory sealed.

Model

E70096: EV-1

Nominal supply voltage

12 V (powered by SeaTalkng system)
Operating voltage range

10.8 V to 15.6 V dc
Power consumption

(taken from SeaTalkng system)

30 mA
SeaTalkng LEN

(Load Equivalency Number)

1
Sensors

3-axis digital accelerometer

3-axis digital compass

3-axis gyro digital angular rate sensor
Data connections

SeaTalkng



NMEA 2000 DeviceNet (EV-2 only)
Installation environmental

Operating temperature: -20°C to +55°C (-4°F to +131°F)

Storage temperature: -30°C to +70°C (-22°F to +158°F)

Relative humidity: max 93%

Waterprrof rating: IPX 6
Dimensions

Diameter: 140 mm (5.5 in)

Depth (including mounting enclosure): 35 mm (1.4 in)

Depth (including wall bracket): 95 mm (3.8 in)
Weight

0.29 kg (0.64 lbs)
EMC compliance

Europe: 2004/108/EC

Australia and New Zealand
