Rocstor

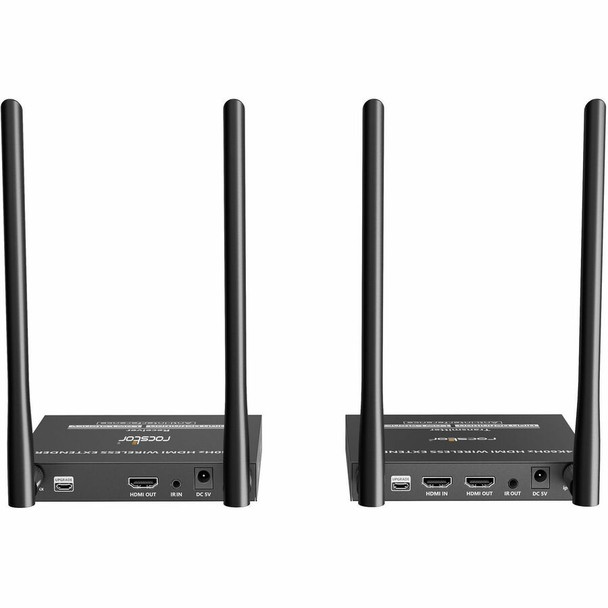

Rocstor Long Range Wireless 4K Video Transmitter and Receiver Kit with Local Passthrough (y10g005-b1)
(No reviews yet)
Write a Review
- SKU:
- 20536802
- MPN:
- y10g005-b1
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/31/2026 12:51:13 AM PST
- Stock Update:
- 01/31/2026 12:51:13 AM PST
Description
This item is brand-new, factory sealed.
4K@60Hz HDMI over Wireless Extender Long Range -Plug & PlayFeatures:
Transmit 4K 60Hz video wirelessly up to 164ft (50m)
iPcolor Image technology for accurate color reproduction
Supports IR pass-through for remote control of video source
Auto SSID pairing for easy setup and connection
ipColor Stream Technology ensures high-quality video streaming
Plug-and-play functionality, no software required
Includes HDMI transmitter and receiver (kit)
Durable metal housing for enhanced durability
Sleek black design complements any AV setup.Power Supply
Voltage/CurrentDC 5V/2A
Power consumption
TX < or equals 6W, RX < or equals 4W
HDMI Performance and Interface
HDMI version
HDMI 2.0
HDCP version
HDCP 1.4/HDCP 2.2
Maximum transfer rate
18Gbps
Resolution supported
38402160 at 24/30/50/60Hz, 1080P at 50/60Hz, 720P at 50/60Hz
1920x1200, 2560x1440, 2560x1600
Input and output TMDS signal
0.7 to 1.2Vp-pTMDS
Input and output DDC signal
5Vp-pTTL
Transmission
Wi-Fi Frequency bands5.18-5.24 GHz
Transmission distance
< or equals 50m
Latency
130-180ms
Connection types
One-to-one
SSID pairing
Supported
Protection Level
ESD protection
1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
IR Performance
Infrared frequency
20-60kHz
Receiving range
< or equals 5m
Operating Environment
Working temperature
-20 to 60oC
Storage temperature
-30 to 70oC
Humidity (nocondensation)
0-90% RH
Color
Black
Material
IronItem Dimension (L inchxW inchxH inch)
7 x 15 x 4
Weight
4 lbs
Warranty Information
2-year Limited
Features
Package Contents:
Yes
- 1 x Transmitter
- 1 x Receiver
- 2 x AC Power Adapter
- 4 x Antennas
- 4 x Mounting Kits
- 1 x IR Receiver Cable
- 1 x IE Emitter Cable
- 2 x Grounding Screw
- 10 x Screw
- 1 x USB-A Male to USB-A Male Cable
- 1 x Quick Start Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Transmitter Weight (Approximate) | 10.08 oz |
| Receiver Width | 4.41" |
| Receiver Height | 0.71" |
| Product Color | Black |
| Receiver Depth | 4.45" |
| Transmitter Depth | 4.45" |
| Receiver Weight (Approximate) | 10.08 oz |
| Transmitter Height | 0.71" |
| Transmitter Width | 4.41" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Supported Video Modes |
|
| Graphics Modes | 4K |
| General Information | |
| Brand Name | Rocstor |
| Manufacturer Website Address | http://www.rocstor.com |
| Marketing Information | Experience the freedom of wireless HDMI connectivity with the Rocstor TrueReach 4K@60Hz HDMI over Wireless Extender. This advanced extender allows you to transmit stunning 4K 60Hz video signals wirelessly, eliminating the need for long HDMI cables. With its impressive range of up to 164ft (50m), it provides flexible and convenient installation options for your audiovisual setup. The TrueReach HDMI over Wireless Extender delivers crystal-clear video quality with support for 4K resolution at 60Hz. Enjoy immersive visuals with vibrant colors and sharp details, bringing your entertainment or presentations to life. With iPcolor Image technology, the extender ensures accurate color reproduction, enhancing the overall viewing experience. This extender supports IR pass-through, allowing you to control your video source remotely. Adjust settings, switch inputs, or control playback without the need to be in close proximity to your devices. The auto SSID pairing feature simplifies the setup process by automatically connecting the transmitter and receiver, saving you time and effort. With the TrueReach HDMI over Wireless Extender, installation is a breeze. It's a plug-and-play solution that requires no software or complicated configurations. Simply connect the HDMI transmitter to your video source and the receiver to your display or projector, and you're ready to enjoy wireless HDMI connectivity. |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | Long Range Wireless 4K Video Transmitter and Receiver Kit with Local Passthrough |
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10G005B1 |
| Product Model | Y10G005-B1 |
| Product Line | TrueReach |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 164.04 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wireless |
| Number of Output Devices Supported | 2 |
